Searching for How to release a tandem roller on top part of closet door

Quick Learner
Jul 12, 2022 5:36 pm

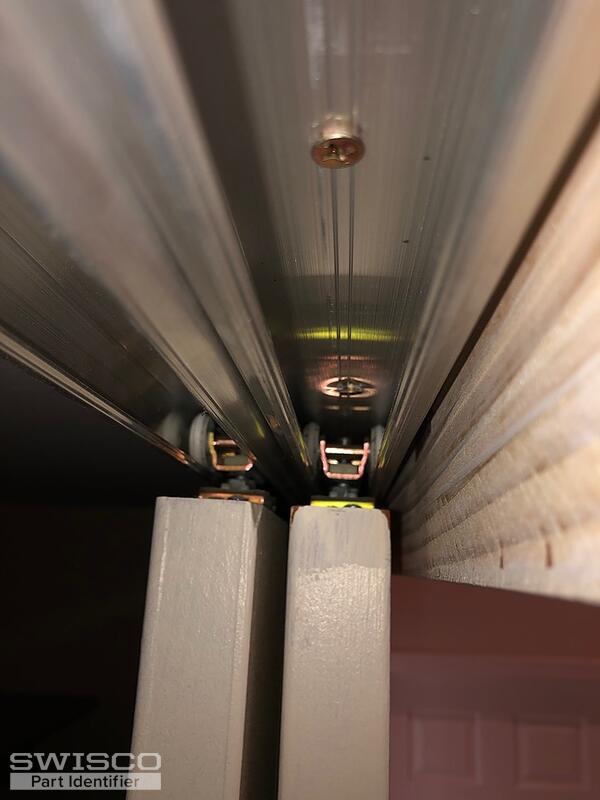

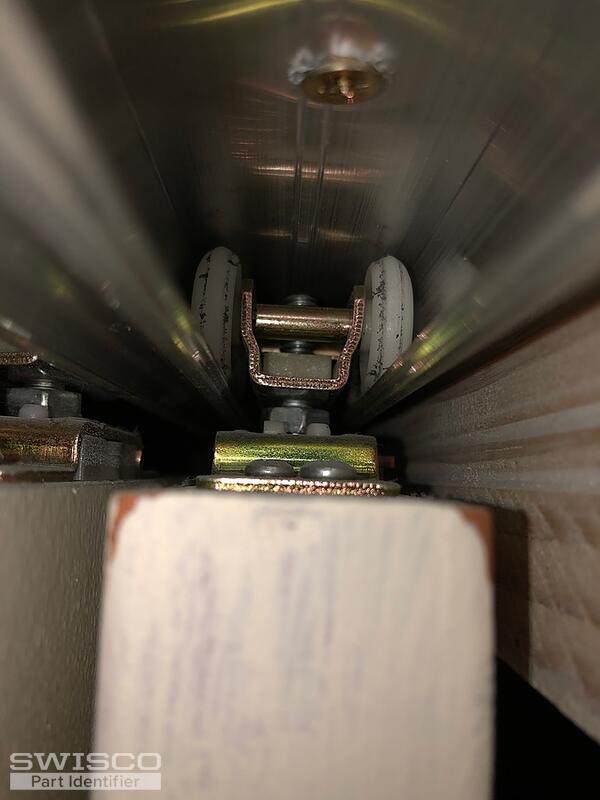

I have closet doors with tandem mounts. I need to remove these doors and cannot figure out how to release the mechanism to get the door off. Help.
CFF6C446-3316-4580-84E0-2A1950D8CCFA B3D111FD-11A5-4C24-8D53-82E204B4B282
2 user uploaded images
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
Jul 18, 2022 2:30 pm
SWISCO
EXPERT

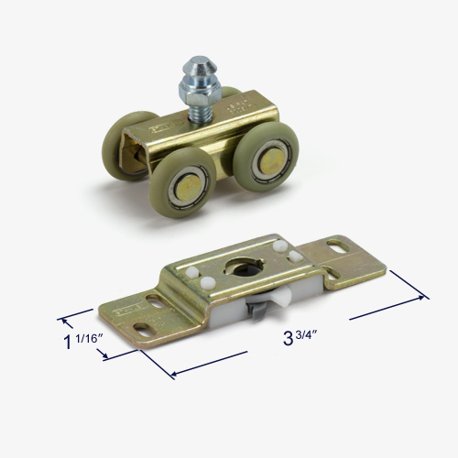

Hello! There is usually a lever on the side of the roller that releases the trolley from its carrier. You can see an example image below for a better idea of what I mean. The example product used here is our 23-176S, which may also be the very same part you have installed now.

Additional measurements for 23-176s Heavy duty hanger pair
Additional measurements for 23-176s Heavy duty hanger pair

+ Add a Comment
Products and resources found in this discussion
Heavy Duty Hanger Pair
Heavy Duty Hanger Pair
23-176S
$74.50
