Searching for Level 2950

Quick Learner

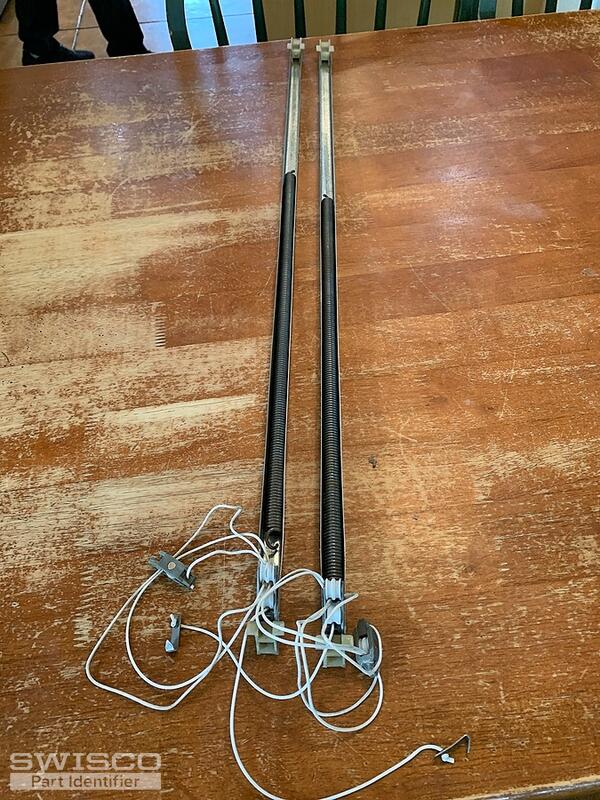

I need to order all the parts shown in photo please to fix. What exactly do I need? I think it say 2950 and weight is 10?
4 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

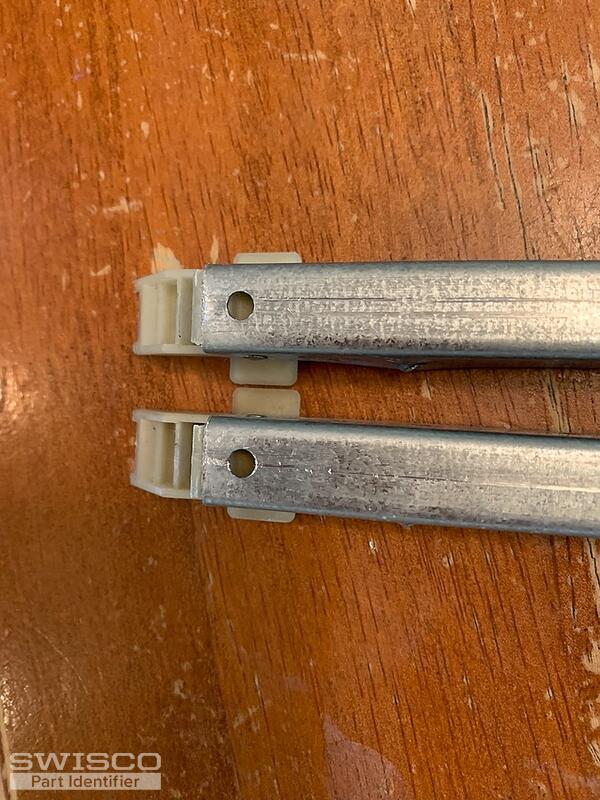

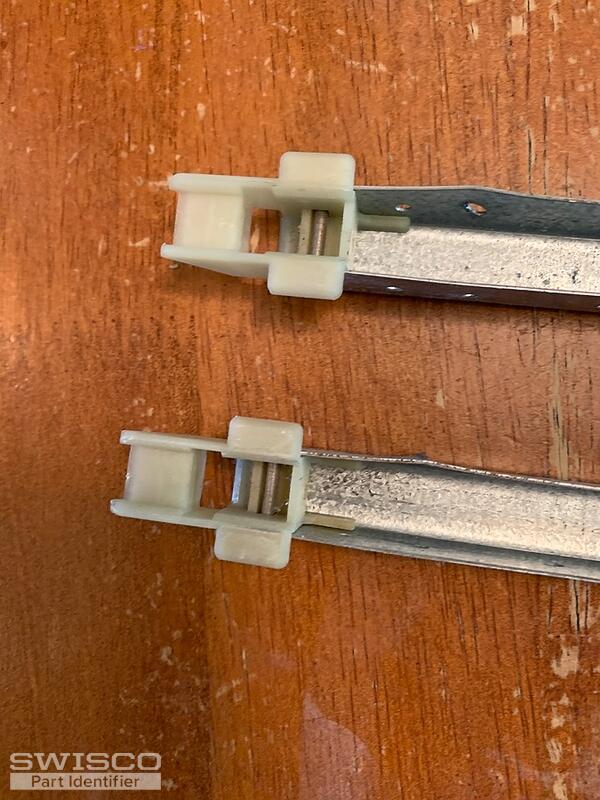

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2950.

Your stamp is 2950 which translates to a sash weighing 28 to 32 lbs. If you want to be certain, you can remove your sash and weigh it to choose the appropriate stamp option. There's a chart on the S380 and S385's product page that shows you which option you'll need based on the weight of your sash.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from FL

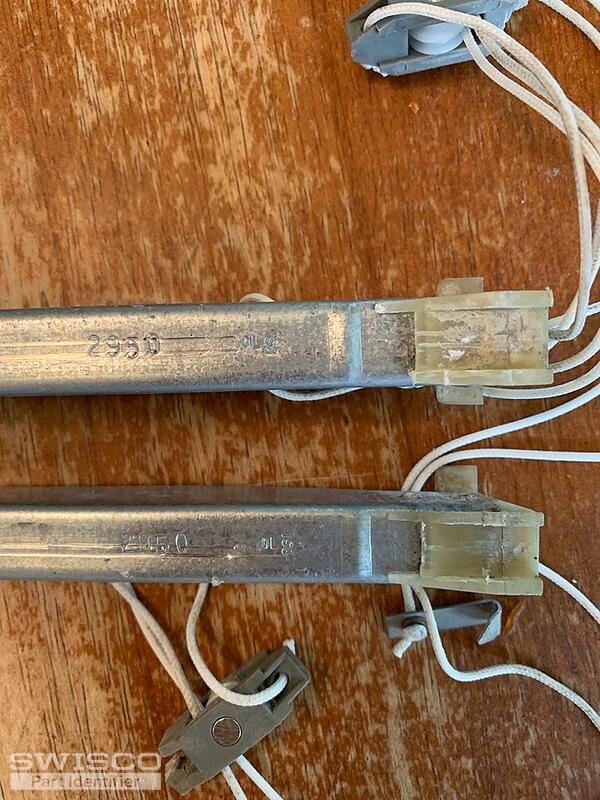

I can't weigh the sash. I have no scale. My stamp says 10, but under the chart for 2950 (which I have) it says weight 28-32 lbs. This ok to order this? My channel balance is 1" so I will be ordering S380. See photo for 10 stamp
Emily
Emily from SWISCO
SWISCO
Expert

Your stamp of 2950 represents the weight range your sash can hold. If you need the S380 channel balance then you'll choose the spring strength option of 2950.
