Searching for Patriot homes casement window crank

Quick Learner

Sep 8, 2019 5:35 pm

Hello , I?m in a patriot home and need a replacement casement window crank. Can you please help with this ? I need one for the left window crank . The inside retangle housing is about 4 inches by 1 inch .This window does not open anymore so I have also included pictures of the right window crank .
Pic 2 is what I need.
Thanks
Harpreet

2 user uploaded images

8 Replies

Bob from SWISCO

Sep 12, 2019 12:47 pm

HI Harpreet. I'm afraid I can't get a good enough look at your operator from this picture. Can we see the entire mechanism, including the link arm(s) that connect to the window, from a bird's eye perspective? From there, we'll try and narrow down possible replacements. Many thanks.

Home Owner

Sep 12, 2019 2:35 pm

Ok, I'll send more pics later today .

Home Owner

Sep 14, 2019 9:07 am

Hello again , hope the photo helps. It's for the right window. The left one is the problem one- doesn't open now .
Thanks again !

1 user uploaded image

Bob from SWISCO

Sep 16, 2019 9:10 am

It's still difficult to say what you have while it's still installed in the window. You could have something like our 39-028E and 39-027E, but you'll have to review our photos and dimensions to confirm.

Home Owner

Sep 16, 2019 10:56 am

Ok, thanks , I'll look those up.

Home Owner

Oct 6, 2019 10:39 pm

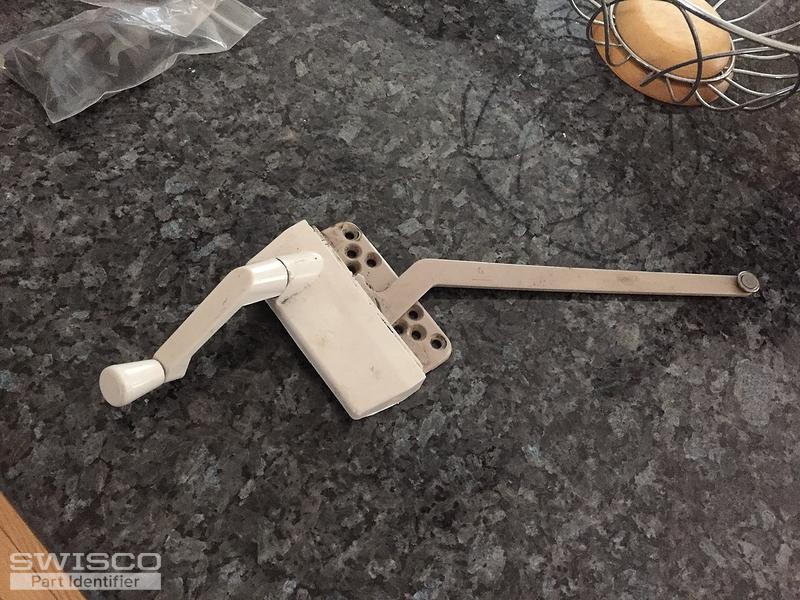

Sorry for the delay in getting back to you. This is what it looks like off the window. I'm in need of the gear mechanism in the crank case. The case measures 4" and the handle measures 8" for long section and 1.5 inch for short one.
Thanks
Harpreet

1 user uploaded image

Tom from SWISCO

Oct 7, 2019 7:43 am

I'm afraid the gear mechanism cannot be repaired or replaced. If the gears are stripped out you will need an all new operator.

In your case, I think our 39-366 and 39-365 would be better options. You'll note that Bob recommended our 39-028E and 39-027E before, but this new photo you just uploaded shows that the wheel bearing at the end of the arm is a different style than Bob's suggestions. You'll see that our 39-366 and 39-365 are much closer.
