Side Mount Drawer Slide

A home owner from Michigan says:

September 17, 2017

Hello,

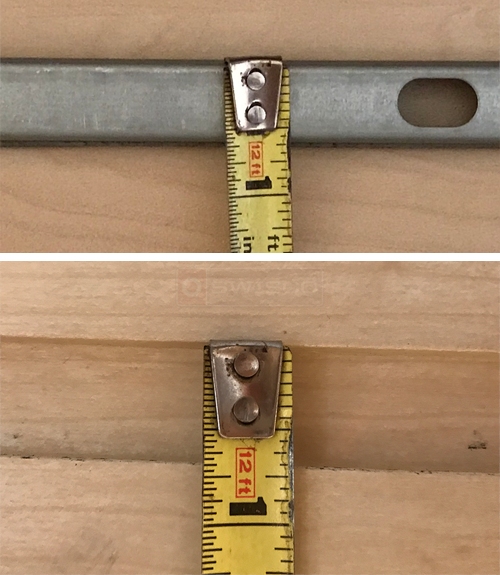

I am trying to find the correct part number to place an order for a side mount drawer slide - please refer to pictures - I am hoping the pictures with the measuring tape are clear enough for you to assist.

If you need any further information please let me know.

Thank you in advance.

A home owner from Michigan says:

September 18, 2017

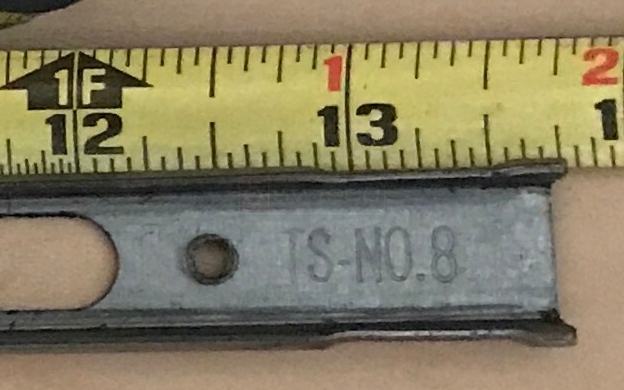

Sorry...I forgot to note that on the part it has a number : TS-NO.8

Dave Sr. from SWISCO responded:

September 21, 2017

Thanks for all the info. Take a look at both our 32-223 and 32-224 small side mount track. One is shorter and the other is longer than yours. We would like for you to see if you could use either one on drawer. Not sure we can get your exact size at 13-3/4" long. Get back to us and let us know what you think.

A quick learner from Michigan says:

September 21, 2017

Hi & thank you for your response. Yes, I did see those two part numbers & I was considering ordering one of both just to see the fit...however my biggest concern about those part numbers is not necessarily the length but the width. Do you feel the width of either of the two parts would fit the "notch" in the drawer by reading the measurement from my pictutes submitted?

Tom from SWISCO responded:

September 28, 2017

The width of our 32-223 is 11/16", as stated in its description. It looks like your width is 11/16", as well, unless I'm reading your tape wrong. As long as it's 11/16" you should be fine.

Small Side Mount Drawer Slide Pair, 12-3/16"

32-223

$5.80
