Side-load channel Balance sash support system

Question

Please identify the channel balance replacement system (left and right hand channels) and provide prices accordingly, as follows:

End to end measurement (channel only): 28"

Marking on back of channel next to lower fitting: 27C

Channel cross section measurement: .5" x .5" x.5"

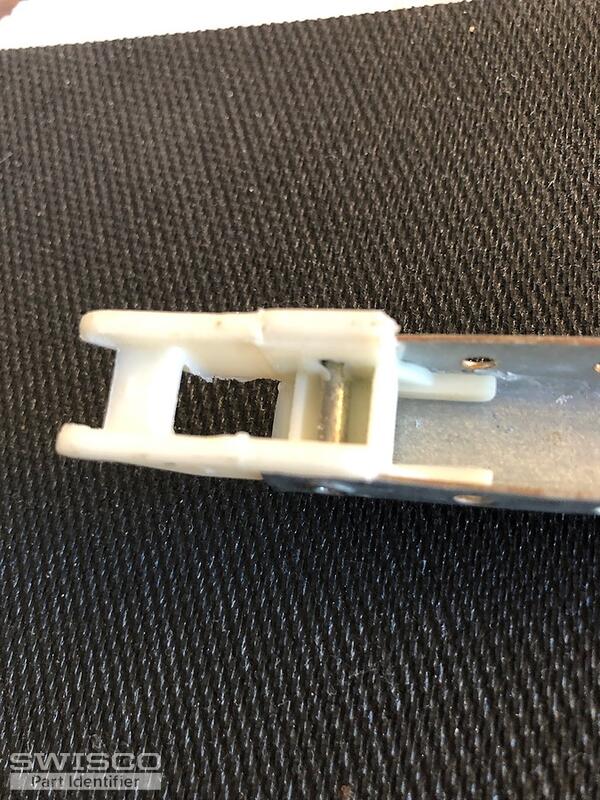

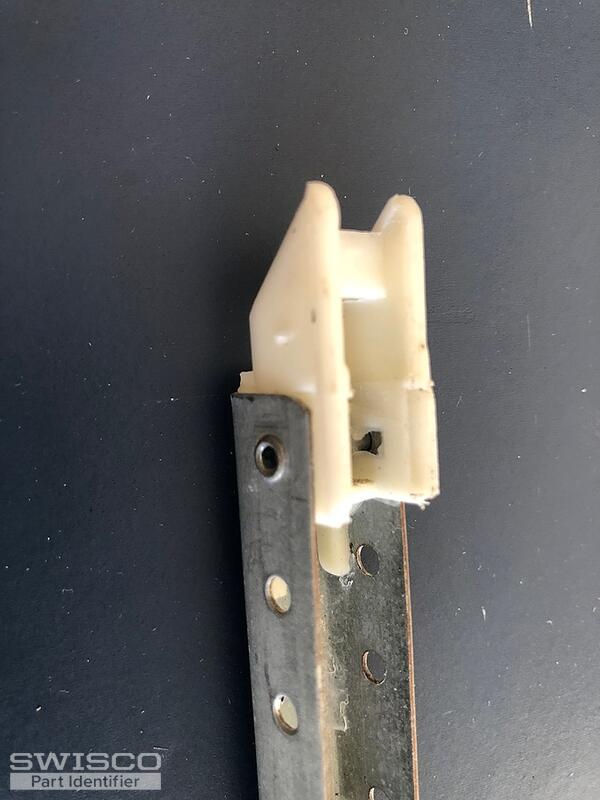

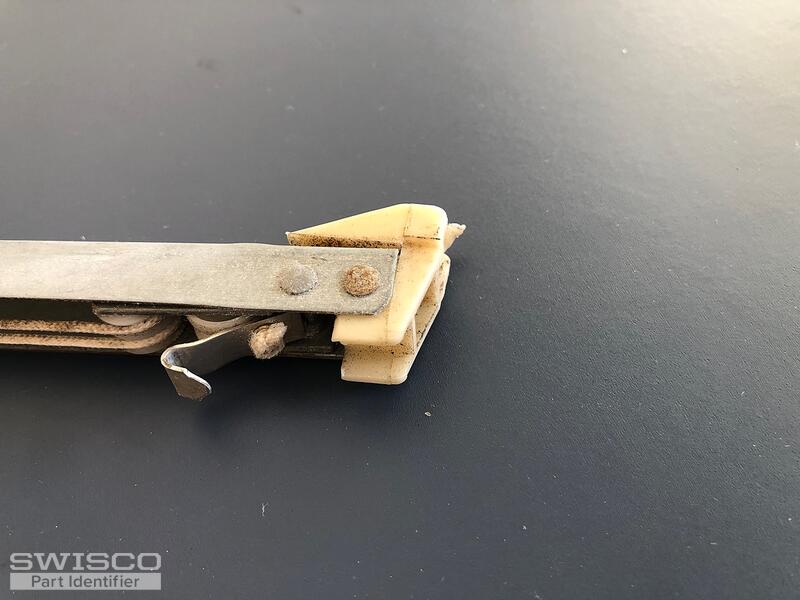

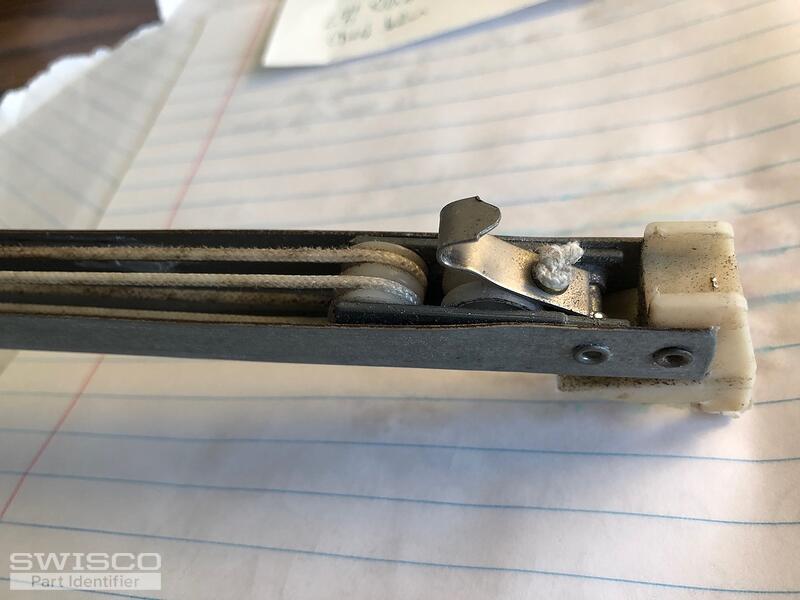

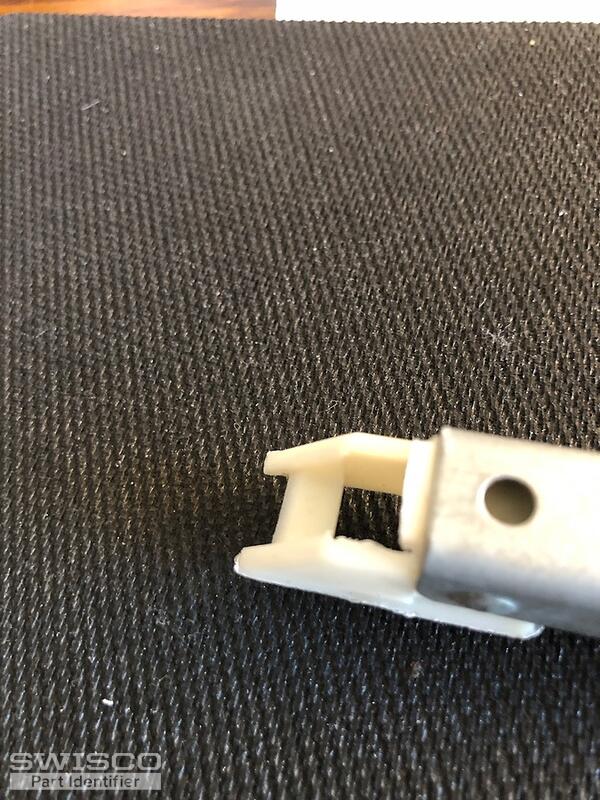

Please be advised that additional photos are available for your use. (The website limits to five photos). The upper fitting is the wingless type.

Roger

Tom · Accepted Answer

Thanks for your photos. Based on what I see here, you have either our S390-28 or S351-28, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S351 and S390 balance shoes.
