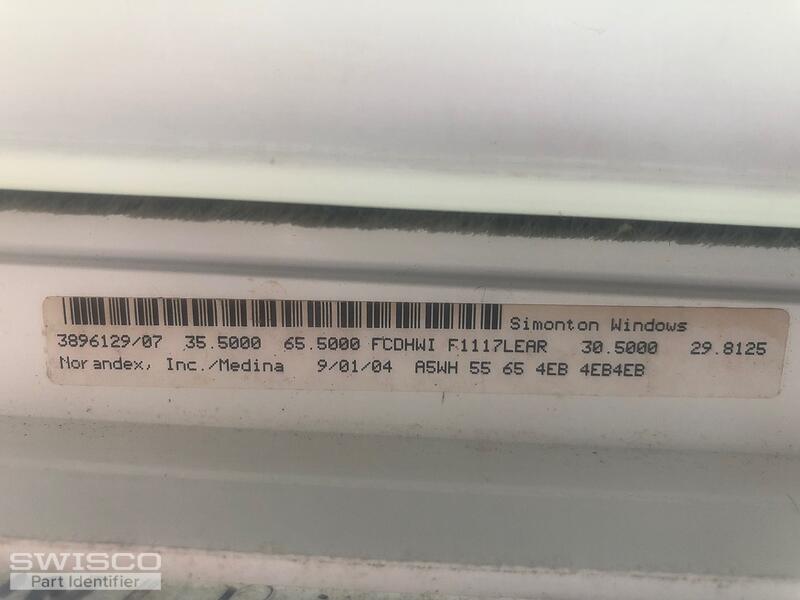

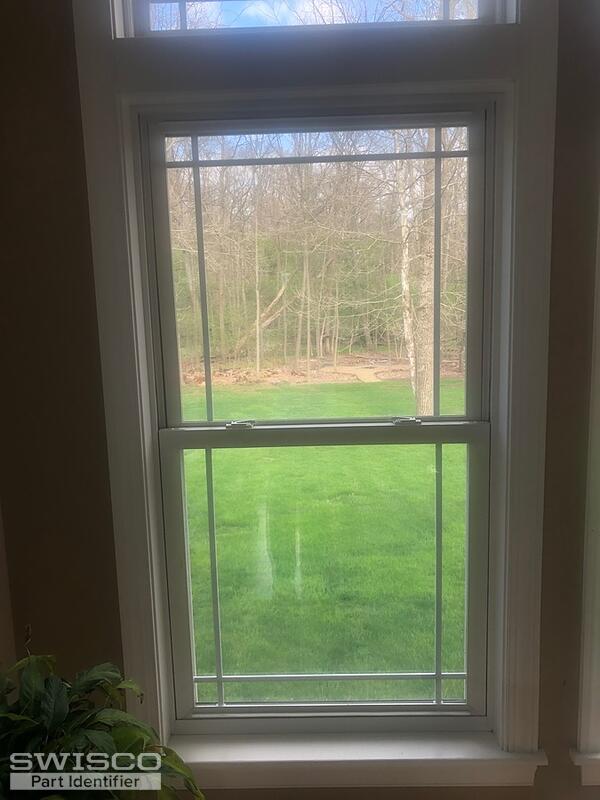

Simonton double hung balance parts

A quick learner from Medina, OH says:
Window is approx 29lbs.

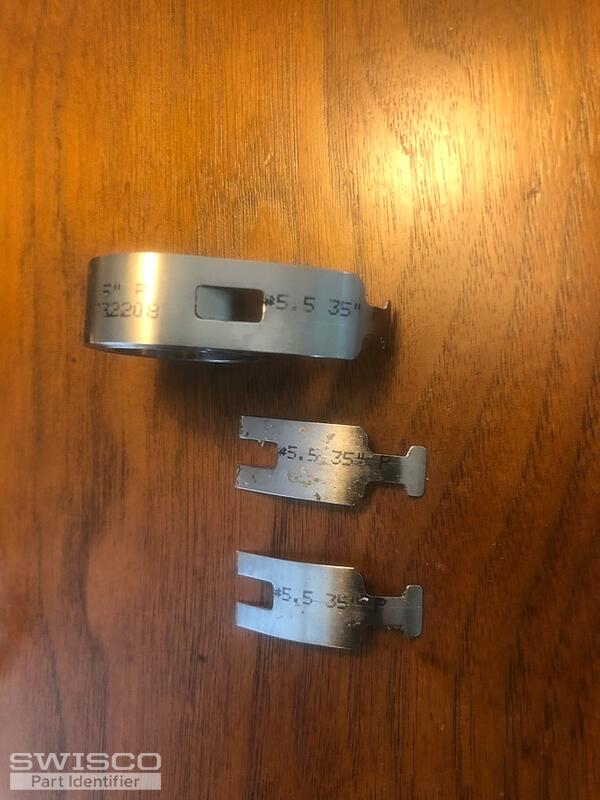

Coil spring - 3 springs each side - #5.5 5". P - 232208 - Aug 04
Coil spring cover - part # 801030

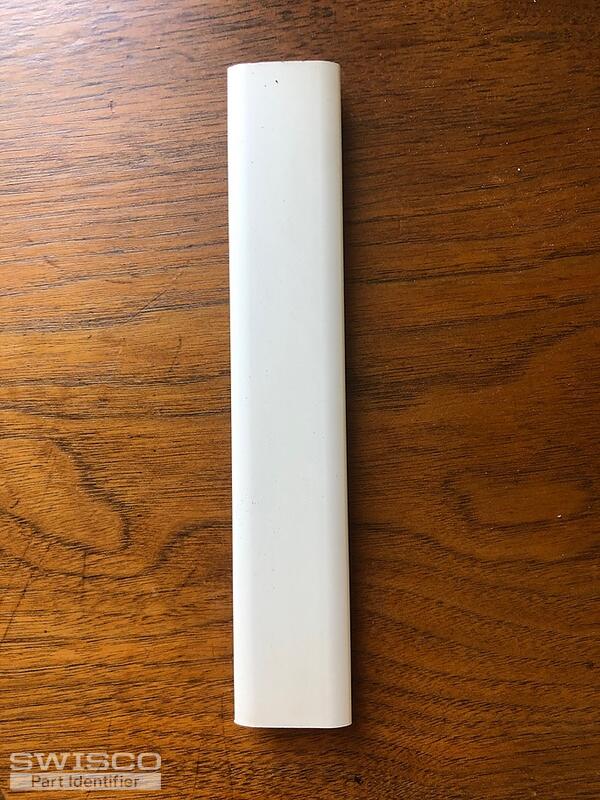

Pivot bar - 3" - seems to be 26-378 from your website?
Need help identifying part #'s to place order.
Thx
Thumbnail of the uploaded file named AD614E9C-D16E-41ED-B85B-848EF8D00E01.jpeg
Thumbnail of the uploaded file named 869BDBC1-D6B3-4B66-A823-EA12C52A030A.jpeg
Thumbnail of the uploaded file named 29F2DAED-4EDD-4343-87C5-2C1EE45B381F.jpeg
Thumbnail of the uploaded file named 7EA065DF-5C53-41E2-BEAC-E86C8136C46D.jpeg
Thumbnail of the uploaded file named 93F0A0AF-CC3A-4B91-A210-935949A346A2.jpeg
A quick learner from Medina, OH says:

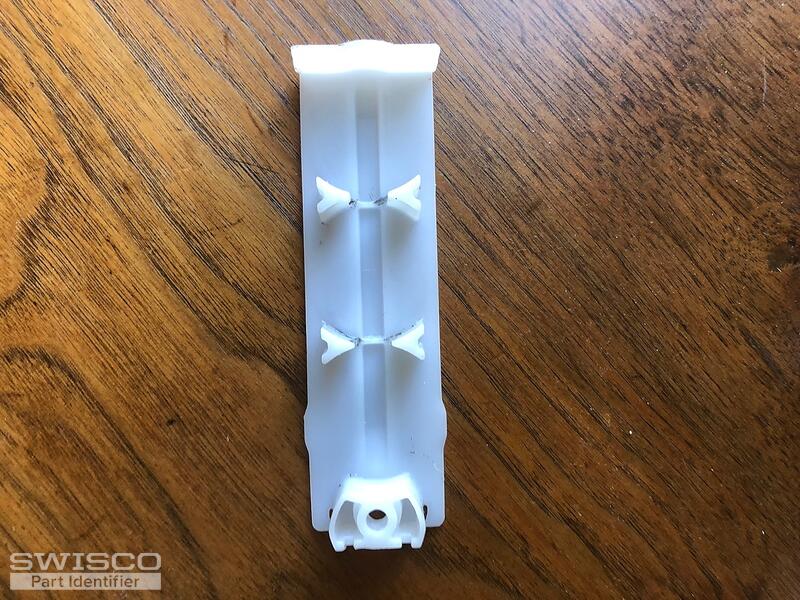

Part # for white blocker/stopper too.
Thumbnail of the uploaded file named 0E6C24D1-B298-4CF2-A274-37DA4307AA3C.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

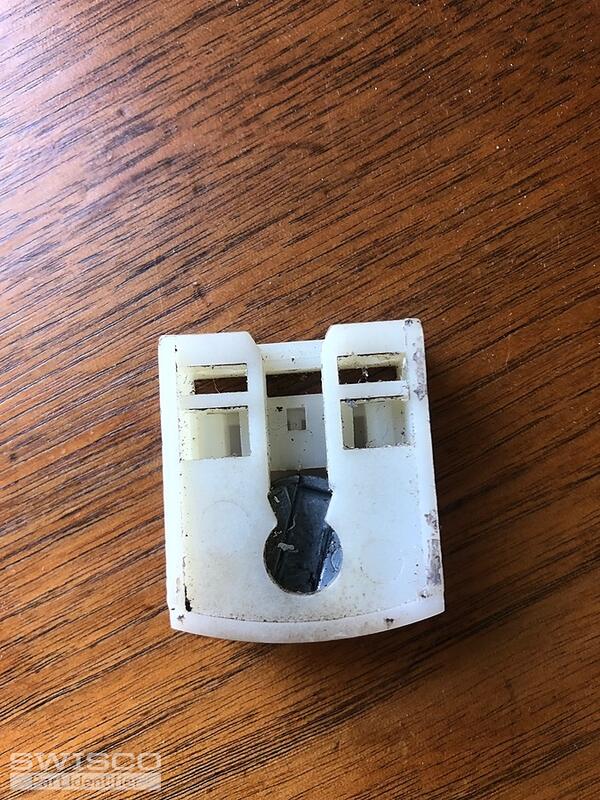

Your pivot shoe resembles the 15-199, which uses the Series 160 (15-150T support) or Series 165 (15-205 support) constant force coil springs, depending on the width of your original springs. The 26-378 pivot bar is commonly used with the 15-199 but you'll need to compare the style and dimensions to your original part.

As for the sash stop, the only option that we carry would be the 55-043. Take a look and if the dimensions don't match up to your part, you may want to check with a local hardware store to see if they can supply a suitable replacement. Thank you.
