Please help me identify a replacement roller for my patio door.
Housing Length: 3 1/8"
Housing Width: 3/4"
Housing Height: 1 1/8"
Wheel Diameter: Appears to be a bit smaller than 1 1/8".
Material: Metal
Door brand is unknown, vinyl and glass construction. Likely manufactured in mid 1960s to mid 1970s.
Thank you in advance for your help.
Sliding Door Rollers Replacement
Quick Learner from Los Angeles
Apr 7, 2025 4:36 pm

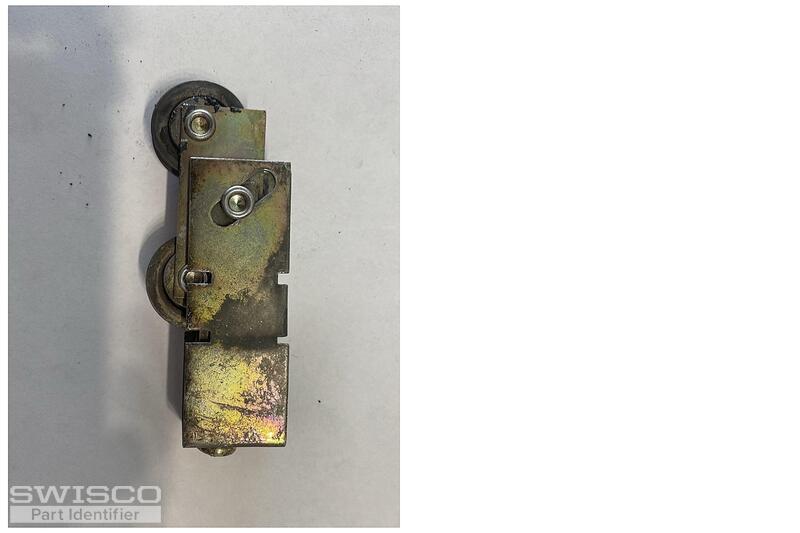

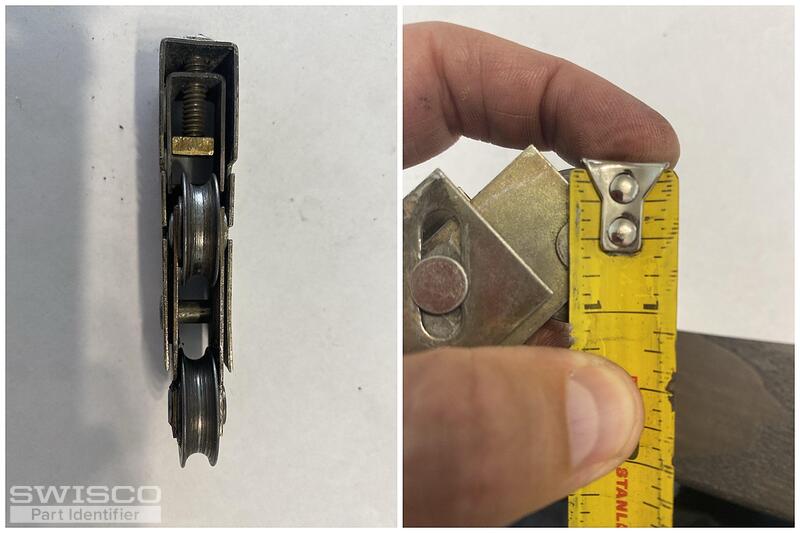

5 user uploaded images
4 Replies
Paul from SWISCO
Apr 10, 2025 12:04 pm
Thanks for reaching out to us! Your roller assembly looks very close to the 81-138. However, our height is 1" compared to your 1-1/8". It couldn't hurt to double-check that, just to be safe. Review the specifications and see what you think.
Alternate image for 81-138
Quick Learner from Los Angeles
Apr 10, 2025 1:10 pm
Thank you, Paul. That is what I was thinking too. The height measurement is accurate, but all of the other measurements match with the 81-138. I should be able to make it work, possibly with some minor modifications to the door. Thanks again for your help.
Paul from SWISCO
Apr 11, 2025 7:07 am
No problem! Our return policy can be found here just in case. Good luck with the repair!
