Snap bead

A quick learner from Wisconsin says:

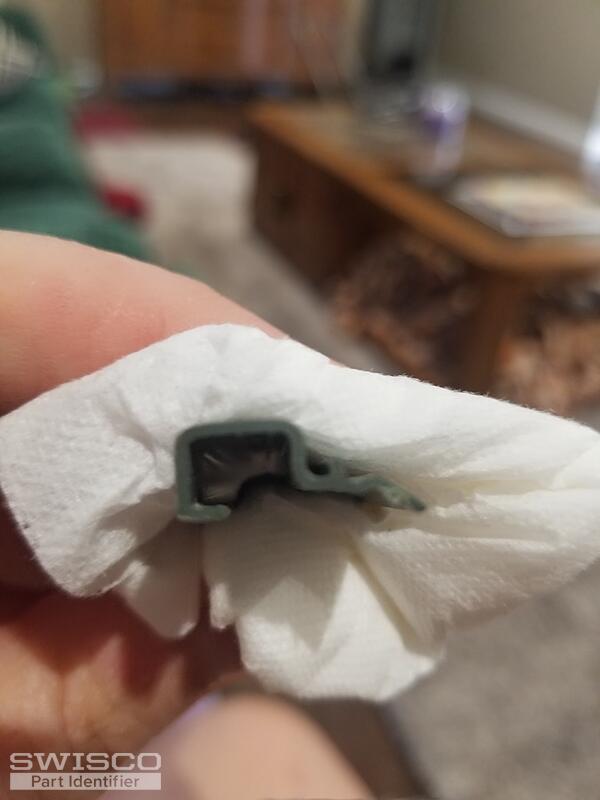

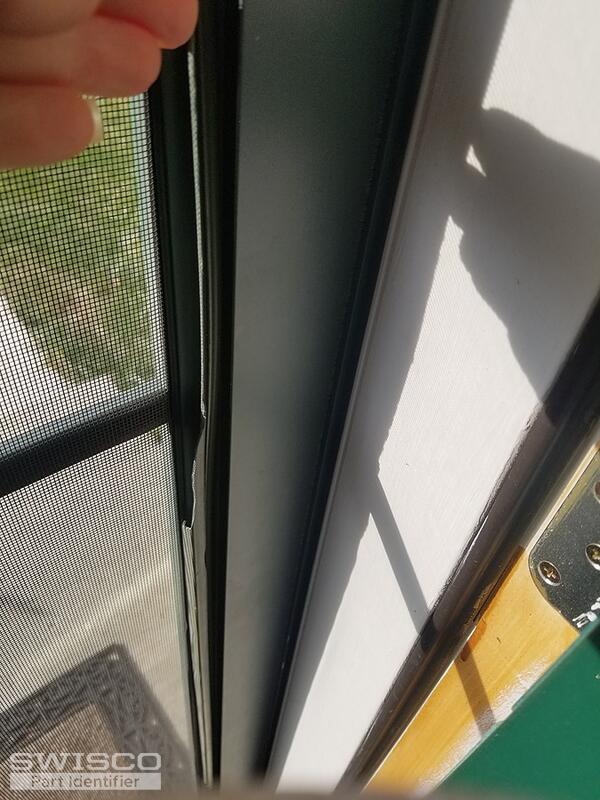

Unknown brand glass to screen storm door. Unknown snap bead need replacement.
Thumbnail of the uploaded file named 20211003_153821.jpg
Thumbnail of the uploaded file named 20211003_155249.jpg
Thumbnail of the uploaded file named 20211003_155252.jpg
Thumbnail of the uploaded file named 20211003_155300.jpg
Thumbnail of the uploaded file named 20211003_155339.jpg
Profile picture of Bob
Bob from SWISCO responded:

Unfortunately, these long retainer strips changed many styles over the years, and the companies that made them came and went pretty rapidly. This makes it next to impossible to keep up with replacements. Therefore we suggest considering something like our 70-180 storm door clip and drilling a hole for a 33-020 screw. This is how storm door companies did it once upon a time, and we still find it to be an effective and simple solution.

The 70-180 would need to be secured on the face of the door with a 33-020 screw. The end leg of the clip has a 1/2" reach and should press up against the screen or glass panel in the door holding it in place. I would suggest installing four or five on each side and maybe two at the top.
