TILT IN PIVOT LOCK SHOES

A home owner from North Carolina says:
February 18, 2018
Good afternoon.

I am trying to find the pivots shows from the pictures I added here.

The ones closest to these are your Product Code: 15-188

However, that shoe states a 1 1/4" width, and my shoe is definitely only 1" wide. All other dimensions are correct but width.

Please let me know if you have the part I am seeking.
User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
February 22, 2018
Thanks for the detailed information. I am afraid we do not have any pivot shoes like the 15-188 with the measurements you're looking for. However, our 15-167 should make for a good replacement. If you do decide to go with that shoe, you will need to also replace your sash pivot bar. We would like for you to send us photos of your pivot bar and provide measurements so that we can suggest an alternative.
A handy person from North Carolina says:
February 24, 2018
The pivot bar has the exact measurements of your Product Code: 26-352.

I've attached two pics.

Thank you!

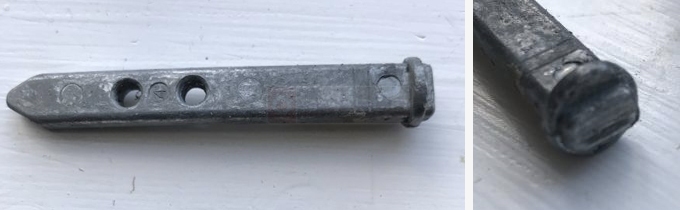

Pivot bar
Profile picture of Paul
Paul from SWISCO responded:
February 27, 2018
Your sash should have enough room to accept the 3" 26-241 tilt bar. The screw holes match the pivot bar you chose, but I think 26-241 will be better.
Pivot Lock Shoe
Pivot Lock Shoe
15-167
$2.57
Pivot Bar, 3"
Pivot Bar, 3"
26-241
$1.38
