Teardrop casement window crank

Quick Learner

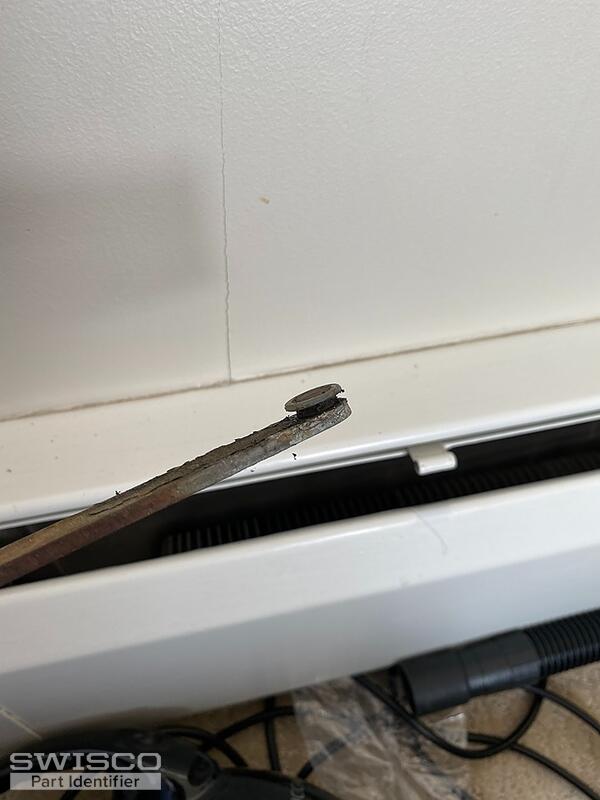

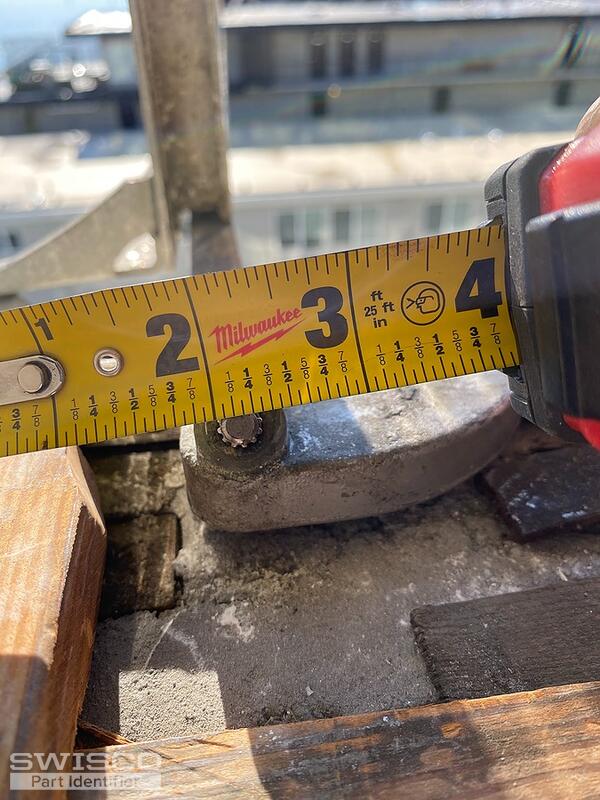

good day. Having trouble finding the existing crank I have. The reason I'm replacing is because having the window open the wind moves the window back and forth rather then the window keeping still. I'm thinking the pin has worn down. Also is there such thing as a crank extension ? My existing crank rubs on the decretive cover refer to picture thanks
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for reaching out to us, We don't sell an exact match for this operator but please allow us to look into it further. We'll reach out as soon as more information is available. Thank you!

Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

I'm not sure a new operator will help with the wind movement. Your window is old and all the parts and rivets on the window could be worn. With that being said, looking at your operator it appears the 39-002 operator seems to match up best with the handle location and gear arm. Also, this operator can use the 39-422 extension to get the handle off the sill. You might also want to replace the window track with the 39-504. Take a look at the specifications for these parts and see what you think.
