This is a 5/8 30 [inch spiral balance for a non tilt windo2 that has tilt end.

A handy person from Miami fl says:
November 18, 2021

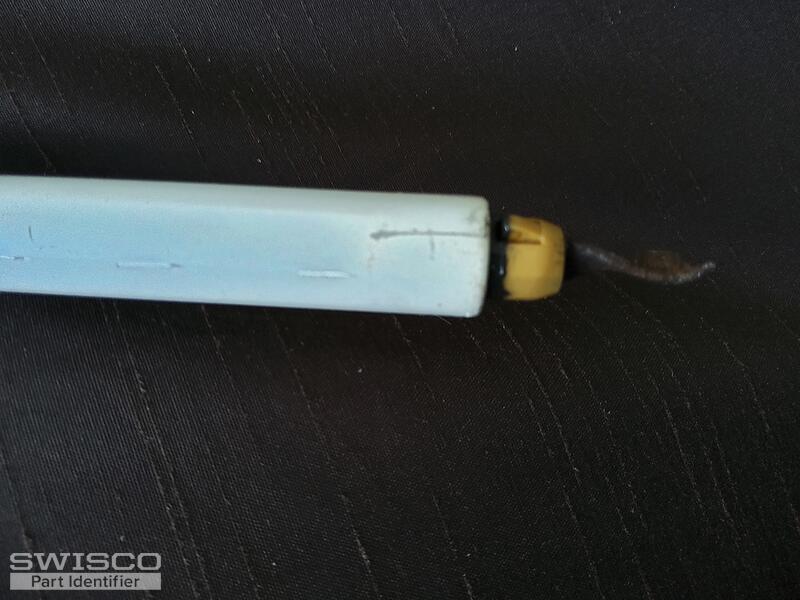

It is used with an impact window in miami that measures 42 x 34. It doesn't come out without major disassembly. What color does it look like to you?
I dont know the weight. I think uour s600 balance is what i need. Do you have any that come precharged? I am totally confus3d by instructions that saywind clockwise but based on from above or below view?
Thumbnail of the uploaded file named 20211118_141156.jpg
Profile picture of Tom
Tom from SWISCO responded:
November 23, 2021

That tip looks like it was originally yellow, but if your balance is 5/8" then that can't be possible since they never made that size with that color option. Triple check your tube diameter to be sure. If it is 5/8", then you will need to weigh your sash to confirm the best color option for the S600-30.

None of our tilt window spiral balances come pre-charged. The video below should be of some help to you.
