Hi
I want to make sure that the shoe I chose matches the one I need.
I think the matching shoe is 15-177. I attatched a screen grab.
can you please help me verify?
I measured the height 1.3"
The window frame shoe seat is 1.3" wide.

Take a look at the photos of the broken shoe and a rough sketch I made...

Any advice is welcome

4 user uploaded images

4 Replies

Casey from SWISCO

Sep 27, 2022 1:13 pm

Hello,

I agree that the 15-177 looks like a match to yours, though you should confirm that the dimensions match since 1.3" is a bit larger than the 1-1/4" width of the 15-177. The width and thickness are important details to make sure that the shoe will fit in your window jamb. Thanks for posting!

Handy Person from New York, USA

Oct 2, 2022 7:12 pm

Hi again

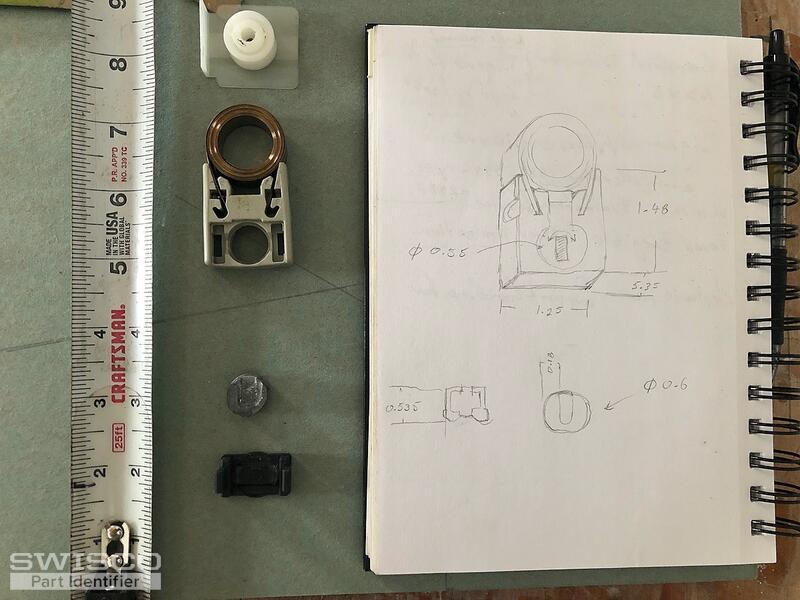

I attached photos of the shoe and a rough sketch with the dimensions of the shoe.

Hopefully that can be a guide to choose the right shoe.

Is it possible to get only the broken pivot bar receiver? (the one I am holding)

any advice is more than welcome.

Thanks for your attention...

1 user uploaded image

Casey from SWISCO

Oct 3, 2022 8:13 am

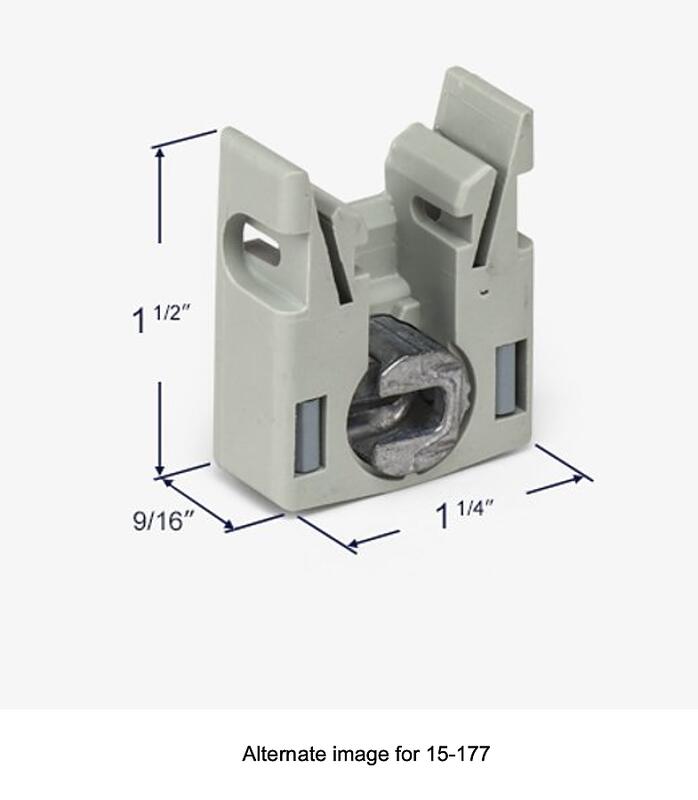

The 15-177 would be the best match for your pivot shoe but take note of the 9/16" thickness shown below. Unfortunately, the metal cam is not available separately.

Alternate image for 15-177
