Verification of Channel Balance Part

A quick learner from Virginia says:

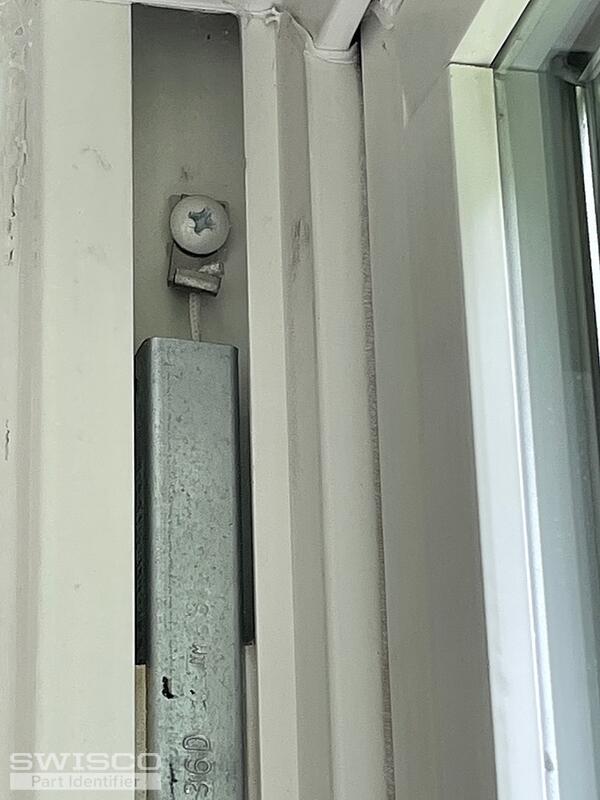

Hi. I have reviewed your CB parts and believe the S795-36 to be the correct part based on the 2 pictures I have attached. Could you please confirm this is the correct part? https://www.swisco.com/36-inch-series-795-sash-support-system/pd/Series-795-Channel-Balances/S795-36
Thumbnail of the uploaded file named E684725A-1275-4F86-9975-57E19516DC85.jpeg
Thumbnail of the uploaded file named F236DC87-32DF-4BE8-8604-39EB1B6BCD88.jpeg
A quick learner from Virginia says:
Thank you. How can I determine the correct size of the balance shoe? Parts 15-194, 15-195, 15-195B and 15-229 lock familiar. I can't tell the difference between open and closed cam, and need guidance on how to determine size.

Thanks,
Steve
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I agree that the S795-36 (36D) would be the correct replacement for the balance assembly shown in your photos.

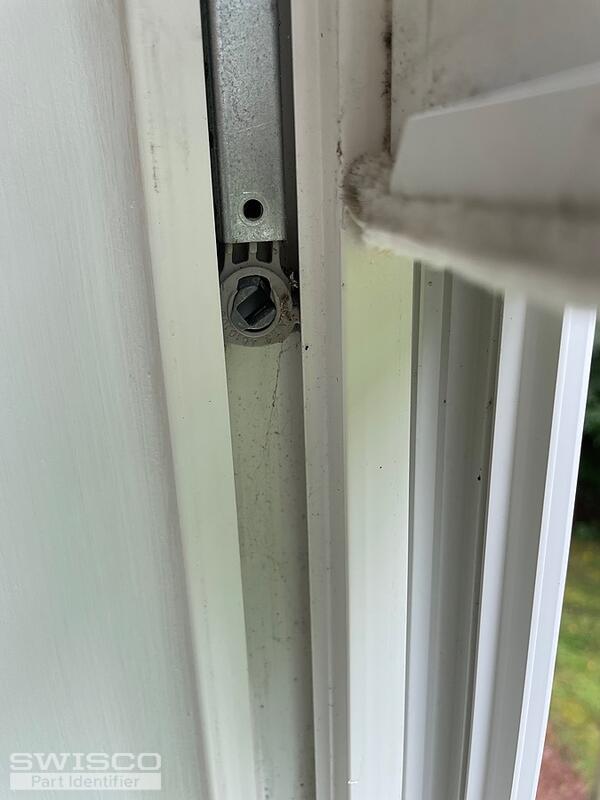

It's hard to be sure with the balance still installed but it looks like your metal can may be open, meaning that you can see through the center of the meal portion where the pivot bar installs. You'd also need to remove the balance to confirm that it measures 1-1/4" wide. If so, you'd need to purchase the 15-195B separately and follow the video below to attach them to the S795 balance assembly. Thank you!
