Vinyl window stop used in an Aluminum window

Quick Learner from Nj

Jun 16, 2023 6:04 pm

Please advise if this window stop is available.
Depth is about 2/16 which will go into the window to keep glass pushed in.

1 user uploaded image

9 Replies

Bob from SWISCO

Jun 17, 2023 11:52 pm

Thanks for writing in. We may be able to help replace this glazing bead, but I'd like to see a picture of its end profile. That cross-section view would help a ton in narrow down your options. We'll do our best to find what you need from there. Many thanks.

Quick Learner from Nj

Jun 20, 2023 9:37 am

Please see attached photo of how and where it is installed.

Please let me know if I need to send another pic.
Thanks

1 user uploaded image

Bob from SWISCO

Jun 20, 2023 11:04 am

I'm afraid seeing it installed won't help at this juncture. As mentioned in my previous response, we need a clear picture of the end profile. If you're unsure of what that means, the video below may be of some help.

Quick Learner from Nj

Jun 21, 2023 5:57 am

The end profile thickness is about 1/16. I had measured it before reinstall. Unfortunately, it is too brittle to remove again. I don't want to break remaining 3 window stops.
It is really flat on the thickness side of 1/16. Perhaps you can give me some choices and I can go from there.

Quick Learner from Nj

Jun 21, 2023 6:02 am

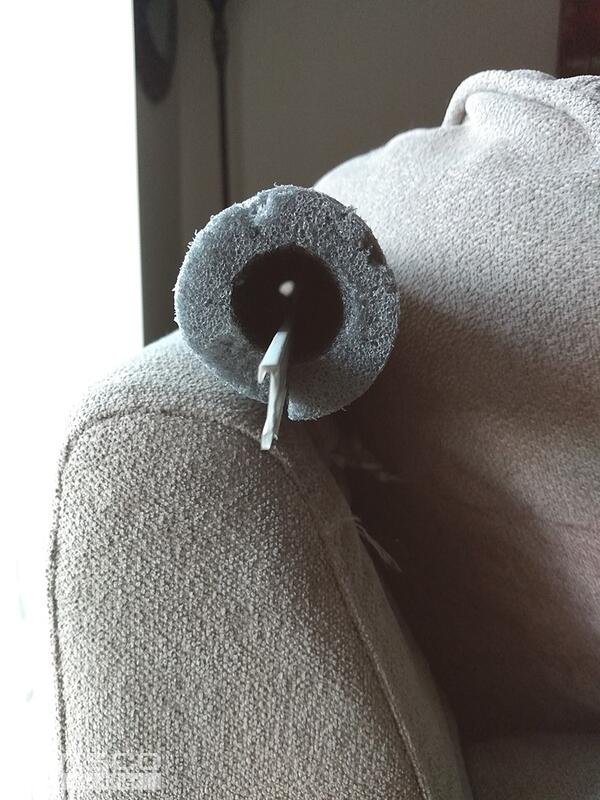

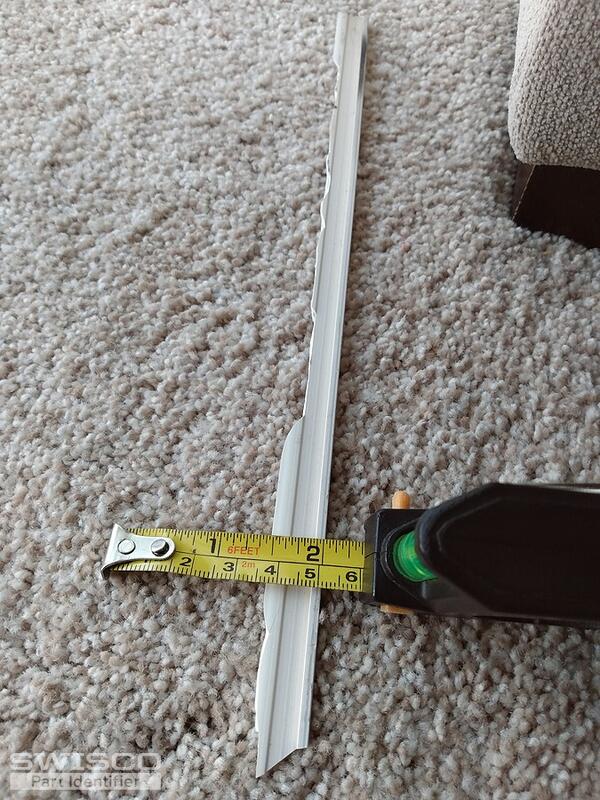

Photo of broken piece. Perhaps this is helpful.

In this pic, Top is 3/16

Bottom is 1/16.

Bottom 1/16 goes into the window.

4 user uploaded images

Bob from SWISCO

Jun 21, 2023 9:24 am

I'm afraid we don't sell anything that matches this, exactly. I would say our closest option is our 55-071, but this is far from a guarantee. Considering that this is an older aluminum window there is a good chance that your exact glazing simply isn't made anymore.

Review our specs for the 55-071 and see if you think it's worth a shot. I can't tell you with confidence that it will work, but I don't think we have anything better.

Profile diagram of the Acorn snap-in.

Quick Learner from Nj

Jun 21, 2023 10:10 am

Thanks I'll take a look.

Bob from SWISCO

Jun 21, 2023 11:44 am

Sounds good. Please feel to reach out if you had any other questions.
