Hello,

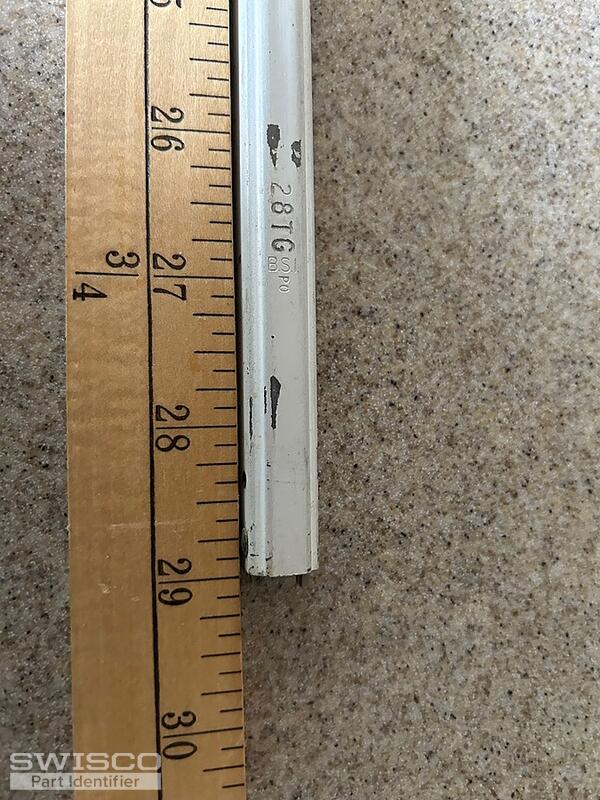

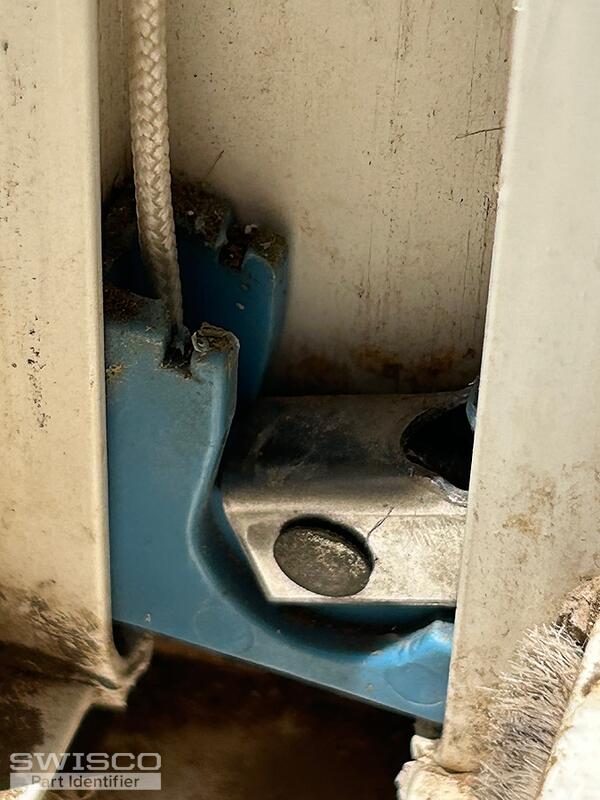

We'd be happy to look into this for you but we would need to see your balance shoe removed from the window to confirm the correct replacement. Also, please confirm the exact length of your metal balance channel, not including the shoe. Thank you!
Sure, have you watched the video included in our last response? The process of removing the balance shoe is shown at 49 seconds. Hopefully, that will help walk you through the process of removing the balance shoe.

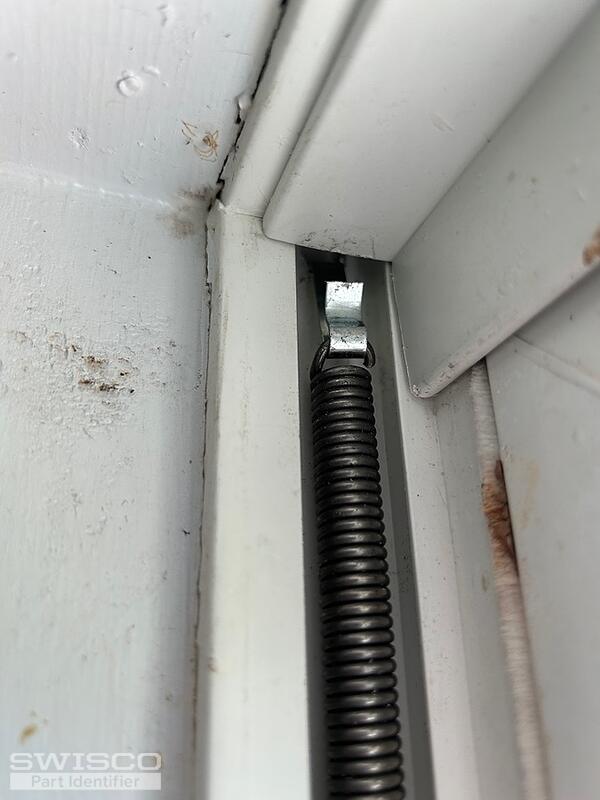

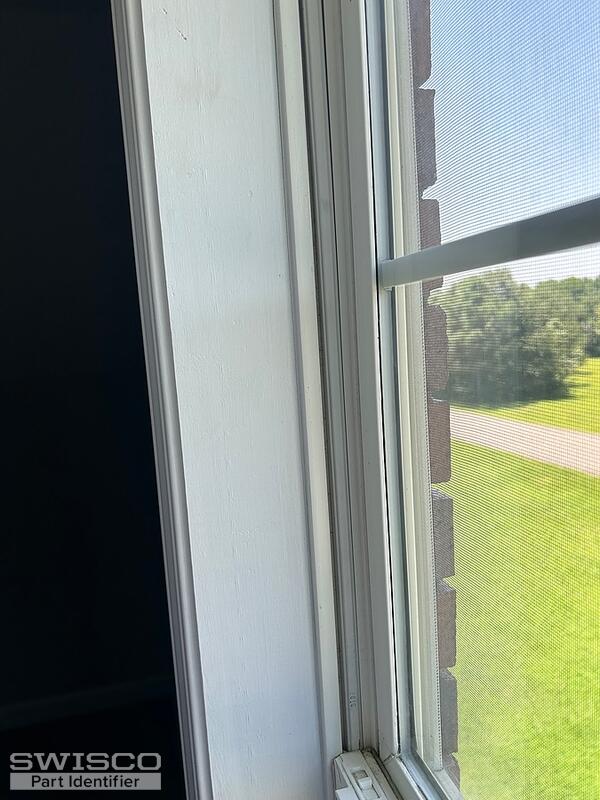

Unfortunately, there is no place to put a cutout in this type of jamb liner that would not interfere with the functionality of the window. For this type of balance assembly, it would be necessary to remove the entire jamb liner from the window to remove the shoe from the top. If you do not feel confident tackling this part of the project, we recommend enlisting the help of a professional. There are some older styles that are difficult to remove but, in our experience, the jamb liners that hold these types of balances should be able to be removed for replacement purposes.

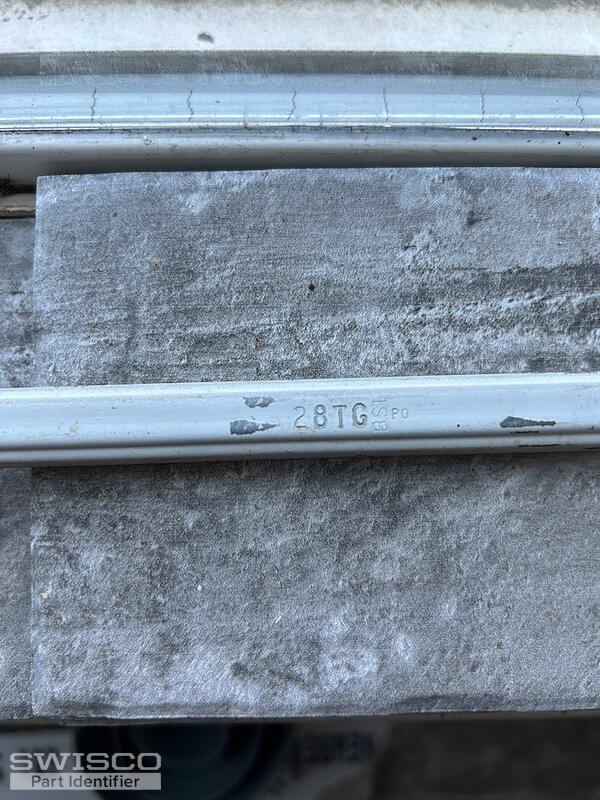

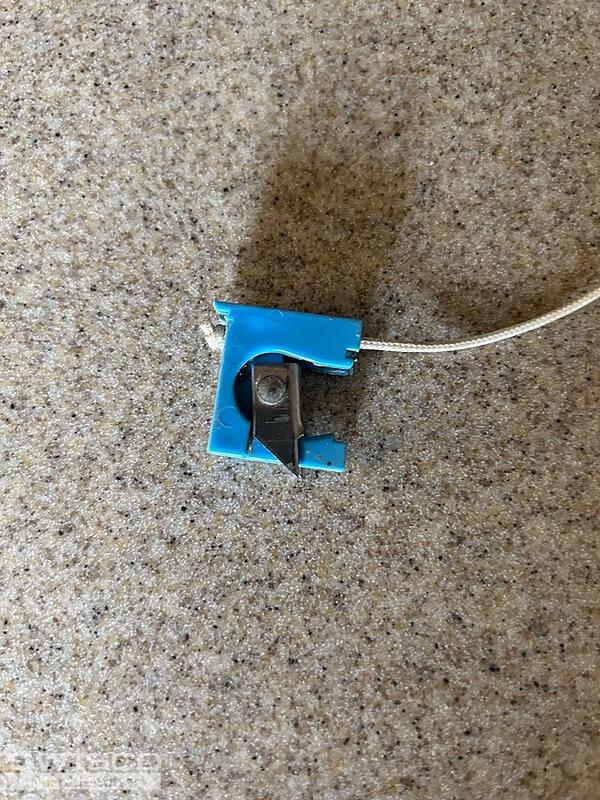

Great, your balance fitting resembles the 15-233 sown below, which we can attach to the S751-29 channel balance through a custom order. Would you like to purchase 16 balances for all eight of your windows? I would recommend making sure that all of the window balances have the same 28TG stamp code.

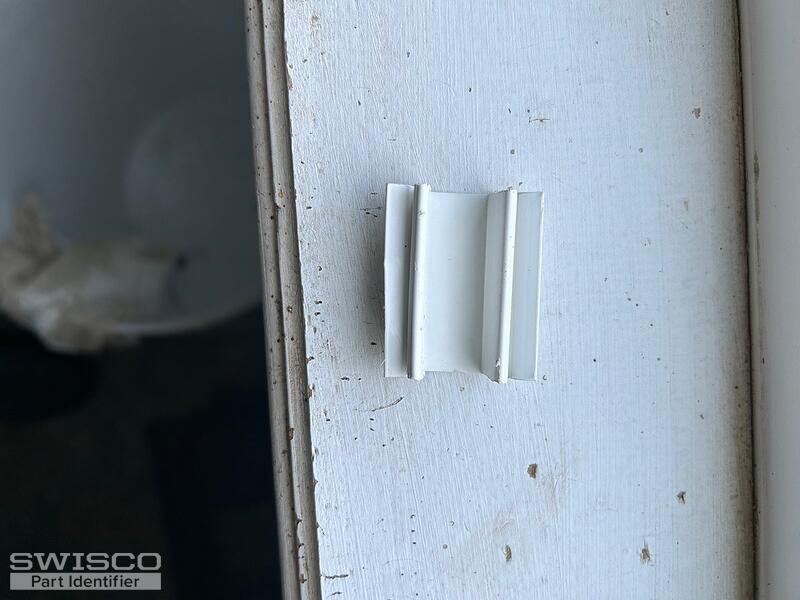

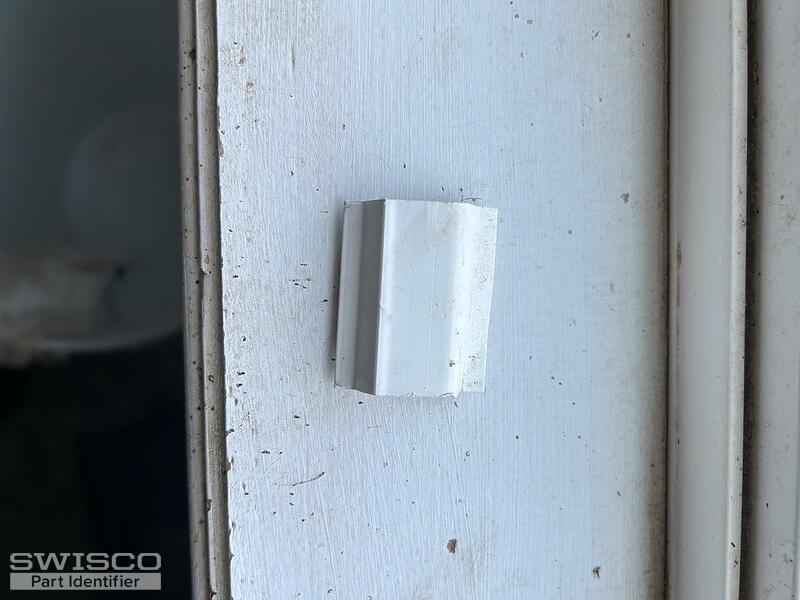

As for your sash stop, unfortunately, we do not carry an exact replacement for yours. The only stop that we carry is the 55-043 shown below. If the dimensions do not match your part, I would recommend checking with local hardware stores that may offer a closer match.
Great, we just sent over an order link and price quote for the balances you requested. Please note that the order link does not come with the 19-029 s-clips but you can add them to your order. You'll also be given multiple shipping options to choose from at checkout. Take a look and let us know if you need anything else. Thank you!

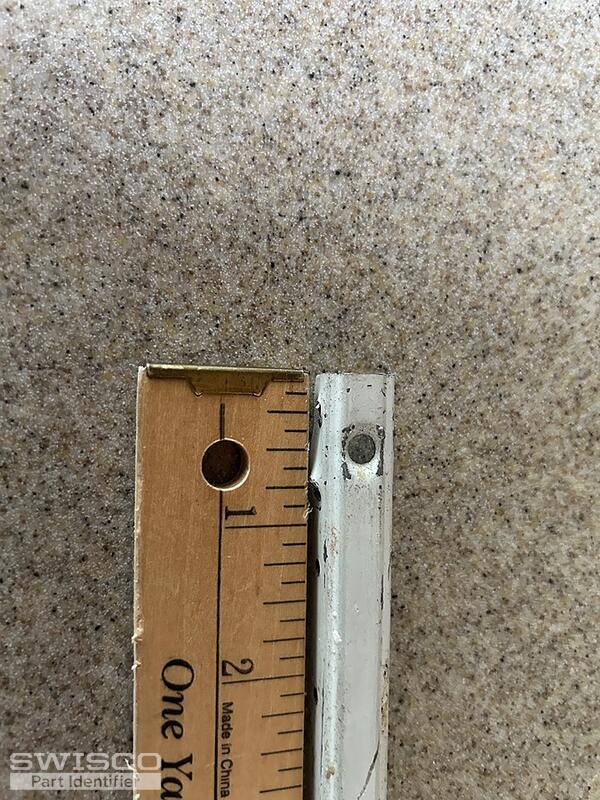

Good catch, that would be a problem. We sometimes come across a version of this balance with a smaller channel. You can see the exact dimensions below. If this is what you need, we'd be happy to send you a new order link but we would need to know the exact weight of the window sash since the 28TG stamp option does not correlate to the narrower version of this balance. Well also need to confirm if the balance had a rivet in the top or second hole to accommodate the S-clip used to attach the top of your balance to the window channel.
