39" long (length of just the balance, not including connections).
9/16" wide and 9/16" deep.

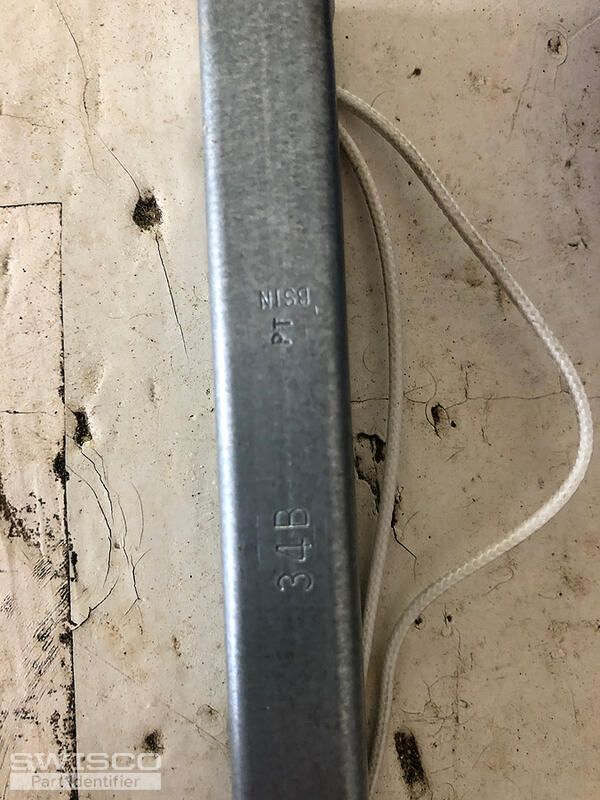

Stamped on part: 34B, PD, BSIN

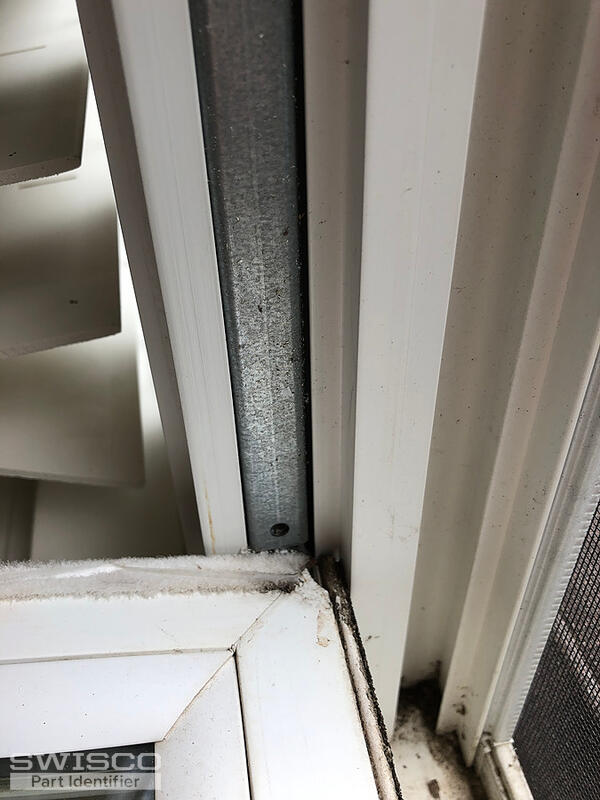

Total window height is 70.5"

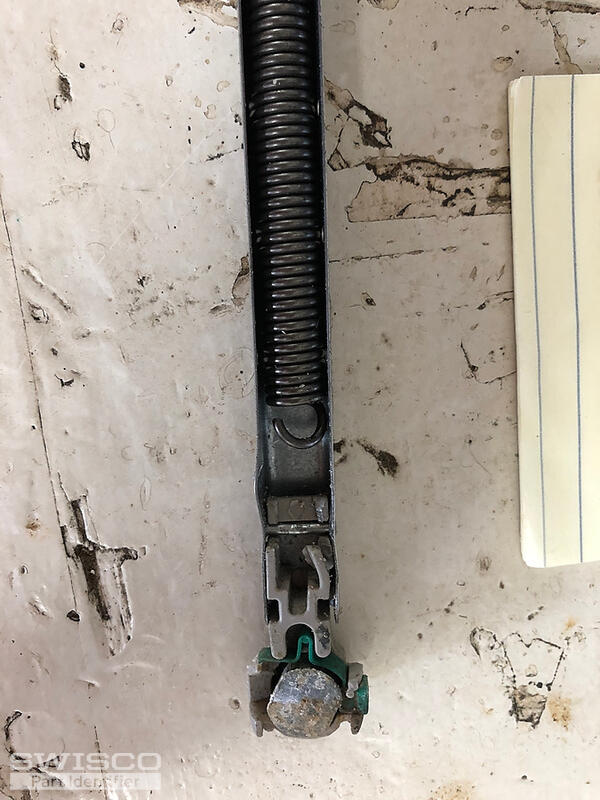

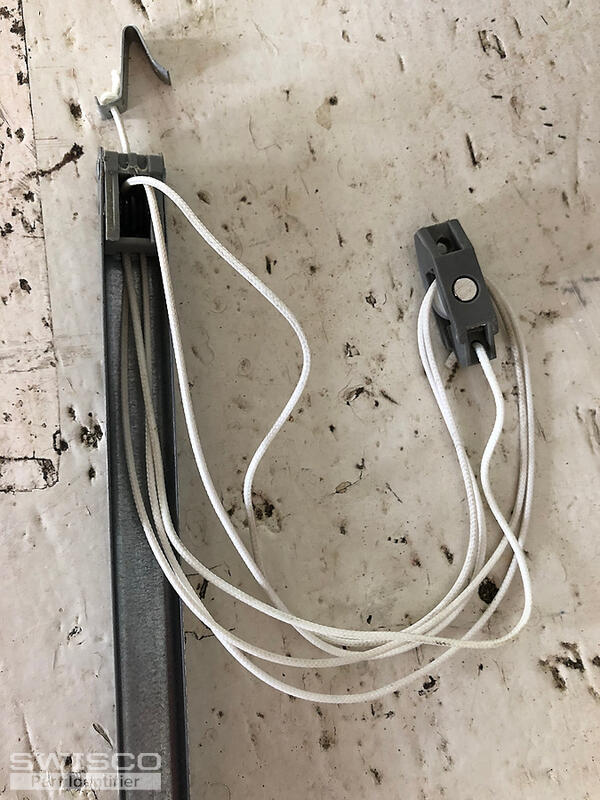

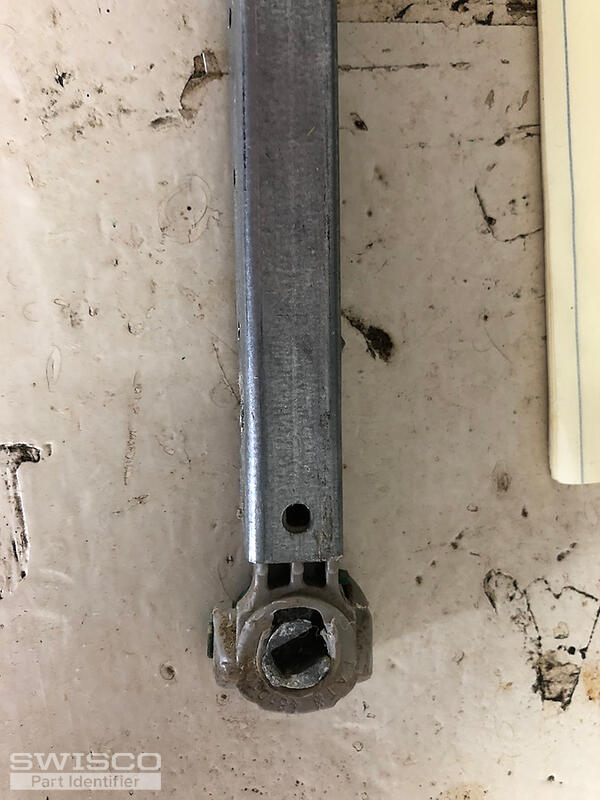

Window Balance
Home Owner from North Carolina
May 16, 2021 8:32 pm
5 user uploaded images
2 Replies
Tom from SWISCO
May 19, 2021 2:30 pm
We can supply this balance, but it has to be a custom order due to its configuration. Before we go any further, though, I'd like you to confirm a few details.
First, can you double check the length of the metal channel? Based on your stamp it should be just 34", not 39".
Can you also confirm how many you need?
I think the balance you'll end up needing is something like our S795-34, but with the bottom attachment swapped out for our 15-194 and the top attachment swapped out for our 15-198 hook.
