Window Balancers

Quick Learner from phoenixbille PA

Hello, think I contacted you in fall, but it got cold so didn't go further. Have windows needing balancers: two sizes. Please see attached photos. Shorter unit stamped "16 A". Longer stamped "2210 BSI BP". Used to order these from hardware stores, but most are gone or don't know what I mean. I appreciate any help you can give me so I can get some before ones I have break. Thank you, Rebecca

2 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

We'd be happy to help, Rebecca. The 23" balance looks like an S370-23. For a stamp option, choose 2210. The 17" balances is a bit trickier. I don't recognize the top fitting or attachment and suspect it might be damaged. Could you check the other balance from this window, or from an identical window in the house? I suspect most likely that the top fitting does have wings, and therefore this is also an S370-17, stamped 1610. But please confirm to be certain. Let us know what you find.

Home Owner from Phoenixbille PA

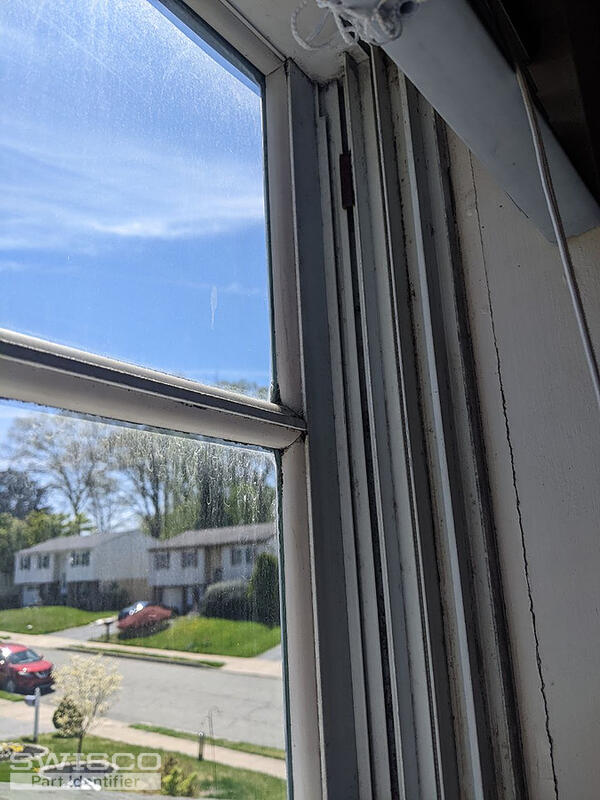

Hi, I appreciate your quick response. I just took the smaller bathroom window apart to take photos. Now I can't get the liftable window out, cannot close it completely, and am afraid to force it - probably due to needing the balancers. I don't have any more. My son will have to help me with it.

I always kept spares; but as I mentioned, I have been unable to get them. The kitchen window is the other smaller one, but I am afraid to do anything with that as I might not be able to close it or secure it.

The windows are metal with the storm windows on the inside, the part that raises is behind them, with the screen on the outside of the unit. Is it possible to still get windows like that? I don't have central air in the house so need functional windows. Probably need new windows but am unable to do that.

The balance pieces are just like the photos/videos you forwarded. There is the clip in the window, as in the attached photos, to lever out from the frame to remove the liftable window.

When researching the parts on line, sites said to measure only the metal part, not including the plastic wings, so that is how I measured.

Thanks, Rebecca

2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

I have honestly never seen this kind of balance set up before. Are you sure this is the same kind of balance as what you showed me back on the 9th? This appears to be a different configuration. Instead of a channel balance assembly that hooks into the track, I just see a bare spring directly installed in the track itself.

All I can say for sure is that this is a very old window. If you are sure that it's the same kind of balance as what you showed me already, then the same principle of identification would apply: we need to see its nylon fittings, stamp, and get the length of the metal channel to verify the Series.

Home Owner from Phoenixbille PA

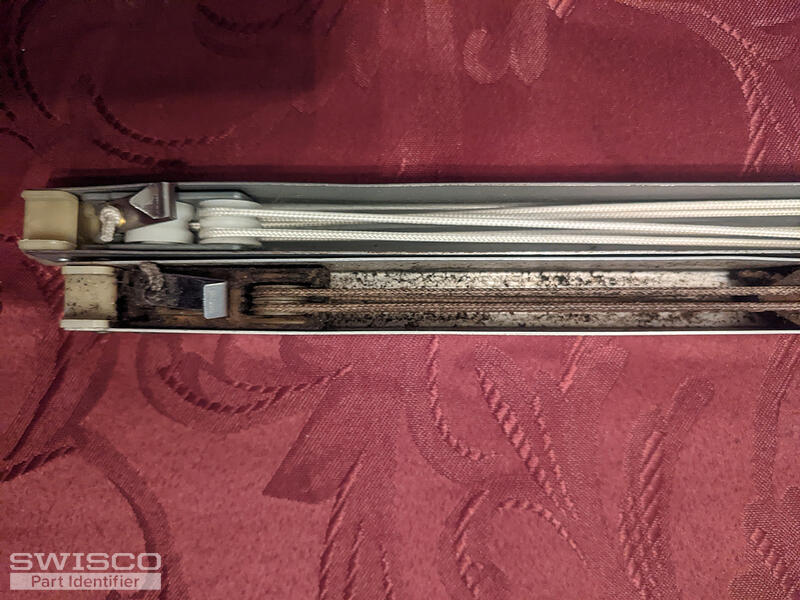

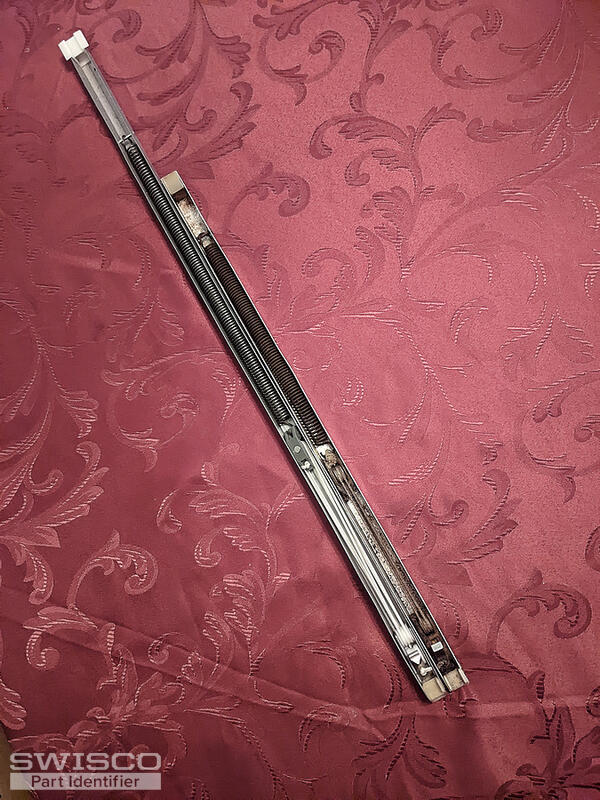

Hi, I am sending two photos of the reverse of the balancers that shows more detail. All house windows are the same; installed when the house was built. The two balancers are the

same except for the hooks at the bottom of the spring: one hook is pointed, the other is flat. (They may have been ordered from different companies when I ordered in the past.) The longer one is intact as it is new and unused. The shorter one was used and the top wings have broken off.

If Swisco is unable to help, is there anyone else you can recommend who might carry them?

I really appreciate your assistance with this.

Thanks, Rebecca

2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Well, the good news is that these look like typical balances. If you're saying that these came out of the window you showed me pictures of in your previous post, then I suppose you should be okay using our hardware.

I was just taken aback by the design of the window itself. It is not a design I've ever encountered before.

Assuming the wings broke off the top fitting on the older balance, then I still feel confident that our Series 370 is a good option to consider.
