Hello.
Here my windows dimensions:
window 1 day light opening of glass dimensions: W=43in1/4, H=27in, diagonal=50in7/8. Channel balance L= 28in1/2, series=2840D
window 2 day light opening of glass dimensions: W=25in1/4, H=24in1/4, diagonal=34in3/4. Channel balance L=26in, series=2630C
Window Balances
Quick Learner from Central Valley, NY 10917
Oct 14, 2022 9:29 pm

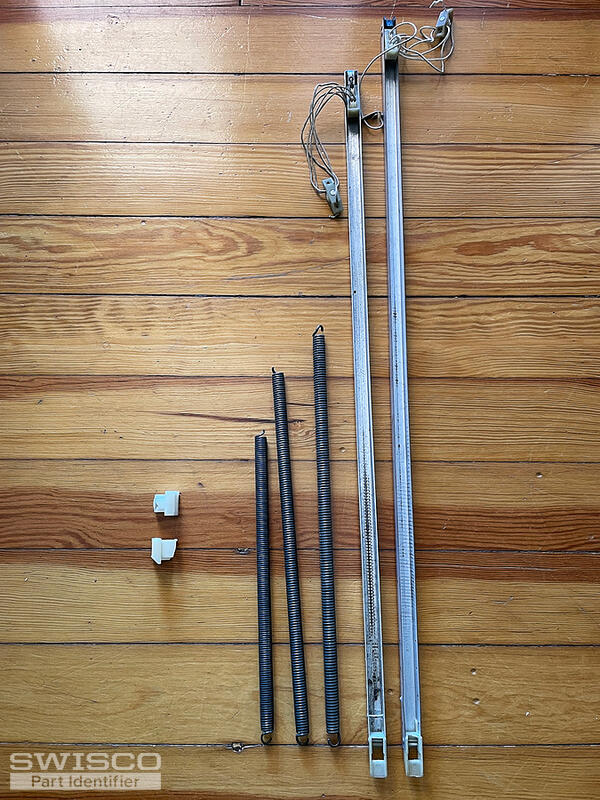

1 user uploaded image
4 Replies
Tom from SWISCO
Oct 19, 2022 3:06 pm
It's tough to tell what you have based on this photo, but it looks like you might have either our Series 351 or Series 390, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
Comparison of the S351 and S390 balance shoes.
Quick Learner from Central Valley, NY 10917
Oct 28, 2022 9:20 am
It looks like 1 1/8
Tom from SWISCO
Oct 31, 2022 8:07 am
Great! That would be our Series 390, then. You can see a full list of available lengths listed on its store page. Please let me know if you had any questions and I would be happy to assist you.
