Window Sash Balance and Break replacement

Quick Learner from Martinez, GA, USA

Mar 17, 2022 1:14 pm

Need to replace the balance in one of my windows. It is very hard to raise and lower. The model number of the window is 0201. I got replacement windows from Associated Materials. The window dimension is 30 1/02 x 34 1/04.

1 user uploaded image

6 Replies

Tom from SWISCO

Mar 18, 2022 9:50 am

Hello! Looks like you have a coil type balance. We sell a ton of these, but I can't quite make out the hardware in your photo. It's a little unclear.

Before I recommend anything, would it be possible to see a clearer photo of your assembly? I specifically need to see the pivot shoe, which is the most important detail. Knowing the width of your coil band would also be a big help. Thanks!

Quick Learner from Martinez, GA, USA

Mar 18, 2022 11:23 am

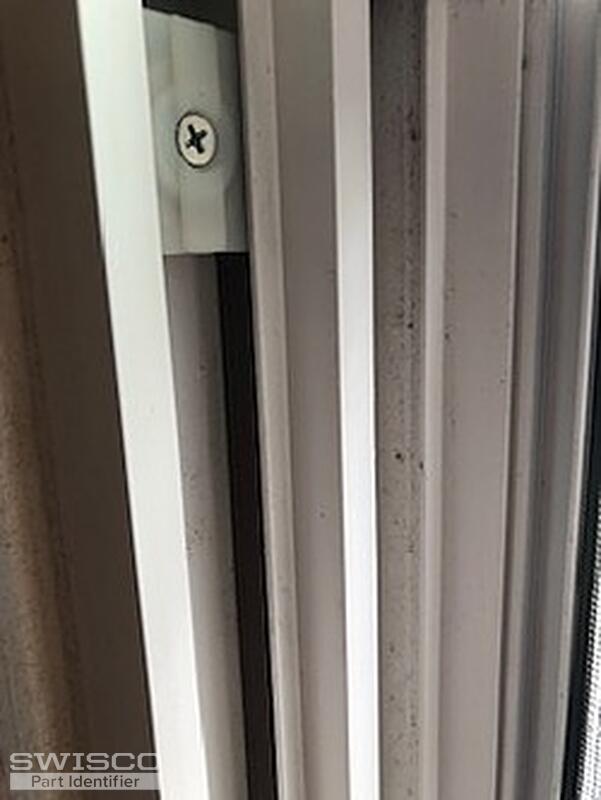

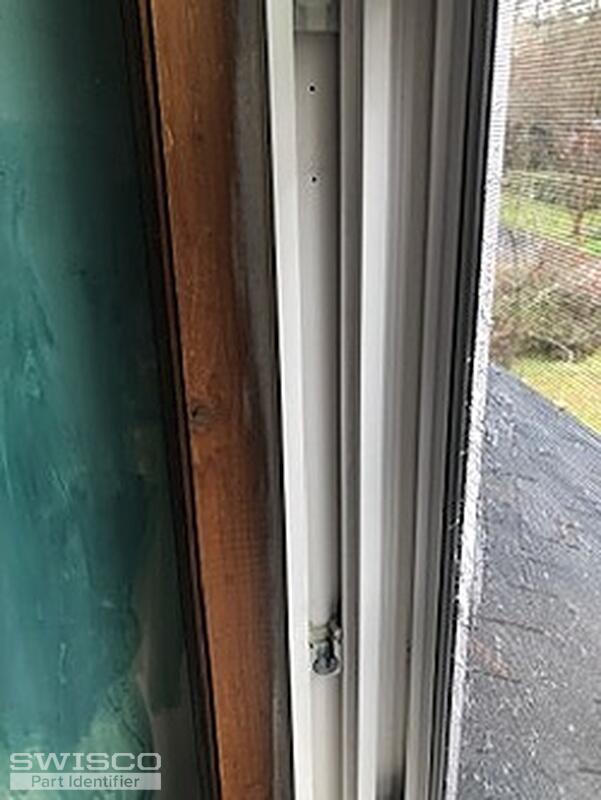

The coil band is 1/2" wide. Here are some additional photos.

3 user uploaded images

Tom from SWISCO

Mar 18, 2022 1:52 pm

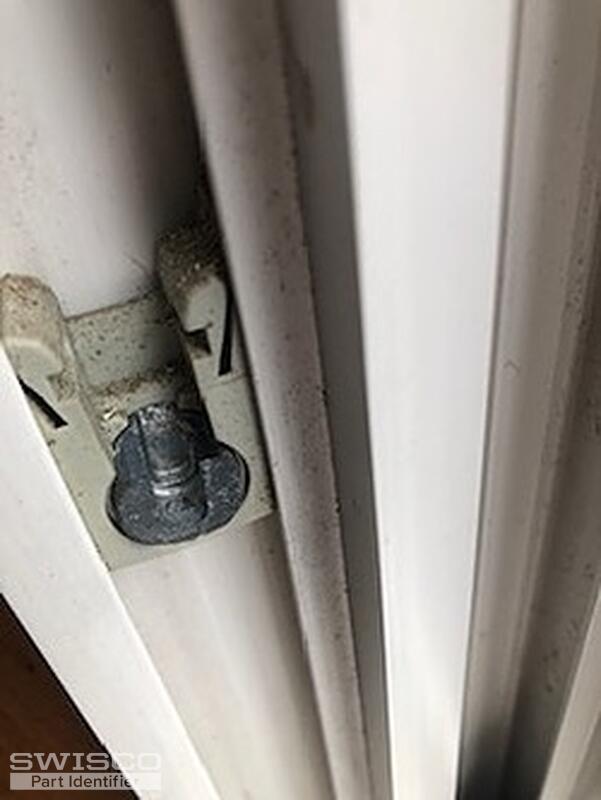

Thanks! Your shoe appears to match our 15-177, which is designed to work with our 1/2" wide Series 152 spring. Look these over and let me know if you had any questions!

Quick Learner from Martinez, GA, USA

Mar 18, 2022 2:08 pm

Thanks for your help, I just ordered them.

Tom from SWISCO

Mar 21, 2022 8:34 am

Awesome, thank you! We appreciate your business. If you need anything else, please feel free to ask.
