Tom from SWISCO responded:
September 20, 2022

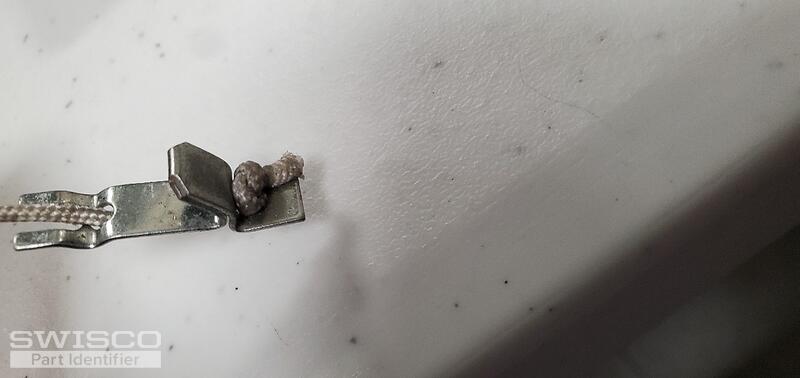

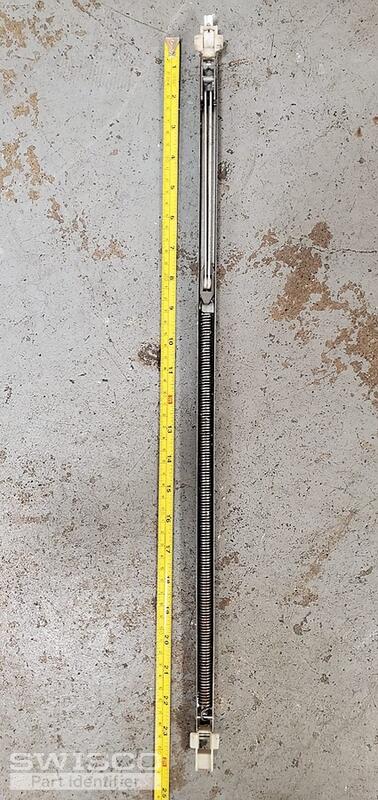

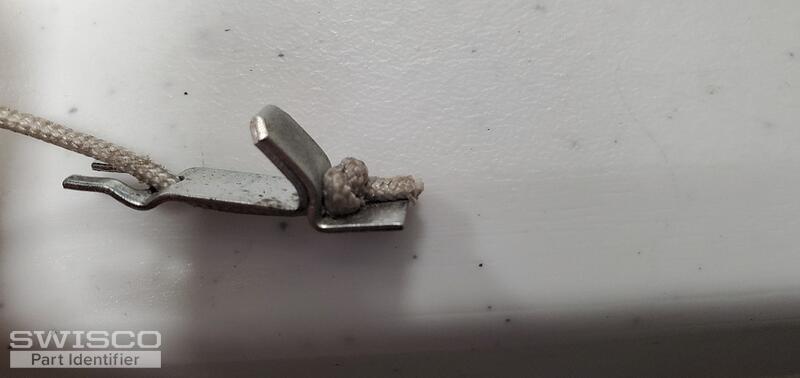

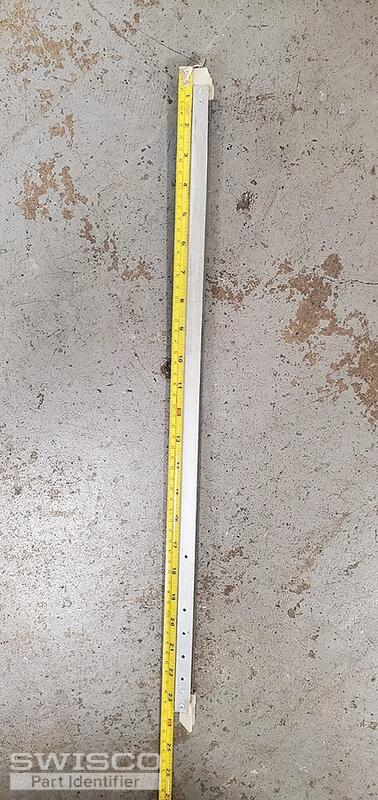

Hello, Eric. The Series 380 channel balance will unfortunately not work for you. What you have here is an extended travel channel balance, named for the fact that it uses a different style pulley system. The give-away here is that the pulley wheel is built into your bottom fitting, which is not the case on our S380-22. I know that doesn't seem like a big difference but it's a deal breaker. The Series 380 will not replace this. We can supply extended travel balances like yours, but it will have to be a custom order. To start, please confirm the length of the metal channel; in your case, it should be 22-5/8". Please also show me a clear photo of the metal hook that was at the end of the cord. Lastly, I will need to know how many balances you need to purchase. Once I know that we can get the ball rolling. |
Tom from SWISCO responded:
September 20, 2022
Perfect, thank you! All I need now is a count. We have to set the quantity for you ahead of time, in an effort to monitor our stock. Once I have that, I will email you a purchase link and price quote that you may use to place an order on our site. |
Tom from SWISCO responded:
September 21, 2022

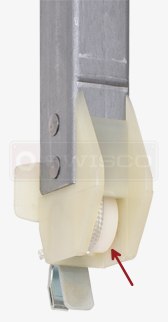

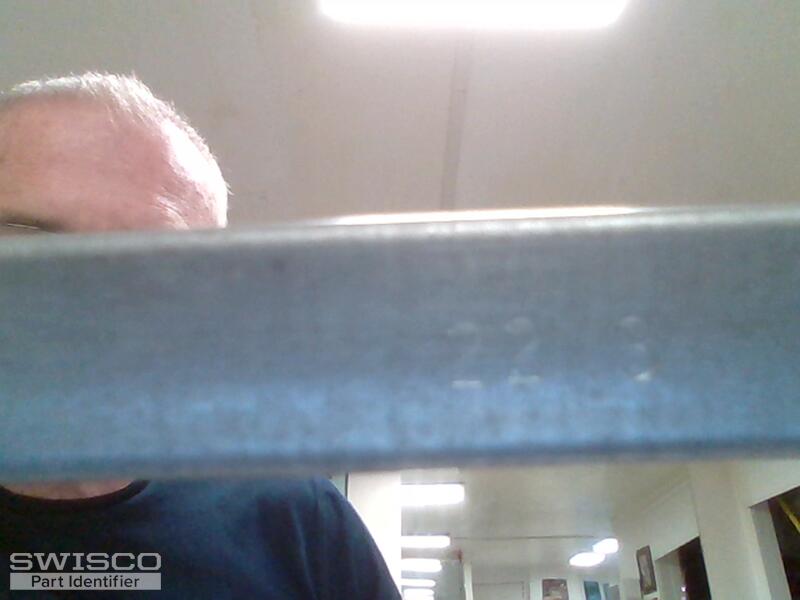

Sounds good! I'll email that link over to you right now. A couple things before you pull the trigger on this: you had mentioned at the start that you're unsure of which option you need. Since your old stamp is 22-3 then we would just stick with that, but you should note that two balances with this calibration can hold a sash weighing 11 through 18 pounds. If you have any doubts, you can always weigh your sash on a scale and check if it falls in that range. As long as it does then you should be good to go. Lastly, I wanted to share a picture of how the bottom fitting and clip are designed on ours. The metal clip is a slightly different style, but it's just an updated version of your original. As for the shoe, yours should be the same shape, but there are other variations. If your shape differs in any way, please let me know and I would be happy to look into other options. Otherwise, you can use that order link I just emailed to place an order. |
Tom from SWISCO responded:
September 27, 2022
Good morning! If your sash is 20 pounds then that would change how much weight it can support, yes. A better stamp would be our 22-4, which carries 18-22 pounds. Now, the choice is ultimately yours as to which stamp you go with. If the original balances worked fine all these years without issue then I would stick with that just to be safe. After all, the original installers may have had a good reason to go with that 22-3 stamp option. I don't like to mess with success. However, if the window was always a hassle to open or if it always felt like it was too heavy, then 22-4 may very well fix that issue. It is definitely better suited to your sash weight and it's entirely possible that the original installers actually didn't know what they were doing. Happens all the time! What I'll do is email you a similar purchase link for the 22-4 option. You can then make your decision from there. They will be the same exact price so nothing really changes about the order except for how much weight the springs support. |
