Window channel balancers

A home owner from USA says:
March 28, 2018

Good Morning,

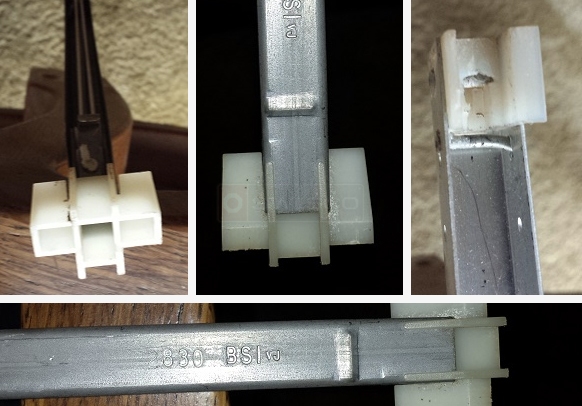

I'm looking for weather vane "channel balancers" with the plastic top &;bottom shoe at each end of the metal U channel. The U channel metal measures 29". The stamp on the channel "2830"

I did not see an assembly that had the correct plastic top & bottom shoe attached to the metal channel balancer on your Website. Is this available? See Photos attached:

Channel Balance

Profile picture of Tom
Tom from SWISCO responded:
April 2, 2018

Thanks for posting! We can definitely make this, though it will have to be a special order. I will email you an order link and price quote for 4 now, which I'm told is the quantity you need. If you want to change that quantity, let me know here and I'd be happy to do so.
A quick learner from MICHIGAN says:
April 2, 2018
Thank you for your reply. I would like to order 5 of these custom channel balancers. However can you tell me what the specific part numbers are so that I can confirm that the parts are correct?
Parts:
1. Channel balancer
2. Top plastic piece
3. Bottom foot piece
Profile picture of Tom
Tom from SWISCO responded:
April 2, 2018

Sure thing! I'll change the quantity right now. These use the 19-038 top and 15-193 bottom for a 1/2" wide metal channel for non tilt windows. Let me know if you have any other questions.
A quick learner from MICHIGAN says:
April 2, 2018
Is the metal 28" long?
And the balancer stamped 2830?

Thank you,
Profile picture of Tom
Tom from SWISCO responded:
April 2, 2018

With a stamp of 2830, the metal channel should be 29" long. I would double check to be sure.
A quick learner says:
April 2, 2018
Perfect! Thank you for your reply
Bottom Fitting, Weathervane
Bottom Fitting, Weathervane
15-193
$3.20
Top Fitting, Weathervane
Top Fitting, Weathervane
19-038
$3.30
