Window coil balance

A handy person from Atlanta, GA says:

August 21, 2021

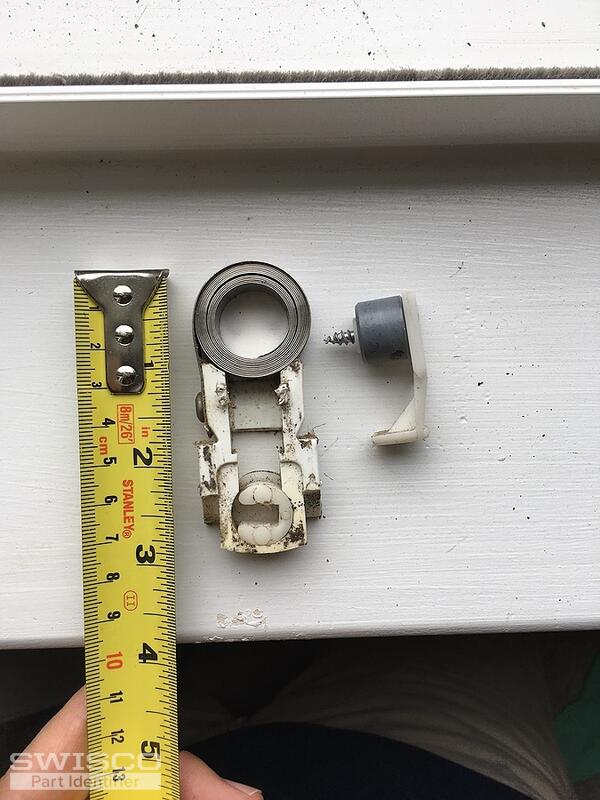

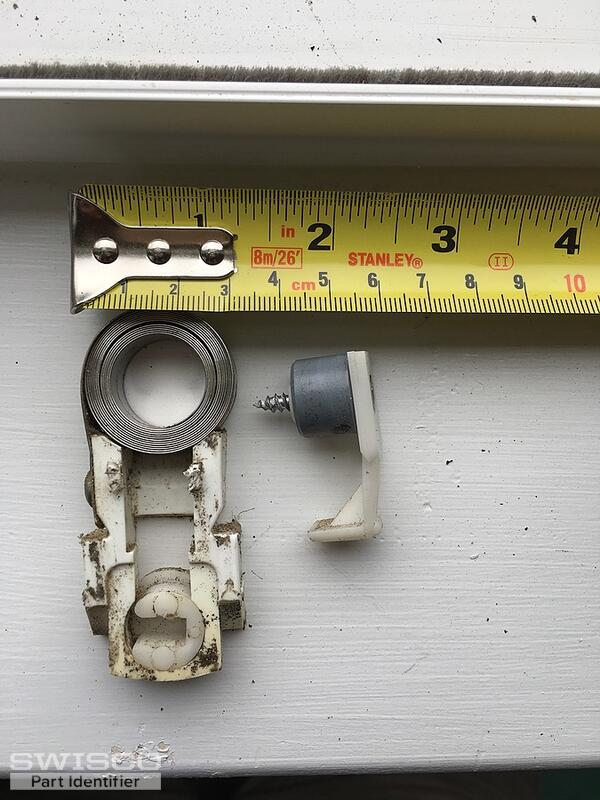

Hello, can you help identify this coil spring? The one in the pictures is from the left side of the window. The right side is completely missing the spring. There are no labels/markings.

Thumbnail of the uploaded file named F1C06369-EDA4-4600-B482-BB7E0D2DA15C.jpeg

Thumbnail of the uploaded file named 346EDED6-CA68-41A1-B097-81DA4023F803.jpeg

Thumbnail of the uploaded file named B492FD16-4C33-47E0-887C-EBEAE1217975.jpeg

Thumbnail of the uploaded file named E7AF68CC-DE7E-453A-84DF-F9169191C80B.jpeg

Thumbnail of the uploaded file named 0C8CB621-7690-4555-8375-CB2A7B99B91D.jpeg

Emily from SWISCO responded:

August 25, 2021

Hi there!

It looks like you have our 15-180 coil balance shoe, which is used with the Series 190 coil spring. Compare our dimensions to yours and see if this matches what you need.

A handy person from Atlanta, GA says:

August 25, 2021

Thank you Emily. I need to get a complete assembly. Is it available to purchase it complete? Shoe, spring, bushing, cover, screw.
My window is missing everything on the right side.

Emily from SWISCO responded:

August 26, 2021

I'm afraid we don't sell the complete assembly. It looks like you'll need our 15-180 coil balance shoe which uses the Series 190 coil springs, 15-182 balance bushing, 15-186 coil balance clip and 33-073 screw or something similar. Just keep in mind, these items are sold separately. Compare our dimensions to yours and see what you think!

#8 x 1/2" Truss Head Stainless Steel Phillips Screw

33-073

$0.23
