Window crank --unknown manufacturer

Question

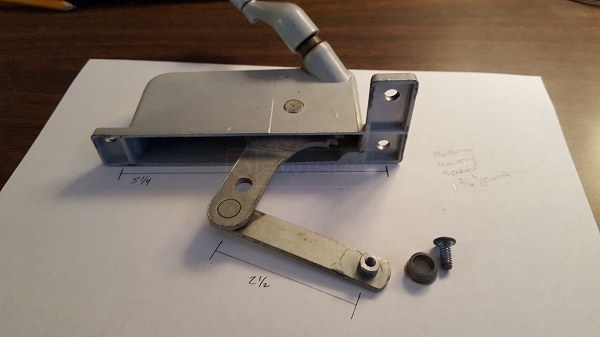

I have been unable to locate the correct window crank. Dimensions are noted on picture and are all center to center. They are 5 1/4" top to bottom, 2 1/2" arm, 1 3/16" bottom mounting screws. Please let me know if you need any additional information. Thanks...Keith

Paul · Accepted Answer

Thank you for contacting us, Keith. I believe you have a discontinued Tucker operator. Is this the original operator that was on the window, or is it one that was replaced since the window was installed?

Either way, I suggest taking a look at our 39-025. What you can do is to drill the bottom mounting holes making the diameter a little larger to make up the 1-3/16" difference in the hole spacing. It does look like you will have to drill the top mounting hole in the operator to match the off set hole you now have. I'm sorry we can't find anything closer.
