XO Flush Mounted Patio Door Handles

A quick learner from Seattle says:
March 27, 2020

The handles are original from a house built in 1960. The first picture is of the handle with a broken latch. The second is the only identifying marking on the handle. The third is the piece that the latch hooks into. The last picture shows the unbroken handle on another sliding door.

The hole spacing is 3 7/8" and the piece the latch goes into is 5/8"x2 5/8".

Thumbnail of the uploaded file named 2BB6F4D1-23B8-434B-B330-1712FA17AD03.jpeg
Thumbnail of the uploaded file named CB389063-CBF8-4B20-8F65-29528B98BE5B.jpeg
Thumbnail of the uploaded file named 30B59007-6B58-44AE-BA6A-13B9AABC5C35.jpeg

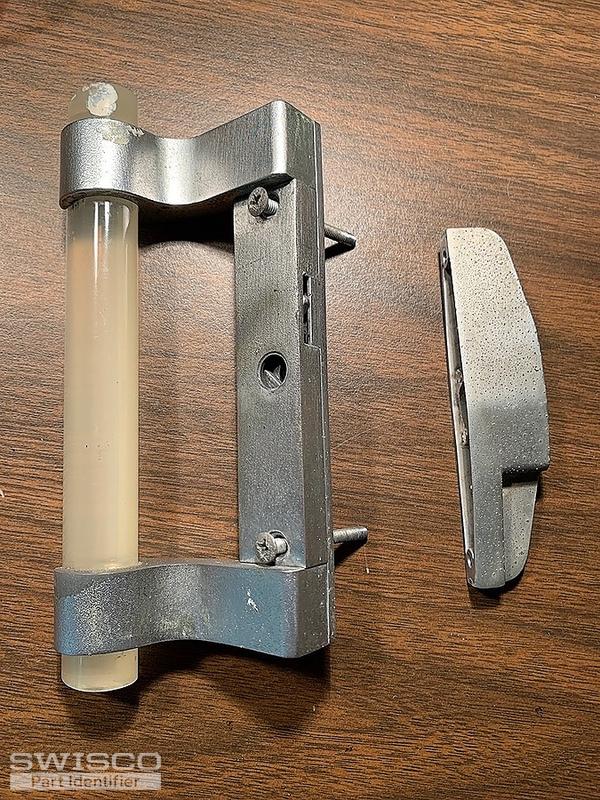

Thumbnail of the uploaded file named 467AF424-4C82-49CA-B2A5-B32459D8C4AC.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 30, 2020

Your door handle hasn't been made in a long, long time. We can offer our 82-005, which I believe will work, but it will require drilling new installation holes. It has a hole spacing of 4-15/16", center-to-center, not 3-7/8". Would that be possible?
A quick learner from Seattle says:
March 30, 2020
I would prefer not to drill new holes, but if I must I would prefer a handle style you can grab on to, similar to the original.
Profile picture of Tom
Tom from SWISCO responded:
March 31, 2020

Sure, I understand. We have a couple that can work that way. See our 82-013 (3" hole spacing), 82-261B (3-15/16" hole spacing) and 82-016 (3-1/2" hole spacing). Any one of these may work for you, but the 82-261B is cutting it close with a 3-15/16" center-to-center hole spacing.
A quick learner from Seattle says:
April 1, 2020
Thanks. I may try the one with 3-15/16 spacing. I should be able to expand one of the holes by 1/16" with a drill.
Surface Mount Sliding Door Handle Assembly, 4-15/16"
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$27.90
Handle Set with Plates, 3-15/16"
Handle Set with Plates, 3-15/16"
82-261B
$33.87
Surface Mount Handle Set, 3-1/2"
Surface Mount Handle Set, 3-1/2"
82-016
$37.45
Sliding Door Handle Set, 3" Hole Centers
Sliding Door Handle Set, 3" Hole Centers
82-013
$27.45
