block and tackle balance

Quick Learner
Mar 24, 2023 3:16 pm

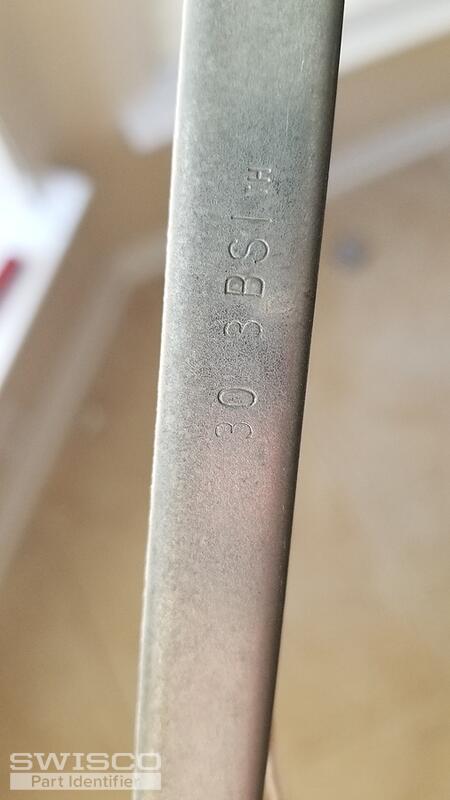

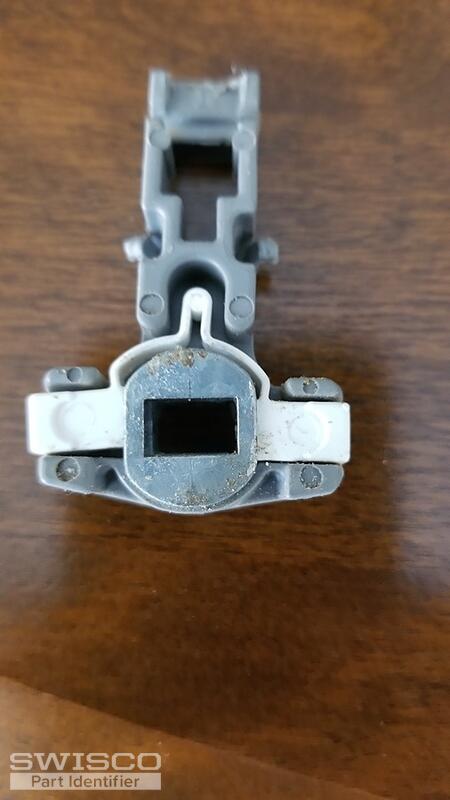

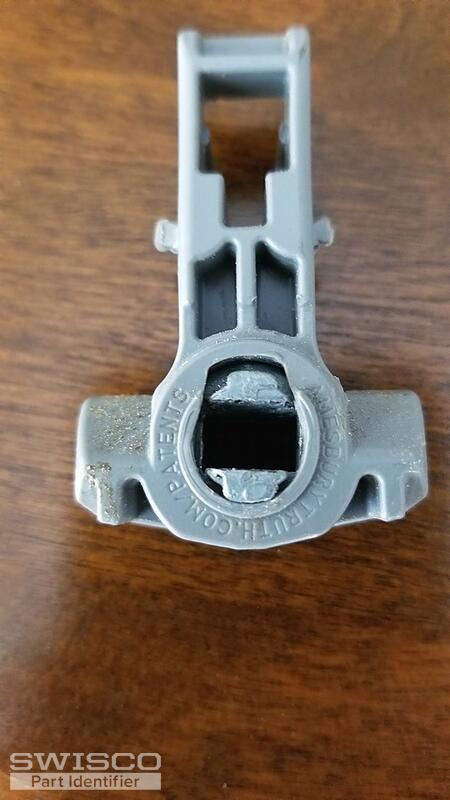

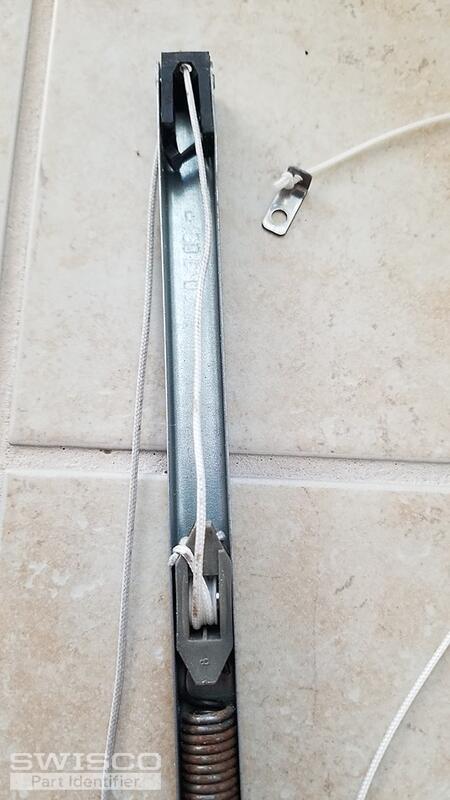

Please help me identify this part for ordering. Its a BSI 1/2 inch block and tackle balance for an Andersen Silverline Vinyl single hung window. The stamp is 30 3 BSI and the metal part measures 31 inches. Pictures attached.
Bruce bruce4 bruce5 Bruce bruce3
5 user uploaded images
1 Replies
Emily
Emily from SWISCO
Mar 27, 2023 12:52 pm
SWISCO
EXPERT

Hello there!

Thank you for reaching out to us. Our S795-31 channel balance appears to match what you show here. However, you'll need to purchase the 15-195B open-cam shoe separately and swap it with the one that comes with this balance by default. The video below will demonstrate exactly how to do so.

Note, your old 30 3 stamp doesn't directly correspond to any of our strength options. We believe you may be able to use the 31C option for a sash weighing 19 to 24 pounds but you can always weigh your sash on a scale to confirm.
