channel balance 27''
Quick Learner from sparks nevada
Jul 18, 2016 10:23 pm
I need a 2690 but the highest you go is 2665
5 Replies
Tom from SWISCO
Jul 20, 2016 11:19 am
Thanks for posting. A stamp that ends in "90" uses an old rating system no longer in use. One of our options may still work, but you will need to weigh your sash on a scale to determine which one is best.
Quick Learner from 91350 california
Jul 11, 2021 4:11 pm
20 year old home, vinyl windows have always been hard to close at the end taking way too much force.
Windows weigh 22 pounds. (Triple checked)

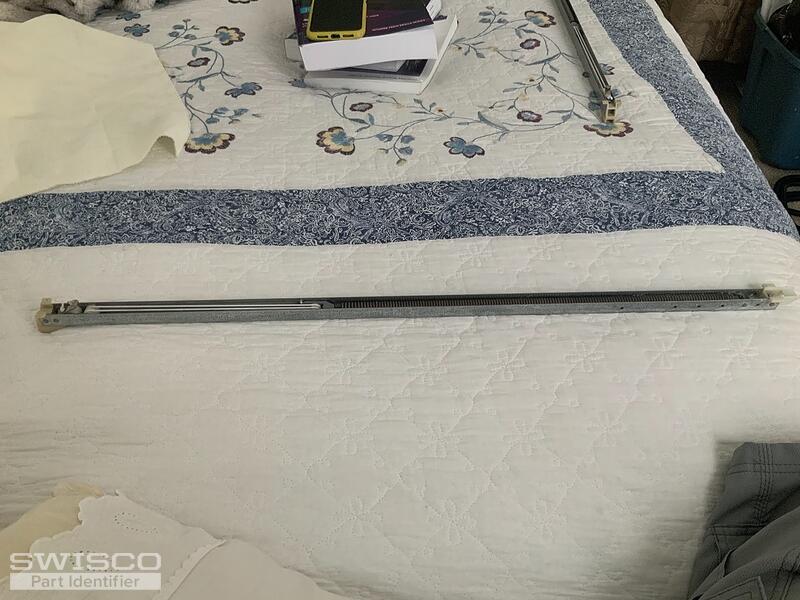

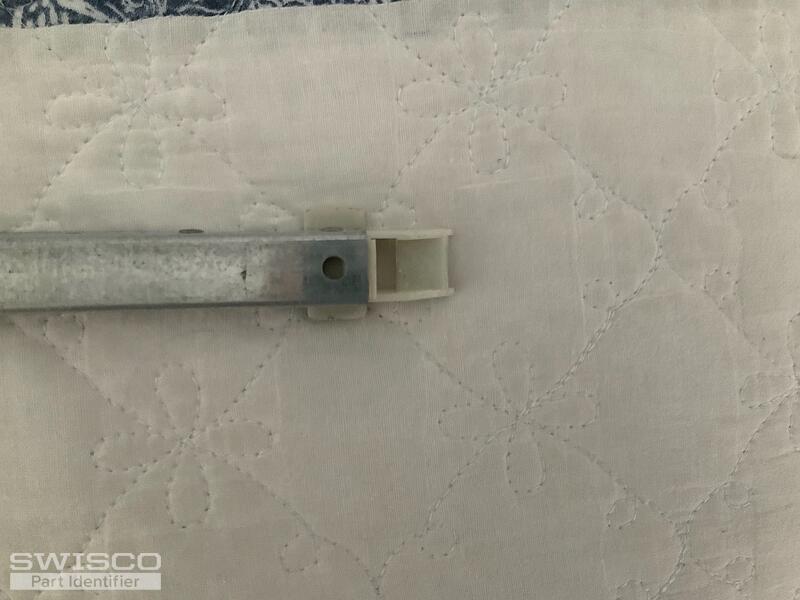

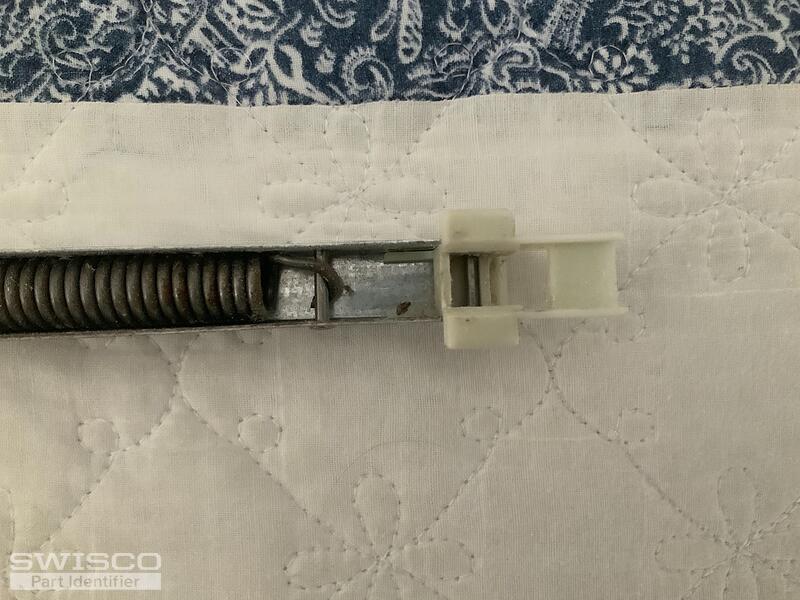

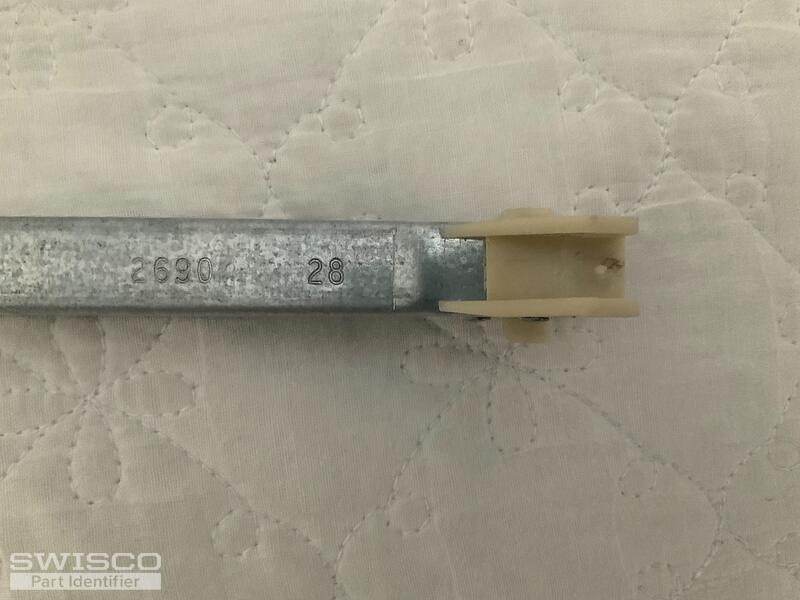

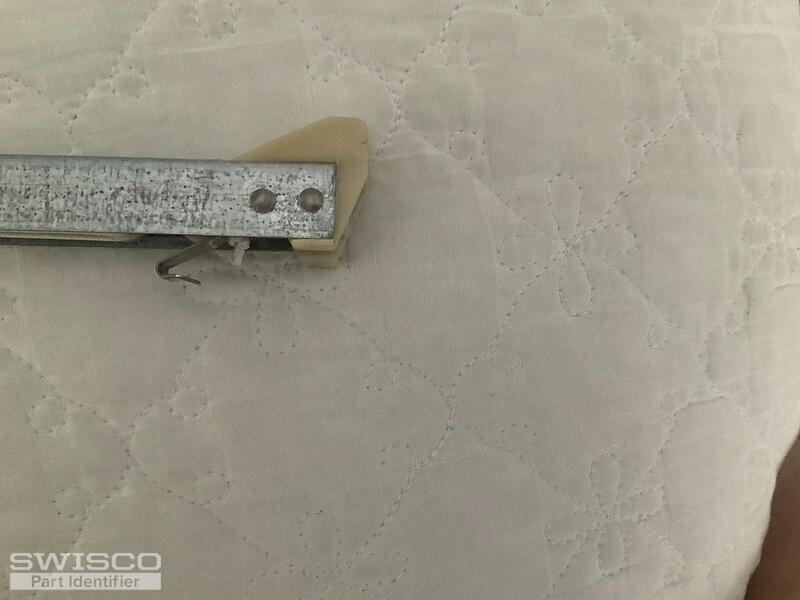

Balancers are stamped 2690 and then 28. Pictures show the ends.
Windows weigh 22 pounds. (Triple checked)
Balancers are stamped 2690 and then 28. Pictures show the ends.
5 user uploaded images
Quick Learner from 91350 california
Jul 11, 2021 4:14 pm

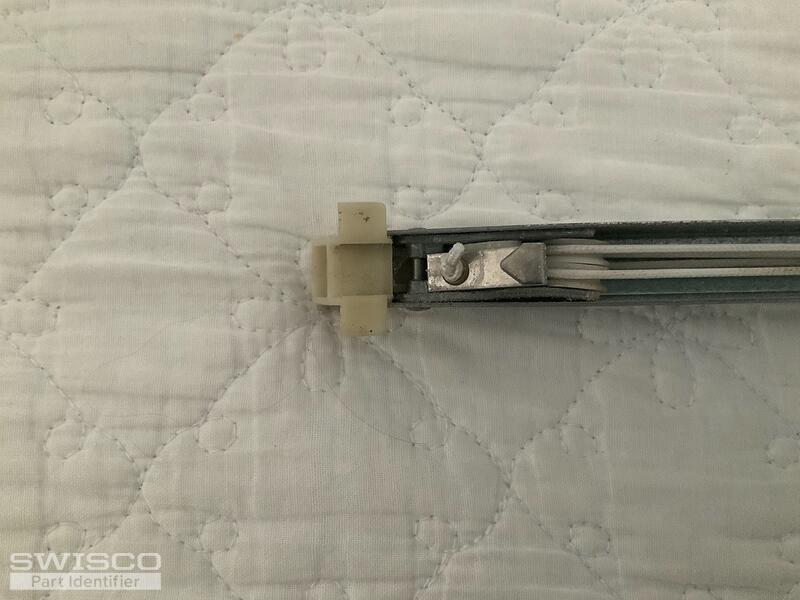

What would be the proper replacement please? Thanks! Is it possible this is not the right type gor the window weight?
1 user uploaded image
Bob from SWISCO
Jul 15, 2021 10:30 am
This appears to be either a Series 380 or Series 385 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the image below for guidance. Compare both with your old hardware to see what you need.
Next, check the length of the metal channel, not including the nylon fittings at either end? Is it 27" long? If so, you're going to need either the S380-27 or S385-27, again, depending on the shoe depth. Finally, your old stamp of 2690 is from an older rating system no longer in use. If the window weighs exactly 22 pounds though, you can use a stamp of 2640, which will support a sash in the weight range of 19 through 26 pounds.
Comparison of the S378, S380 and S385 balance shoes.
