channel balancer

A quick learner says:
mine is 23 3 is 23 3/4" long looks like your # S395-24 also do 16-002 take out clip replace plastic ones ?
Profile picture of Tom
Tom from SWISCO responded:

If your balance is 23-3/4" long, then the S395-24 will not work. It is very likely you have something entirely different, probably an extended-travel type balance.

We should start with photos. Please show me a clear picture of the top fitting, bottom fitting, stamp, and the metal clip at the end of the cord. Since you also said you needed a top sash guide, we will require a photo of that, as well. Lastly, please verify how many you needed to buy.

It's important to make sure the hardware you show us is whole and undamaged. If the parts you show us are damaged, then we won't be able to assist you.

A quick learner from Rocky Ford CO says:
Here are the pictures you requested. Thanks for your help.
Thumbnail of the uploaded file named 20221209_075215.jpg
Thumbnail of the uploaded file named 20221208_090657.jpg
Thumbnail of the uploaded file named 20221208_090632.jpg

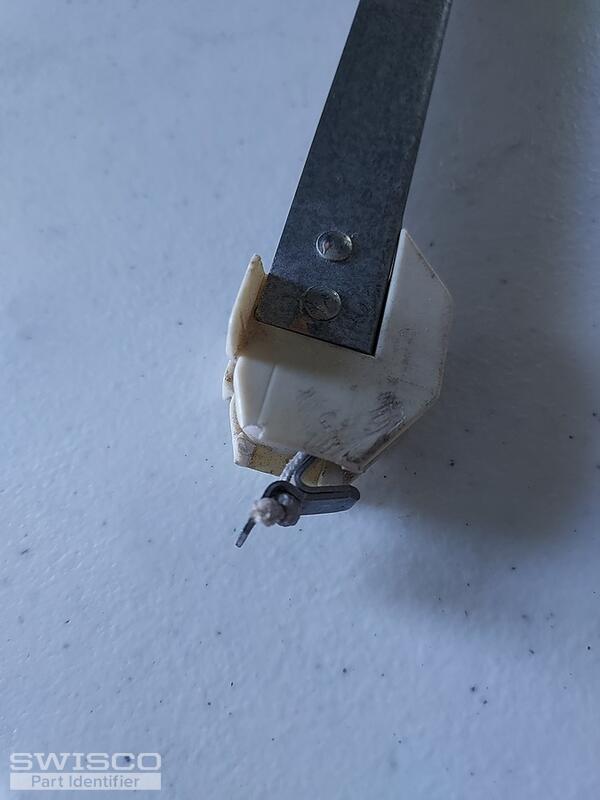

Thumbnail of the uploaded file named 20221208_090557.jpg

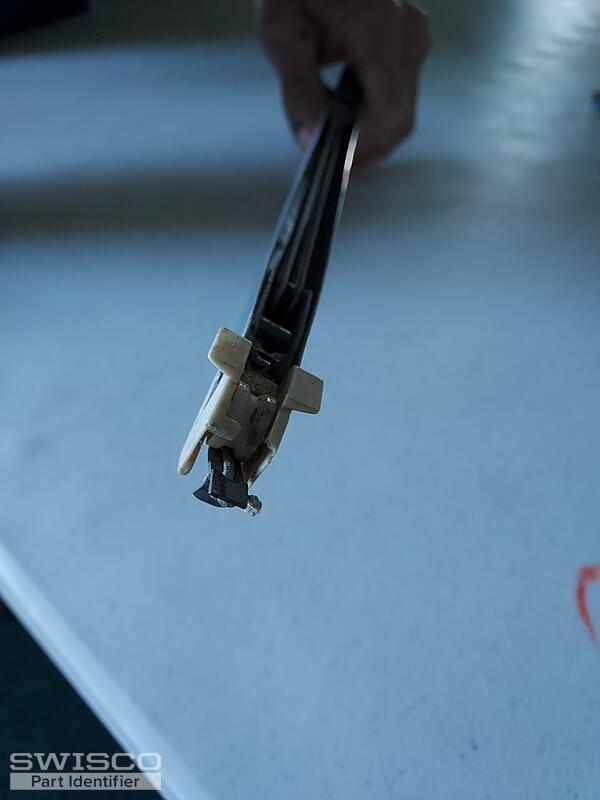

Thumbnail of the uploaded file named 20221208_090530.jpg
A quick learner from Rocky Ford CO says:
Here are the rest of the pictures.

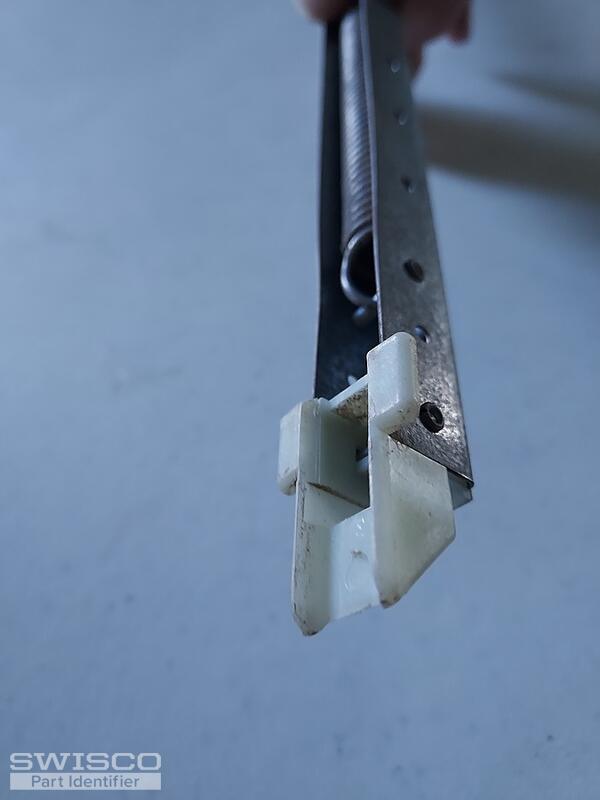

Thumbnail of the uploaded file named 20221208_090428.jpg

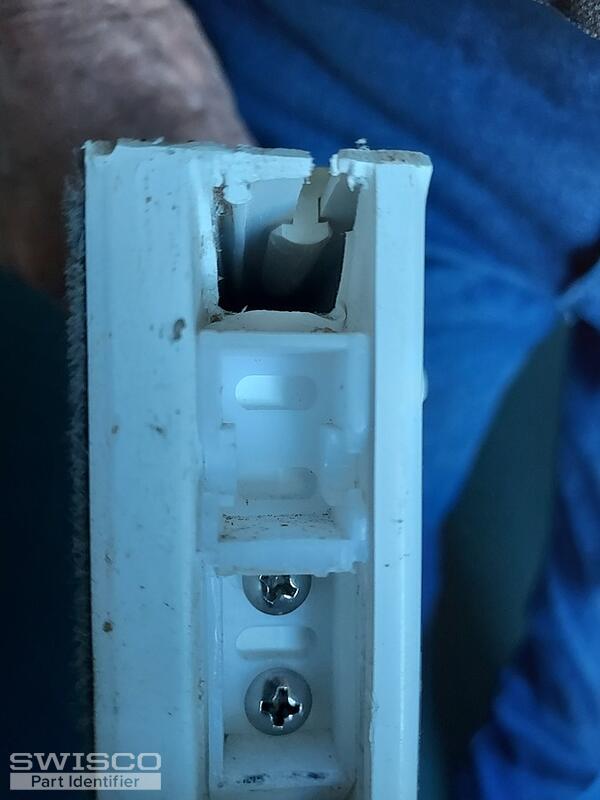

Thumbnail of the uploaded file named 20221208_090317.jpg
A quick learner from Rocky Ford CO says:
We want to order 6. Ea
Channel balancers and 50 clips
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thanks! This is definitely an extended travel balance, so it will have to be a custom order. What I'll do now is email you a purchase link and price quote that will let you add 6 of these to your cart.

I don't see a take out clip in your photos, but I do see a top sash guide: your specifically is an older version of our 18-008H. This will not be included with the custom link I'm going to email you, but as they are not custom, you can add them to your cart at any time.
