closet slider door single wheel assembly

Contractor from Falmouth, MA

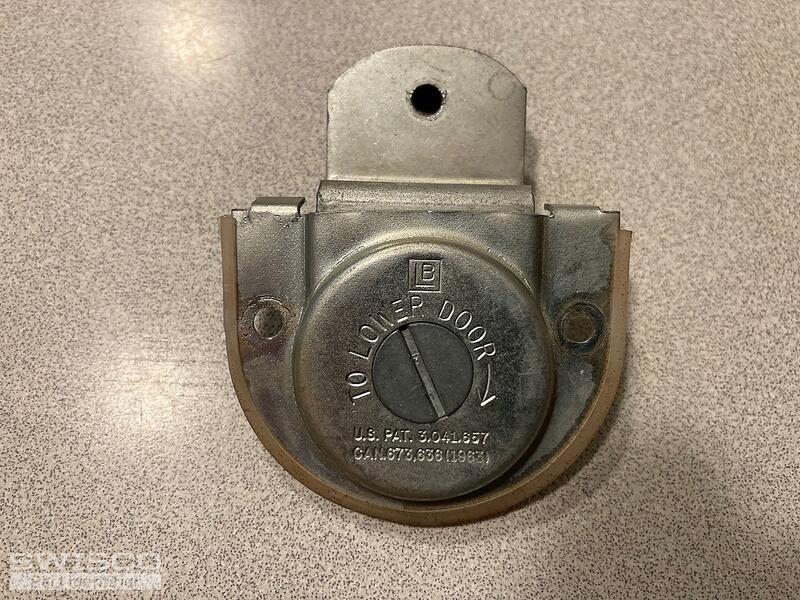

IMG 422 has a logo "LB" at top and "US PAT. 3041657" and under it "CAN. 673636 (1963) at bottom. Around adjustment slot: "To Lower Door" with clockwise arrow. Thanks!
3 user uploaded images
11 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting!

Your roller resembles either our 23-047 or 23-031 depending on the offset. Please compare the dimensions listed on the product pages to determine the correct fit!

Contractor from Falmouth, MA
Thank you, Lauren - I take it the "LB" logo wasn't helpful.

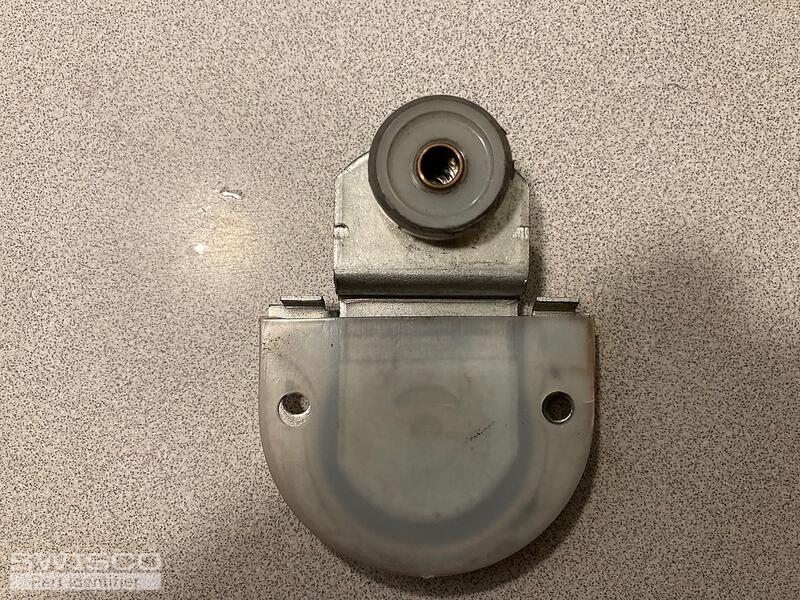

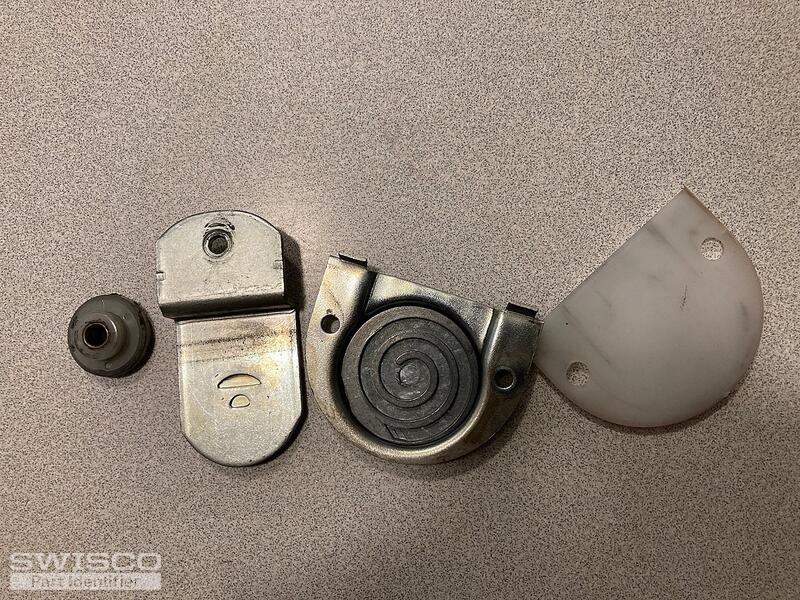

Some more info I should have included: the bracket is 3/8" offset, so neither of your suggested brackets would work. The wheel is 3/4" diameter and 1/8-3/16" thick.

I originally purchased the Johnson replacement roller assembly pictured below. The offset is correct but the wheel diameter was too big at 1", and the wheel seemed too thick at 3/16-1/4". The old wheel I'm replacing seemed a thin 3/16".Hope this helps, and thanks again.
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional information. I am going to send your inquiry over to our senior experts for further review and will be in contact as soon as possible. Thank you for your patience.

Lauren
Lauren from SWISCO
SWISCO
Expert

The LB stands for Lawrence Brothers Hardware, unfortunately they discontinued their closet door hardware. The #23-031 & #23-047 is a replica of their original closet door rollers. The nylon wheels are 3/4" and the #23-031 has a 1/8" offset and #23-047 has a 1/2" offset. Unfortunately we do not carry a replacement with a 3/8" offset.

Contractor from Falmouth, MA
Thanks, Lauren!

I'm going to order those two now and make one of them work.
Lauren
Lauren from SWISCO
SWISCO
Expert

Great! Thank you for posting!

Home Owner from Madison WI
I have the exact same original pieces. Since a 3/8 inch offset isn't available, would the best option be to get the 1/8 inch offset for the outside/front doors and the 1/2 inch offset for the inside/back doors?
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting!

Unfortunately if the offset is 3/8" we do not have a suitable replacement as these measurements are exact for the roller to work correctly. We cannot guarantee if you would be able to adapt your door to use the 1/8" or 1/2" roller. I apologize that we could not provide further information.

Home Owner from Framingham, MA
This post and thread was very helpful. I have an LB No.452 (tandem wheels) with a 1/8" offset that I need to replace. I have not found any replacement parts and now I know why since they are discontinued. I would hope that I could use two of the 23-031 to replace the one unit I need replaced.
Lauren
Lauren from SWISCO
SWISCO
Expert

Great to hear! We hope that the 23-031 rollers will work out for you. Please let us know if you have any additional questions.
