coil balancers

A handy person from oscoda mi. says:
1 1/2 tall x 1 1/4 wide x 1/2 thick maybe 9/16. window sash weighs 13 lbs.
Thumbnail of the uploaded file named 20220518_151612 parts.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

We'd be happy to help but we'd like to see a picture of your pivot shoe removed from the window to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.

A handy person from oscoda mi. says:
I bought these parts from you apx 2 yrs ago. Dont have my order #. But need them again. Looking for a heavy duty version if available. The window is for takeout at a cafe.
Thumbnail of the uploaded file named IMG955272.jpg
Profile picture of Emily
Emily from SWISCO responded:

Thank you! Your pivot shoe is a match for our 15-228 which uses the 1/2" thick Series 160 and 3/8" thick Series 165 coil springs. You'll need to measure your old coils to determine which one will be best for your window. Look over the specifications and let me know if you have any questions.

A handy person from oscoda mi. says:
Measure the length of the coil?
Profile picture of Emily
Emily from SWISCO responded:

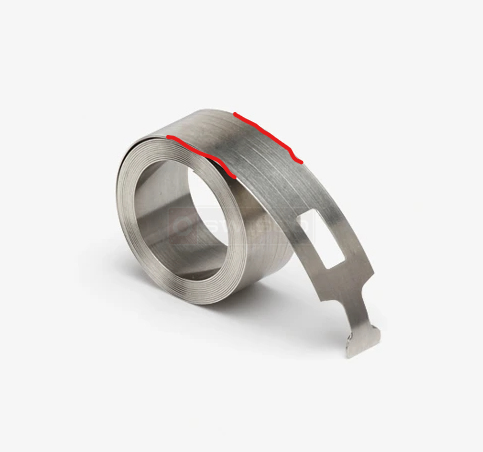

No, you'll want to measure the width of the coil spring. See the image below and let me know if this helps.

coil width
A handy person from oscoda mi. says:
The width of the spring is 7/16 And remeasured all parts and the housing for the coul measures 9/16
Profile picture of Emily
Emily from SWISCO responded:

I'm afraid we don't sell a coil spring in that size and we know of no company who made anything in that size. The 1/2" thick Series 160 and 3/8" thick Series 165 are the only options so we recommend triple checking the width of yours.
