does cam color matter?

Handy Person from Owings Mills, MD

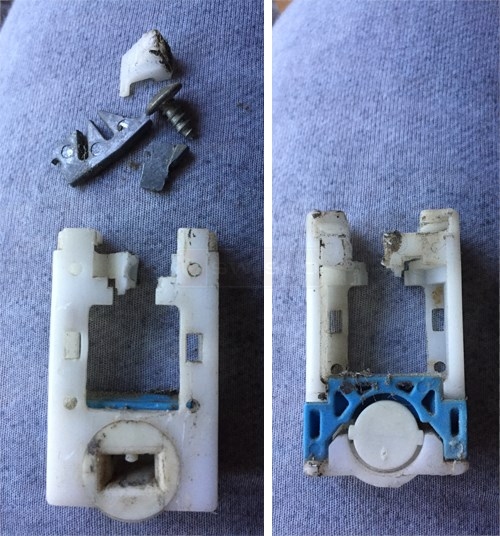

I think this may be the one I need: Product Code: 15-121 -- however, my existing broken one has a white cam. I'm attaching photos. It appears to be 9/16" thick, 2" long, and 1 1/4" wide. These windows were installed in 1998 I believe....no idea what brand.....pulte homes.
Pivot shoe
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
If your shoe is 9/16" thick and 1-1/4" wide, and as long as the cam slot is 5/16" wide and 3/16" high, then I think the 15-121 can still work for you.
Handy Person from Owings Mills, MD
The slot appears to be 3/8" wide. Would you have any other part number suggestions?
Paul
Paul from SWISCO
SWISCO
Expert
The color doesn't matter. The most important part are the dimensions, especially the width and thickness like Tom mentioned. The 15-118 may be another choice, but the cam size may be an issue. Please double check your dimensions. Seeing your pivot bar would also help.
