identify plastic sleeve spacer

Home Owner from Illinois
Jul 20, 2011 8:49 am
I have found the swivel wing clip (70-014), but can not identify and find the sleeve spacer screw cover piece, there are 2 different sizes. Could you please help. This is used to keep the screen into the window frame. thank you

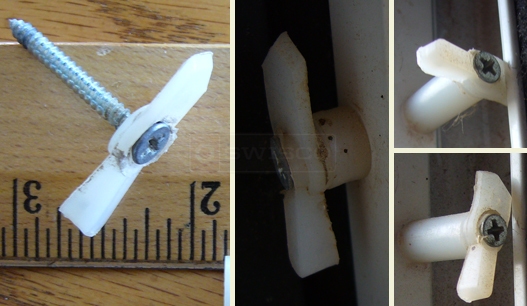

User submitted photo of swivel clip.
3 Replies
Tom
Tom from SWISCO
Jul 20, 2011 1:06 pm
SWISCO
EXPERT
We offer several offset clips. Measure the depth of your clip and compare it to clips such as the 70-072, 70-073, 70-074, 70-086 and 70-134.
Home Owner from Illinois
Jul 20, 2011 2:42 pm
Thank you, I found the clip 70-014 is the exact one. I can not find the piece that goes over the screw, which screws into the screen frame. The spacer, one which is shorter than the other, has the screw pass through it and make the clip be at the exact length to hold the clip in the exact place for the window frame. Hope description helps. If you need more picetures let me know. thanks
Tom
Tom from SWISCO
Jul 21, 2011 7:40 am
SWISCO
EXPERT
You've identified the 70-014 as the correct turn clip. However, what I've listed above are possible replacement options for your off offset clip (shown on the right side of your image). You will have to measure the depth of your current clip(s) and compare it to the ones listed above.
