Can you help me find these screen corners?

Quick Learner from Illinois
Feb 1, 2024 12:13 pm
I could not find any markings. My local screen shop can't find these corners.
Help?
pic1 pic2 pic3
3 user uploaded images
3 Replies
Tom
Tom from SWISCO
Feb 1, 2024 12:33 pm
SWISCO
EXPERT

I'm sorry to say that I don't recognize this corner off the top of my head. Before I can suggest anything, can you kindly tell me the thickness and depth of the screen frame itself? If at all possible, please write your dimensions down to ensure clarity.

Once I know the size of the screen frame I can check our inventory for a compatible match.

Quick Learner from Illinois
Feb 1, 2024 1:06 pm

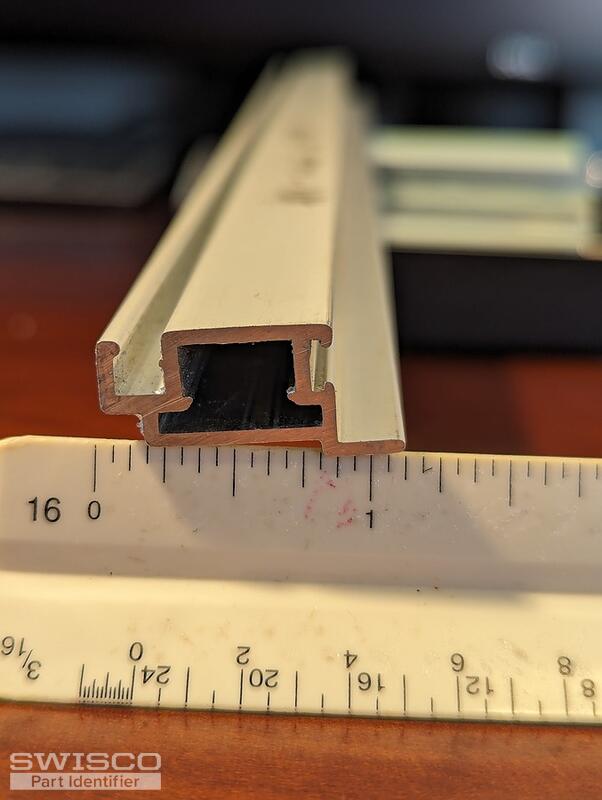

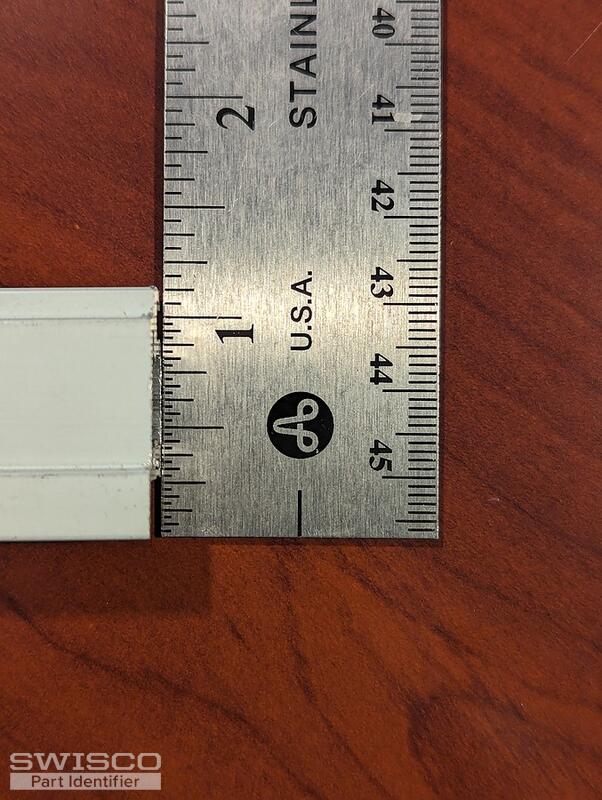

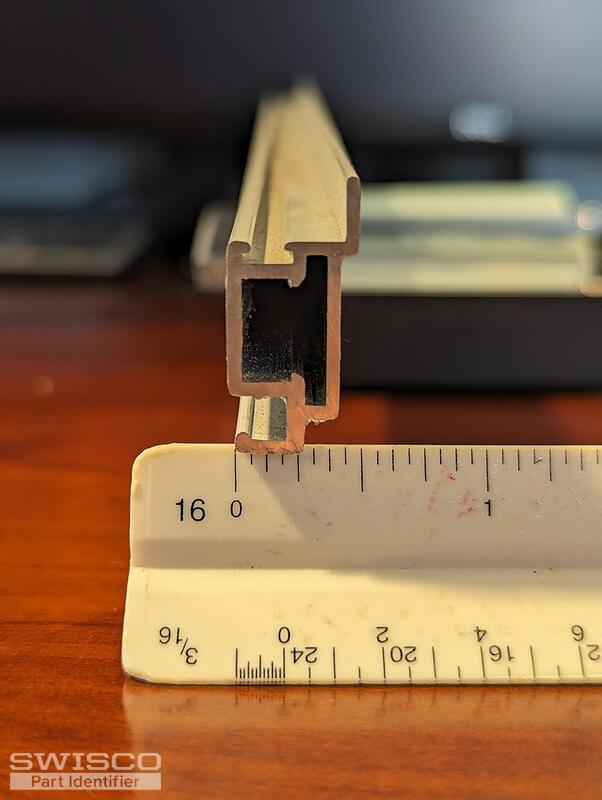

Thank you for the quick response. Attached are three shots of the frame. Overall width 1 1/8th inch (pic6). Inside is 5/16ths wide (pic4). I hope this helps. I know I will not find an exact match but something that works would be good!
pic4 pic5 pic6
3 user uploaded images
Tom
Tom from SWISCO
Feb 2, 2024 12:20 pm
SWISCO
EXPERT

Thanks for your patience while I looked into this. Unfortunately, I wasn't able to find a 5/16" corner that matches the design of your original. I'd say that the best option available to us is the 95-208, but this notably lacks the same flange as yours.

I'm very sorry that we weren't able to come up with anything closer. This doesn't appear to be a part that we can supply.

Detail of 95-208
Detail of 95-208
