question about a channel balance match

Home Owner from Columbia, MD
I am having trouble finding an exact replacement for the support channel balances. I will attach some pictures of the ends and maybe you can give me the correct parts #. The rods are 1/2" X 31" and are stamped 3030. Thank You

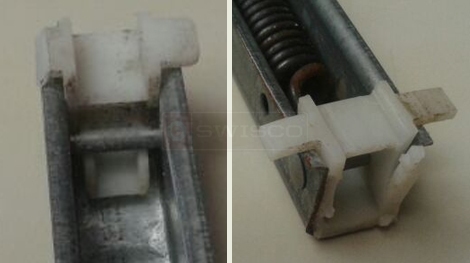

A customer submitted photo of channel balance attachments.
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting! It appears that you may have our 19-037 Rollyson top channel balance attachment, however I can't quite make out the bottom. Can you please take a picture of it from the side so that I may see what it is? Thank you!
Quick Learner from columbia, MD
Here are some additonal pictures. I think I will need to purchase the complete channel balance because of the broken roller(pulley?)

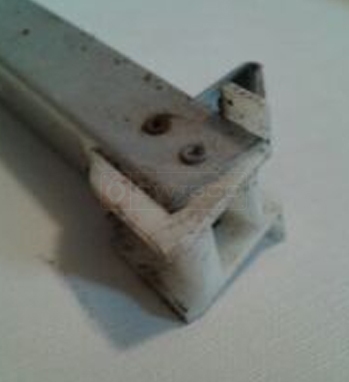

A customer submitted photo of channel balance attachments.
Paul
Paul from SWISCO
SWISCO
Expert
Thank you. It looks like either our 15-004 or 15-005 channel balance shoe, but damaged. Do you have an undamaged shoe to compare? Perhaps from the other balance in the same window? If so, please compare its dimensions to our 15-004 and 15-005 and let me know which one you think is closer.
Quick Learner from columbia, MD
I am still not sure which one I need here is an additional picture form another window since it appears both balances are worn and broken on thewindow I am trying to repair.
A customer submitted photo of channel balance attachments.
Paul
Paul from SWISCO
SWISCO
Expert

Thank you! That makes things a lot clearer. I think you should go with the 1" shoe, our 15-005. However, this will have to be a custom order since your balance uses the 19-037 top fitting.

With that said, I'll go ahead and email you a custom order link that you can use to place an order on our website.

Quick Learner
Thank You
