spiral balances - Mobile Alabama - Midtown Commons apts

A landlord from Alabama says:

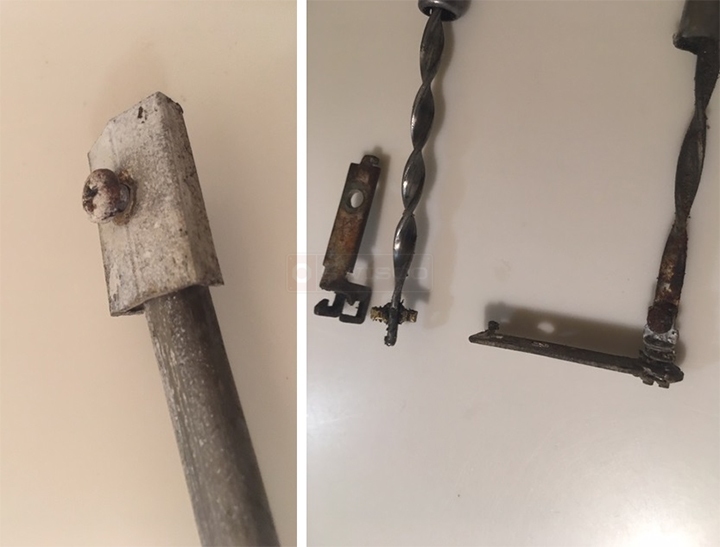

Attached are pictures of the connection both top and bottom.
Two type of attachments at the bottom and 1 at the top.
When moving balances from one apt unit to a newly renovated unit it is likely maintenance threw away the balance and the top and bottom attachment.
We will need to purchase some of these also.

the length is 30 and the width of the spiral tube is 3/8.
Don?t know if red or green yet but will let you know when I know.

I would appreciate us getting one set to make sure we are ordering correctly before we order for approx. 40 windows.
User submitted photos of a window balance.
A landlord from Alabama says:

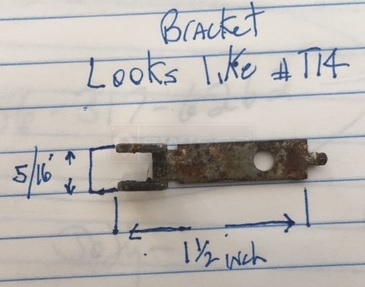

The bottom bracket that most likely fits my window set up is the #T14. The dimensions are exact except the tit sticking up in the #T14 bracket looks flush to the end of the bracket and the one currently used appears to be offset a very little bit.
see pictures

I was asked to determine if the spiral was a red or green tip. Red being 10-22 lbs and green being 14-26 lbs. maintenance weighed the bottom sash between 3-4 lbs so Im not sure if I need red or green.

Also attached is a picture of the windows
Thanks
bracket
Profile picture of Paul
Paul from SWISCO responded:
Take a look at the 17-030 bracket. Is that your part?
