vinyl window counter balances

A home owner from Blue Bell, PA says:
August 18, 2011
I have vinyl windows that I had installed about 17-18 years ago. I have no records of type or installer. I could not find any indentifier on windows. I have two windows that do not stay up. The counter balance springs need repair or more likely replacemet. I cannot get them to stay connected to keep window up. Here is a picture of one of the them. Do you have replacements? Also, I believe there is a tensioning tool I would need to install replacements

Bernie

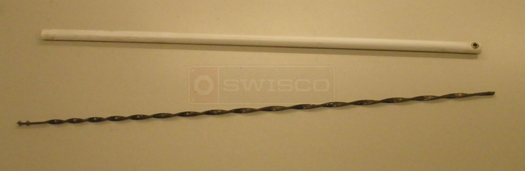

Use submitted photos of plastic balance tube.
Profile picture of Tom
Tom from SWISCO responded:
August 19, 2011
Thank you for submitting your photo, Bernie.

However, we will need the following information in order to proceed:
  • Diameter of white tube casing.
  • Length of white tube casing.
  • Weight of window sash (remove window and place on scale).
The 75-006 Spiral Balance Charging Tool will be what you need in order to apply the correct tension to your window balances.
A quick learner from Blue bell pa says:
August 19, 2011
MIke
the diameter is 9/16" and the length of the white tube is 22". The window sash is 14 lbs.
Bernie Dwyer
Profile picture of Casey
Casey from SWISCO responded:
August 22, 2011
You need our S600-22 replacement balance. You have two strength options for the S600-22

S600-22 Red Tip will carry window sashes between 6 and 19 pounds.

S600-22 Blue Tip will carry window sashes between 10 and 29 pounds.
A home owner from Blue Bell pa says:
August 22, 2011
Donna
I'll order the blue tip since the old ones are blue. Do basic instructions come with balance or is there something on your website I can refer to?
Bernie D.
Profile picture of Casey
Casey from SWISCO responded:
August 23, 2011
You will need the 75-006 charging tool to adjust your new spiral balances to your window. Here is a guide on how to charge spiral balances for tilt windows. Here is a discussion with a nice explanation on how to perform the initial charge of the spiral balance.
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
22" Series 600 Spiral Tilt Window Balance
22" Series 600 Spiral Tilt Window Balance
S600-22
$8.72
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How to adjust a spiral balance on a tilt window
How to adjust a spiral balance on a tilt window
GUIDE
READ >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
