weathershield windows stamped 10 13 93 63 LS

A quick learner from reno nv 89510 says:

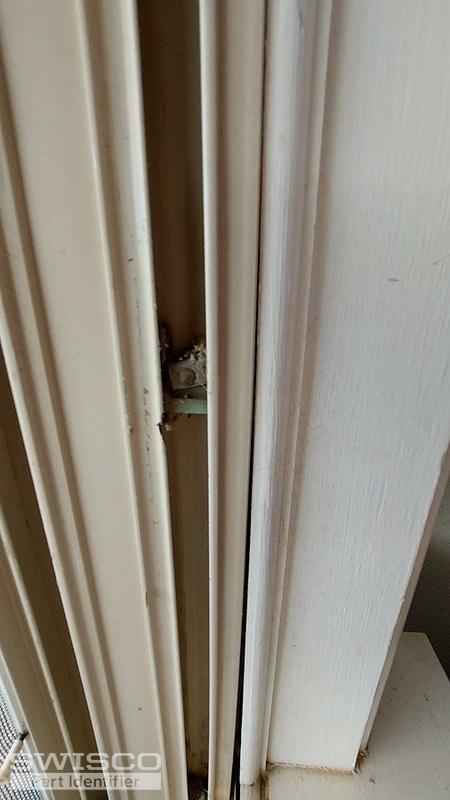

would like clips that I can attach to the cords see photos gene

Thumbnail of the uploaded file named 20210113_122014.jpg
Thumbnail of the uploaded file named 20210113_115658 (4).jpg
Thumbnail of the uploaded file named 20210113_115654 (1).jpg
Thumbnail of the uploaded file named 20210113_122001.jpg
Profile picture of Bob
Bob from SWISCO responded:

It looks like you have ribbed channel balances, such as our Series 751. The Series 751 comes by default with the 15-014 Knife-Lock Shoe attached, but sometimes it uses our 15-197 instead. To know which your balances need, please remove from the window and show us. The stamp on the metal channel would also be useful to know. Many thanks.

A quick learner from reno nv 89510 says:

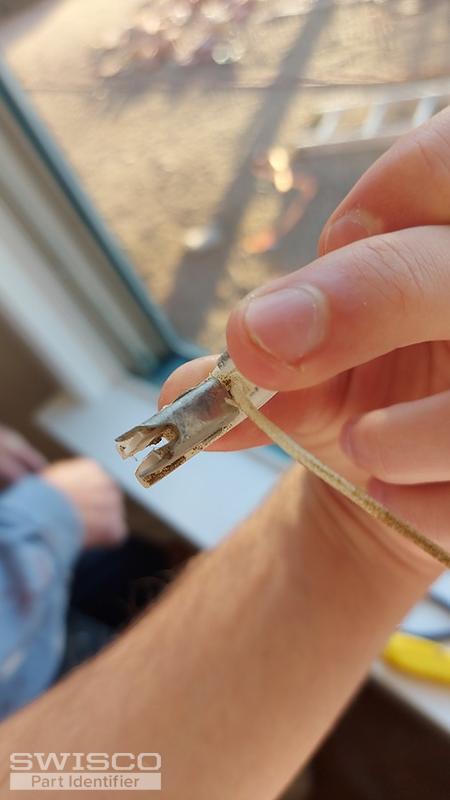

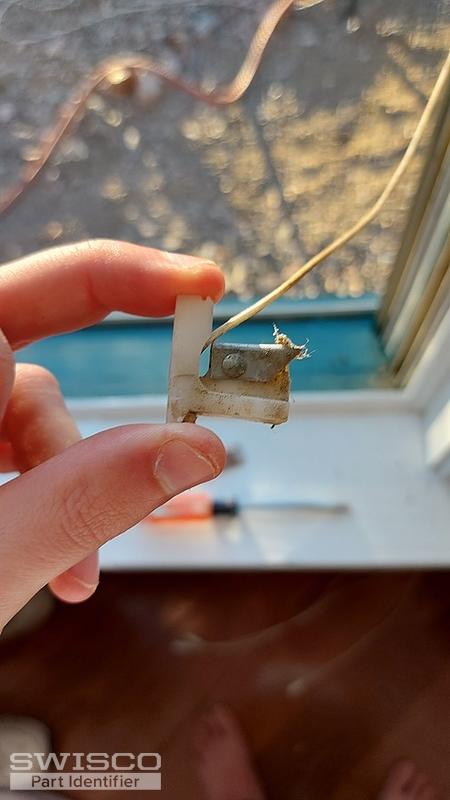

here are the photos of my clips
Thumbnail of the uploaded file named 20210114_161140.jpg
Thumbnail of the uploaded file named 20210114_161219.jpg
Thumbnail of the uploaded file named 20210114_161219 (1).jpg
Profile picture of Bob
Bob from SWISCO responded:

Hey Gene. This looks like the 15-014 to me. While you might in theory be able to swap out the shoe, I think it would probably be a lot easier if you just replaced the balance. Again, this looks like a Series 751. Measure the metal channel length to determine the length needed, and then look for a stamp on the metal channel to determine the stamp option needed. If the stamp looks weird, obtain the exact weight of the window sash, then match that exact weight with one of the weight ranges listed alongside each stamp option on the shop page.
