window sash part

Question

I think this is the part that locks and lifts the window? One of our employees broke this at a customer's house and we need to replace it.

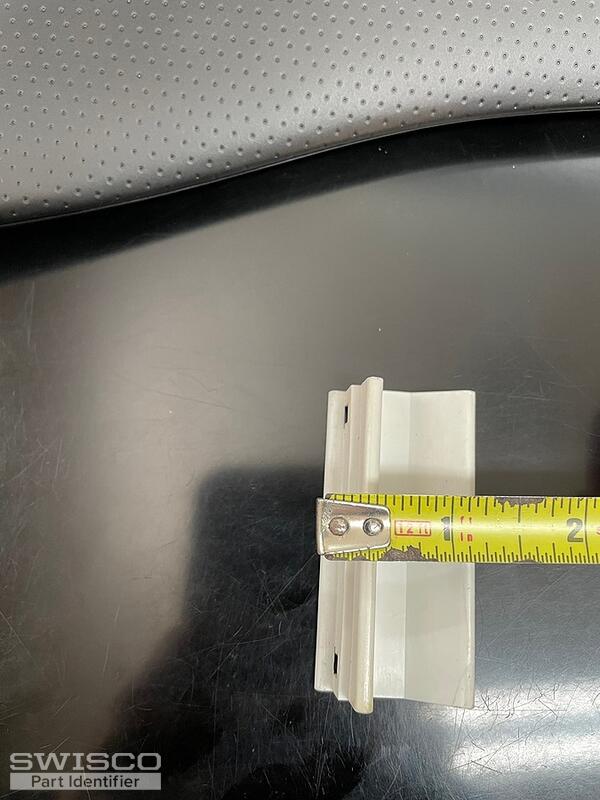

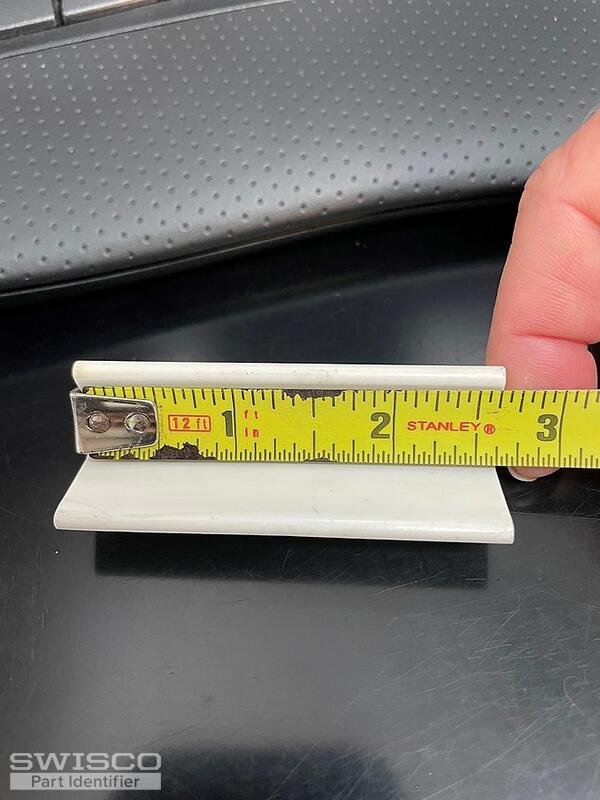

picture: part 6 - actual measurements 2 5/8"
part 5 - 1 3/8"
part 4 - 6/8"
part 2 - 1 3/8"
part 1 - 2 5/8" showing back of part

Casey · Accepted Answer

Hello,

We have a few latches similar to the part shown in your photos, the 90-034 and 90-293, but I'm not sure if either of them would work for your repair since they are not an exact match. Review the specifications below and see what you think.

Since these types of latches are often specific to the window manufacturer, you may have a hard time finding an exact match. We apologize for the inconvenience.

Profile diagram of 90-034

Reverse side of 90-034

Alternate image for 90-293
