Product Code: 39-316

Truth Dyad Operator

Name: Truth Dyad Operator
SKU: 39-316
Price: 29.15 USD
Availability: InStock

$29.15

Quantity	Price
1-24	$29.15/ea
25-49	$28.27/ea
50+	$27.42/ea

Please Note: Bulk pricing applies only to purchases of the same option

white clay +$6.70 beige

Quantity

Add to Wishlist

Product Description

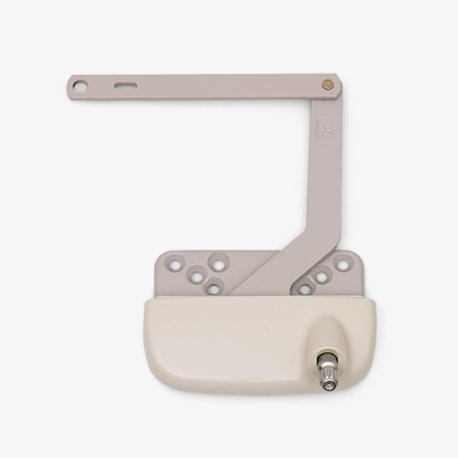

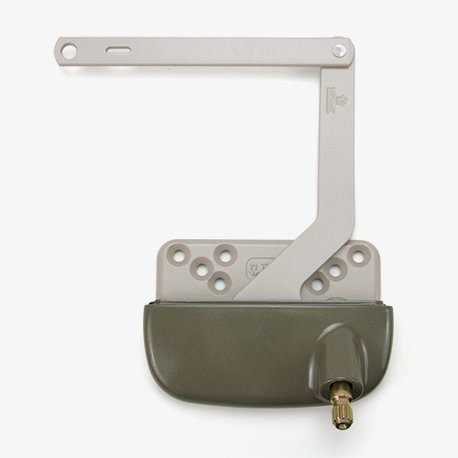

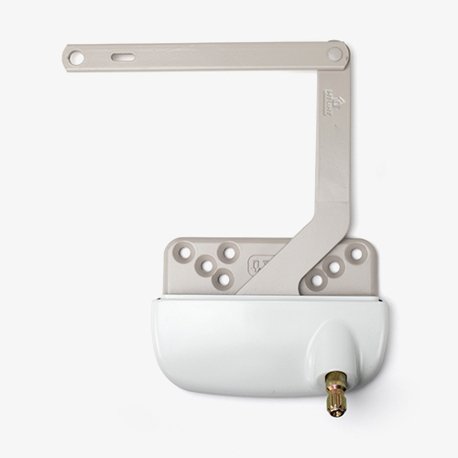

This is a sill mount, split arm crank operator . Used to open and close casement windows.

See SWISCO product 39-315 for the opposite handed version.
5" link arm.
11/32" spline; handle sold separately.
Will provide a full 90 degree window opening.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm, gear arm, and link arm.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

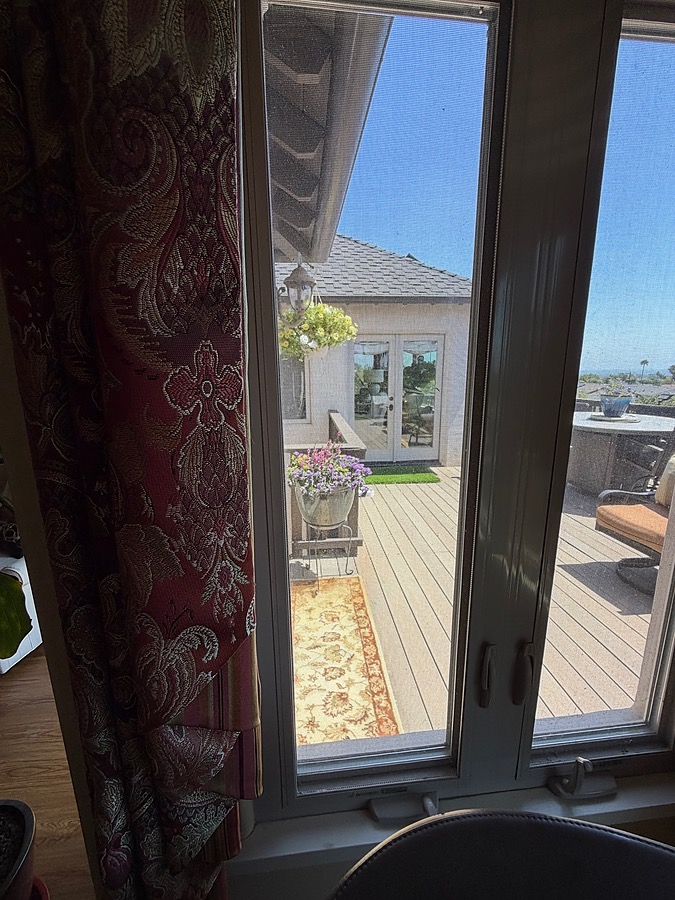

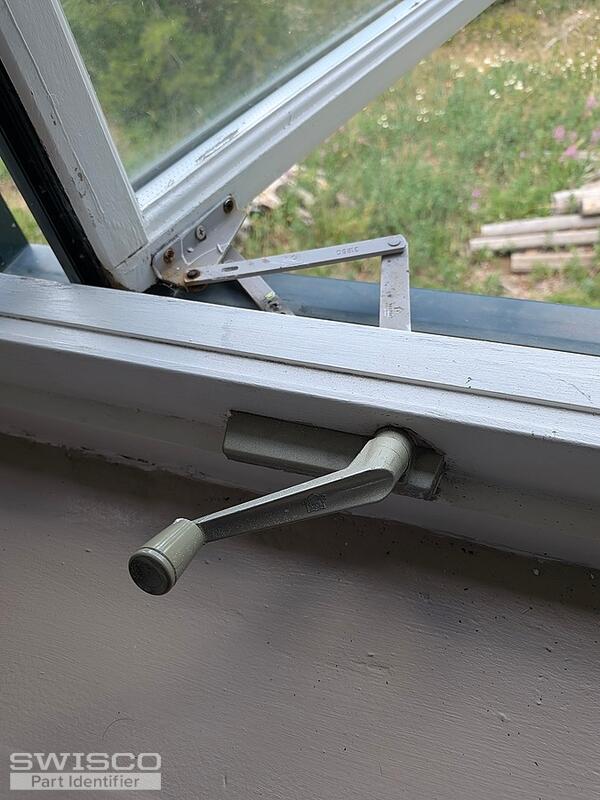

Windows parts

Need help identifying these parts.

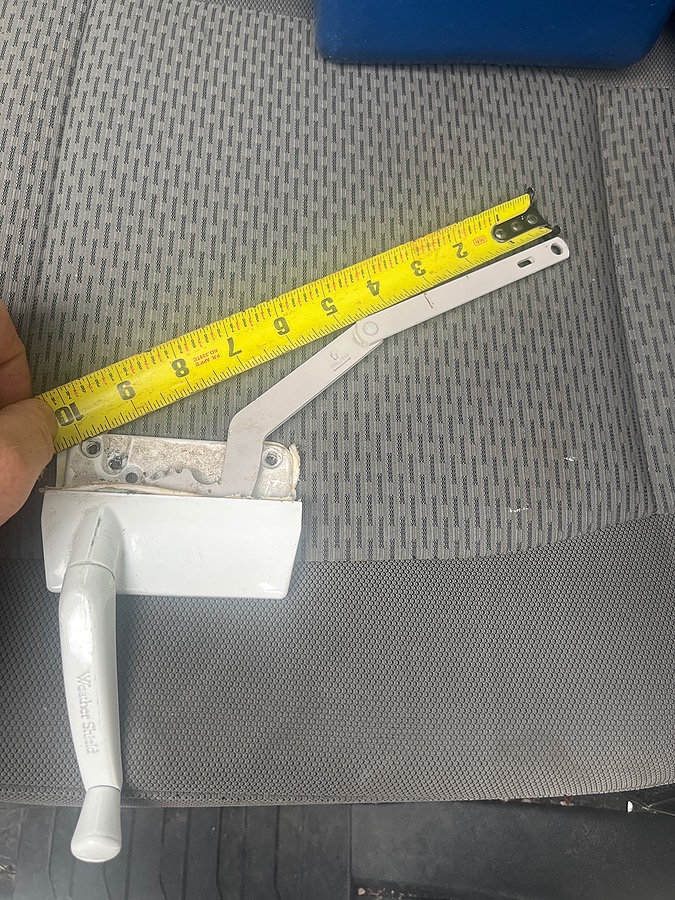

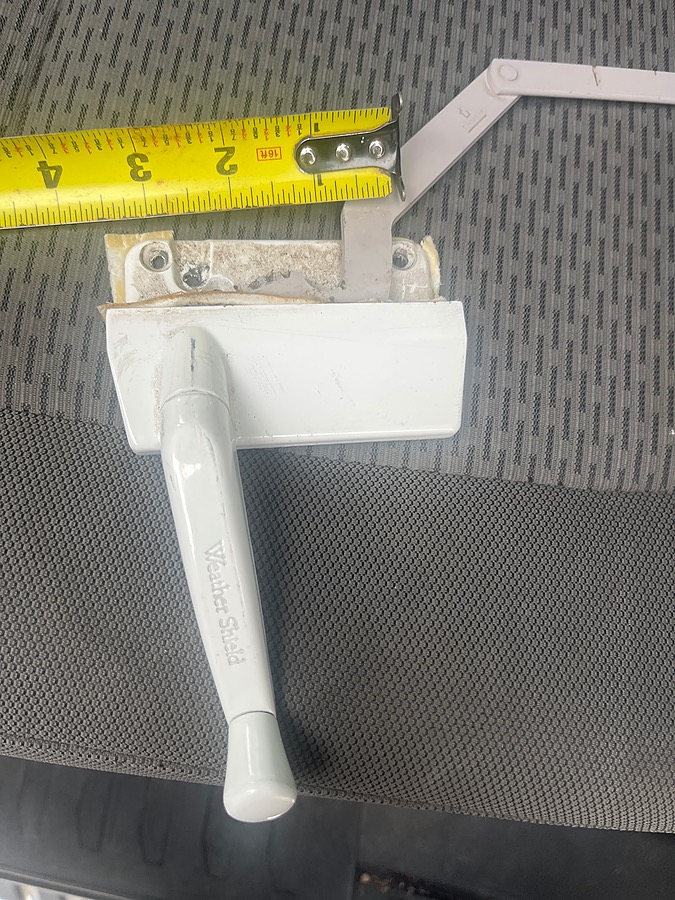

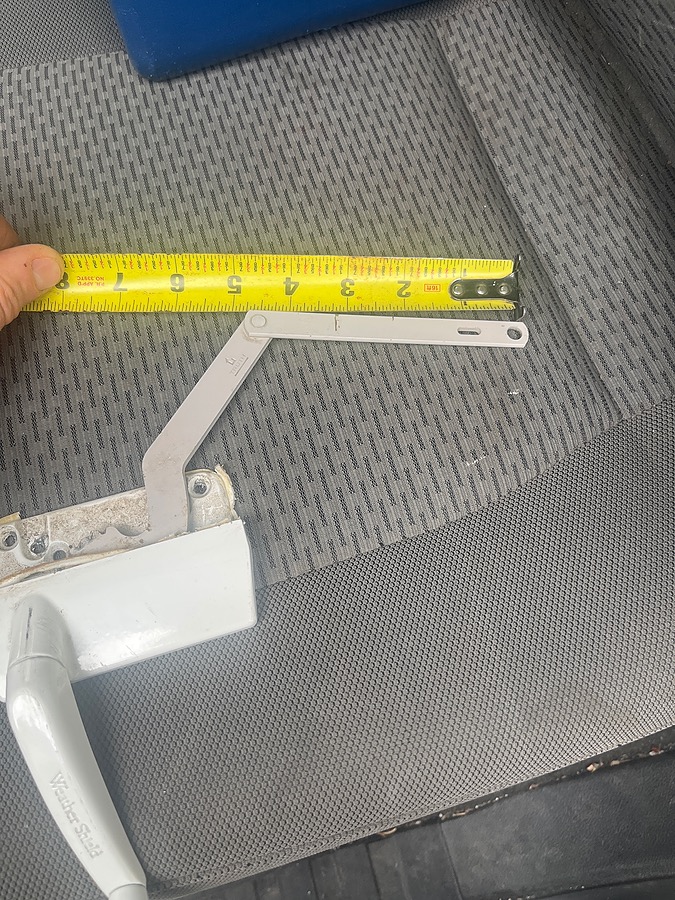

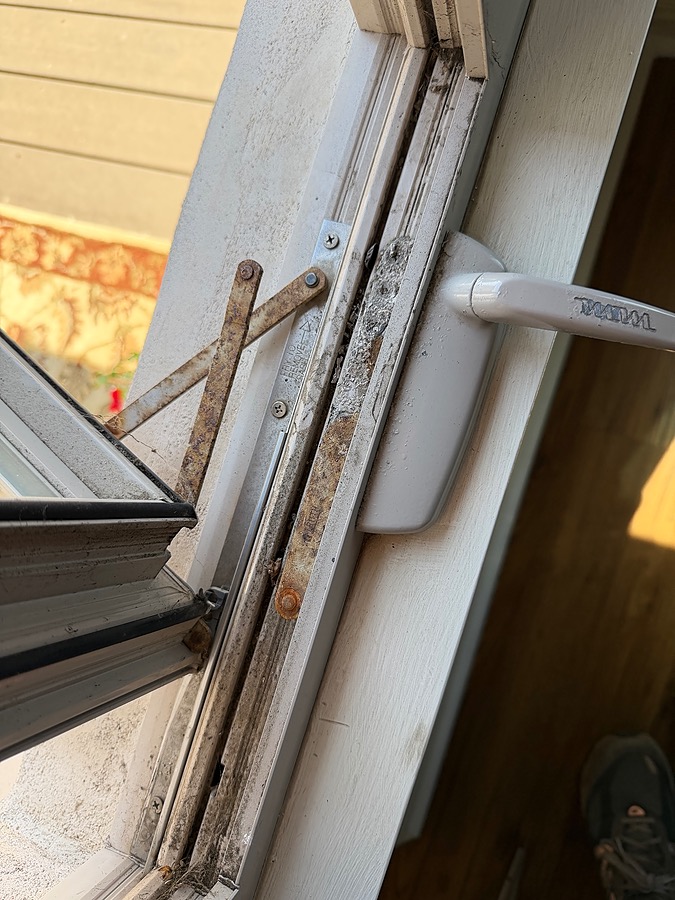

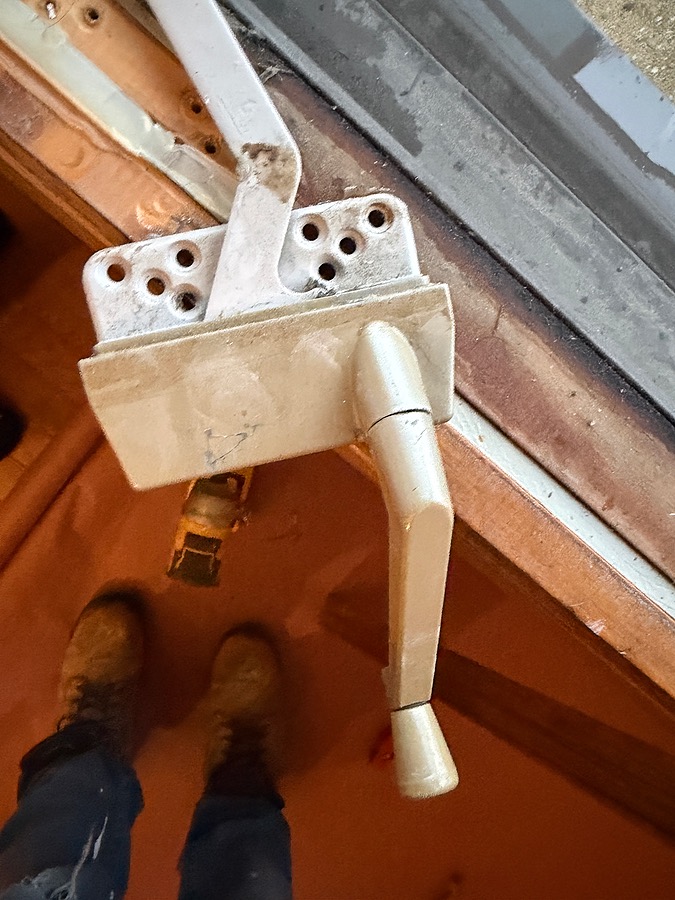

Need new crank mechanism left and right

Need to know if you can make one or if you have one

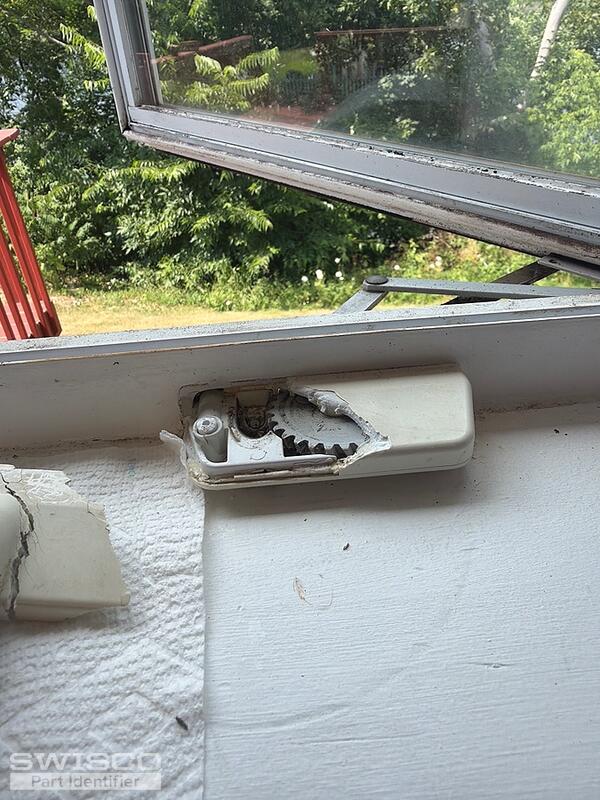

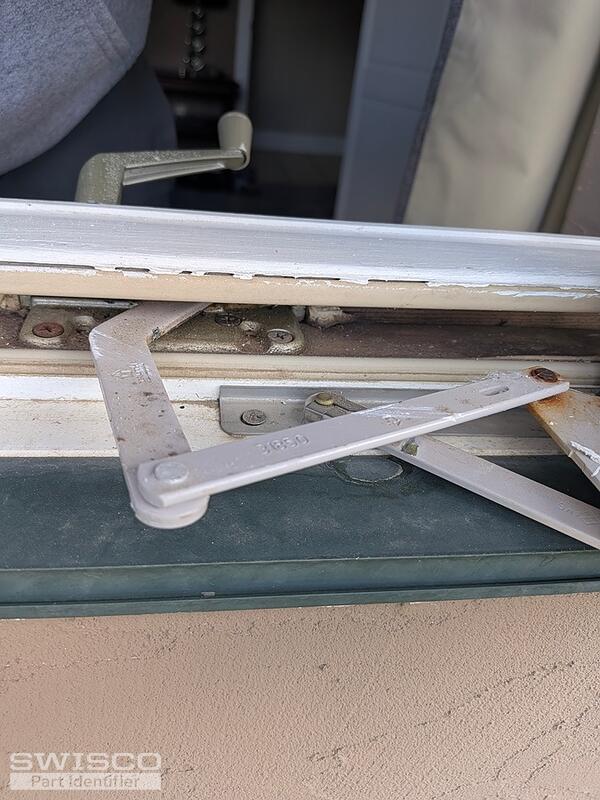

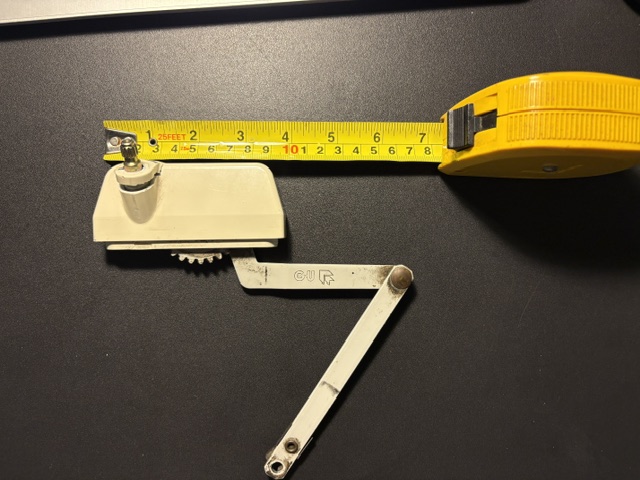

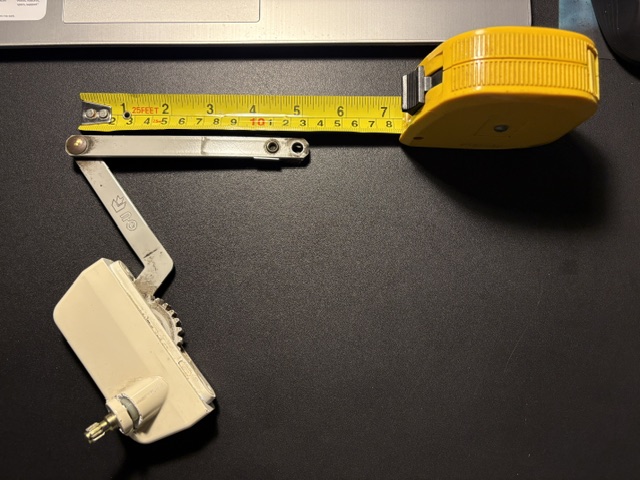

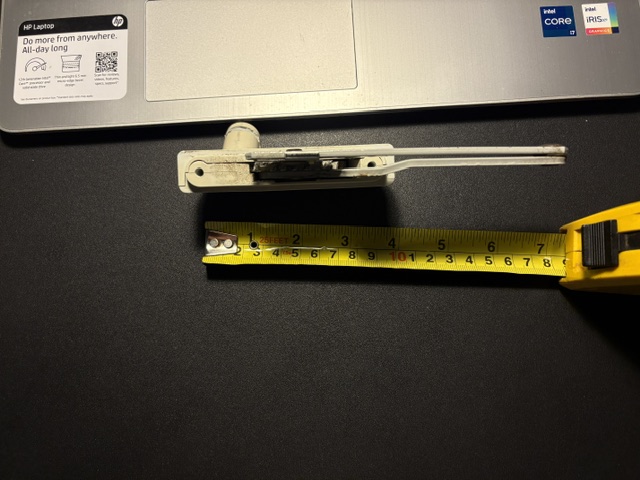

Replacement operating mechanism

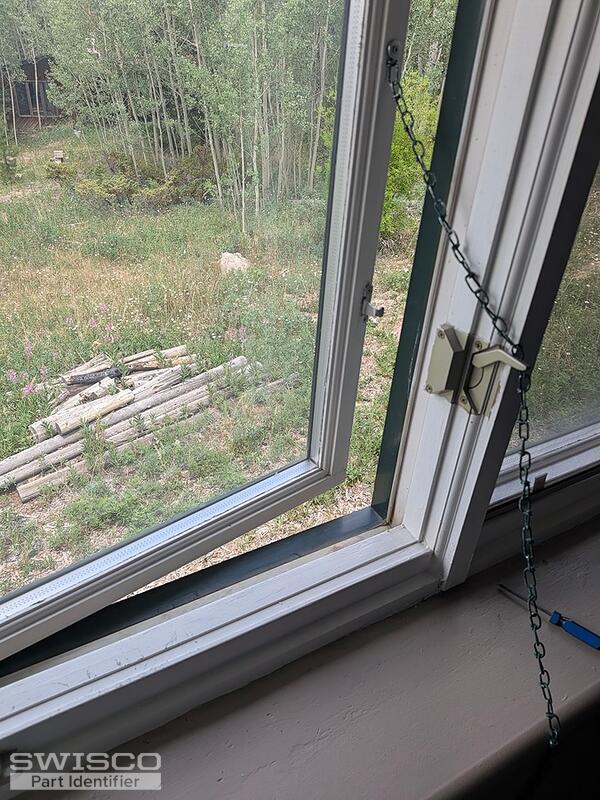

Can you identify. No visible markings anywhere on window. House was built early to mid nineties.

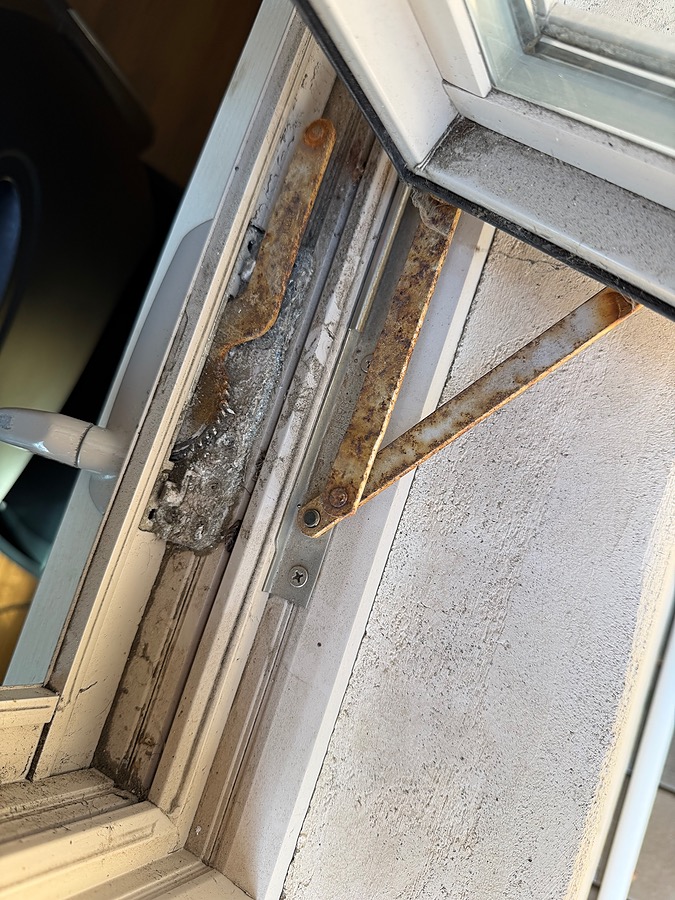

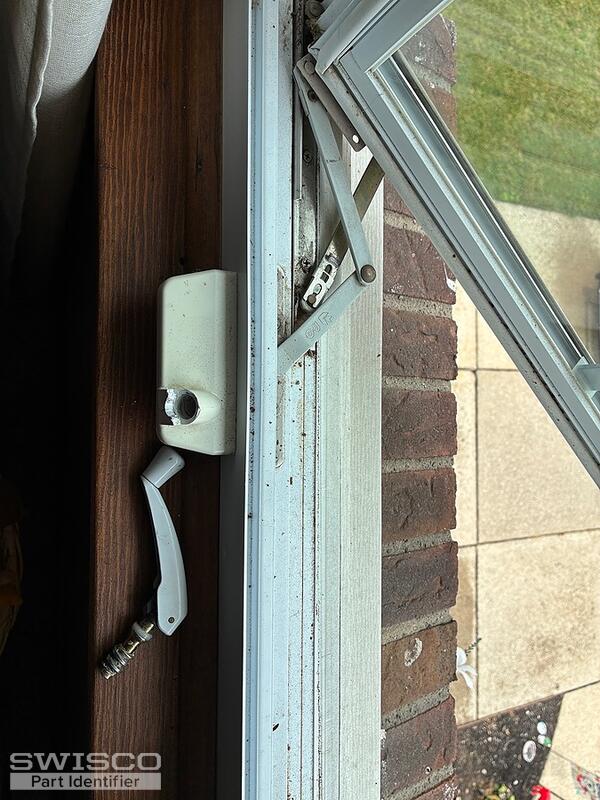

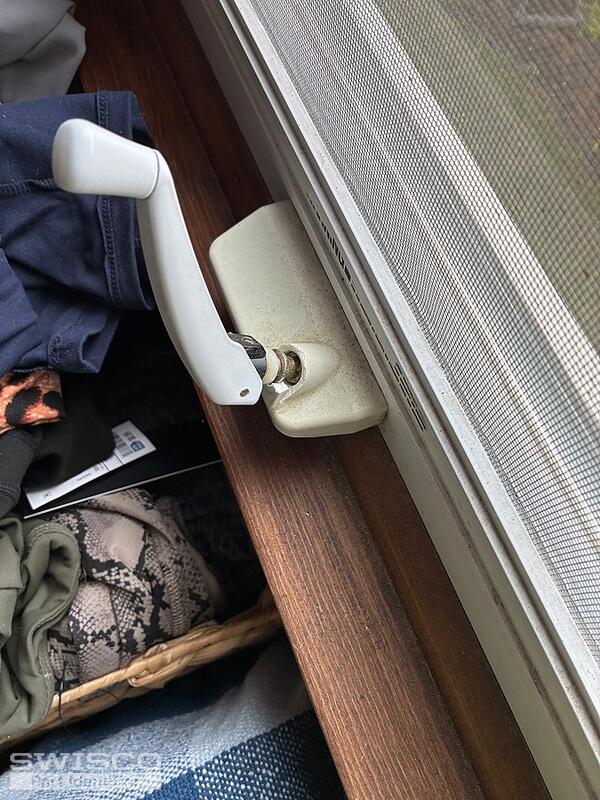

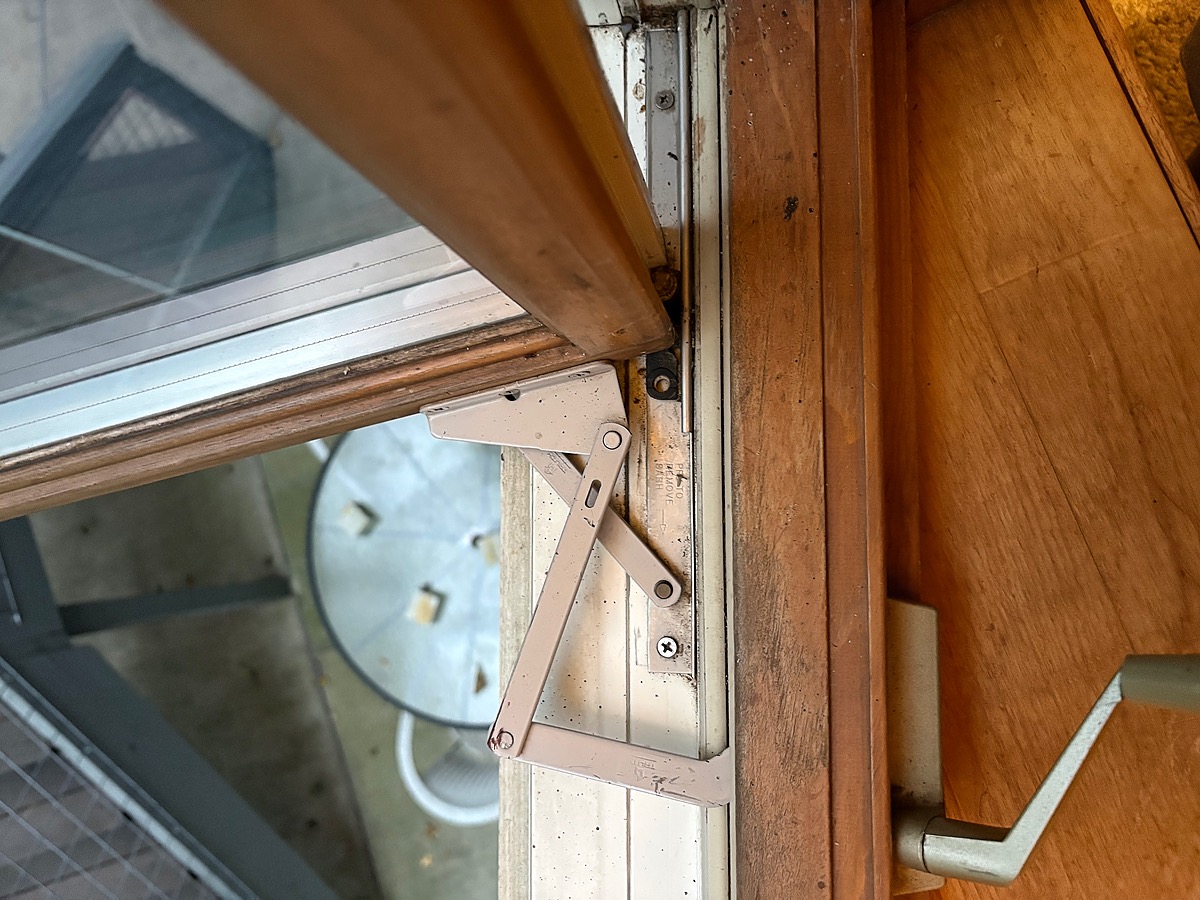

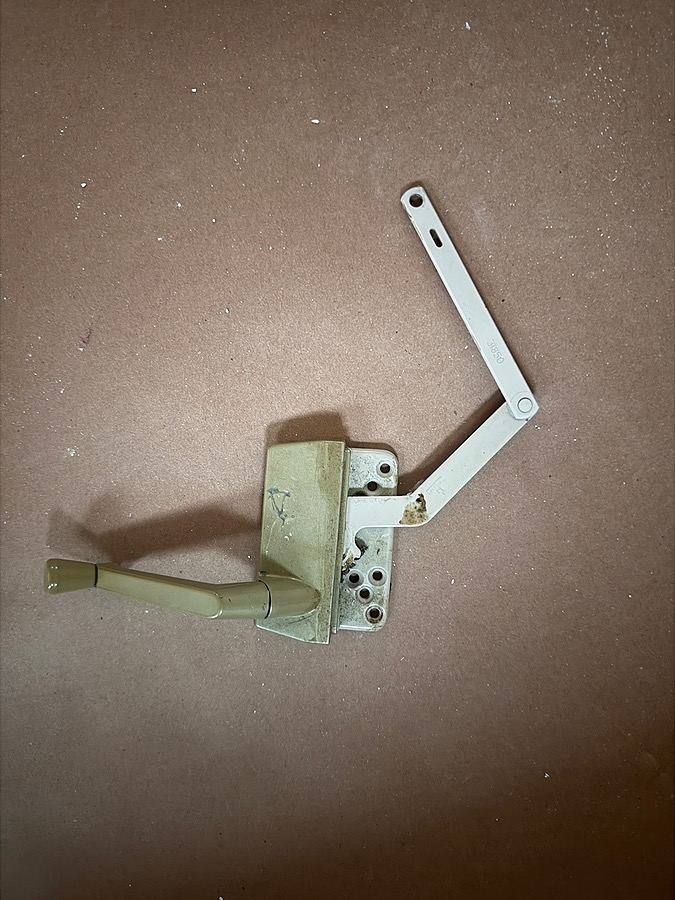

Casement Window crank mechanism, looking from outside-right side.

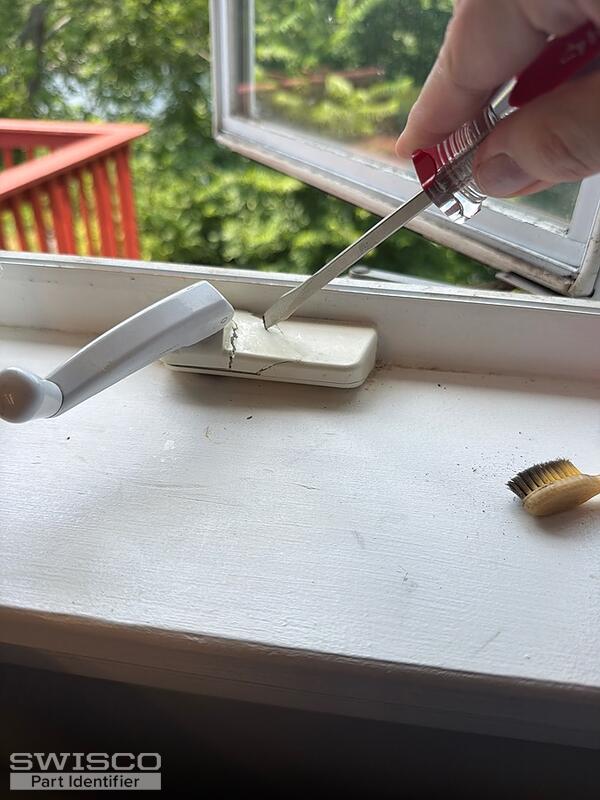

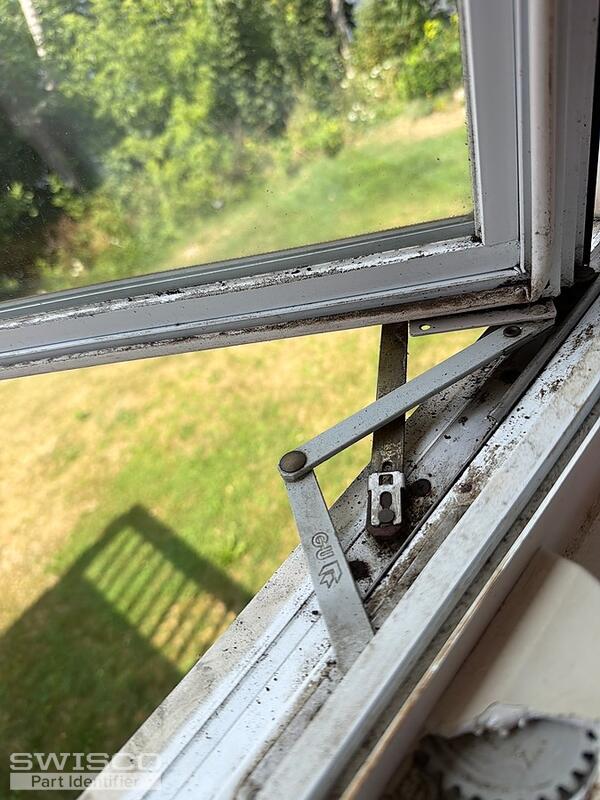

I purchased 2 casement windows from Home Depot. The manufacturer's name is Silverline. The crank mechanism gears got stripped, and I need that unit replaced. The numbers I have from the receipt are:7500 Series Casement 50-1/4" x 35-1/2"SKU# 515-664I'm looking for sepeate pricing on the mechanism a ... (cont.)

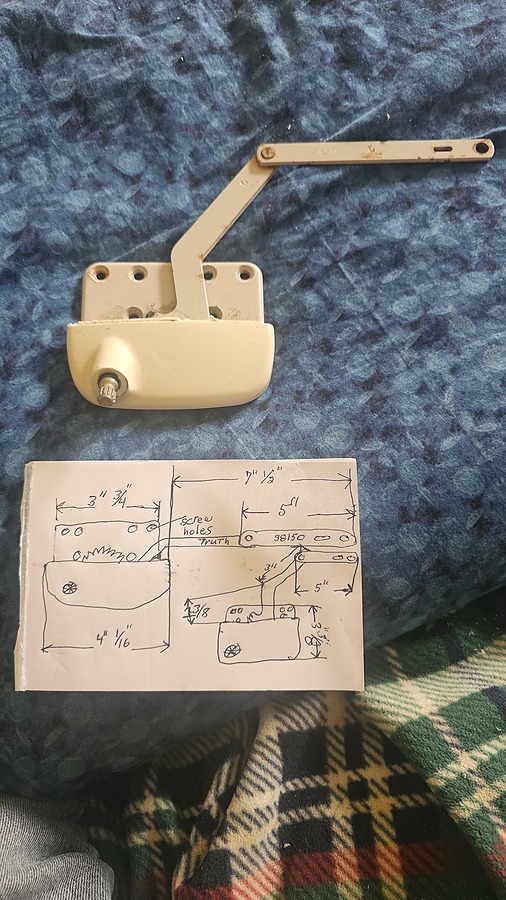

Need help finding this part

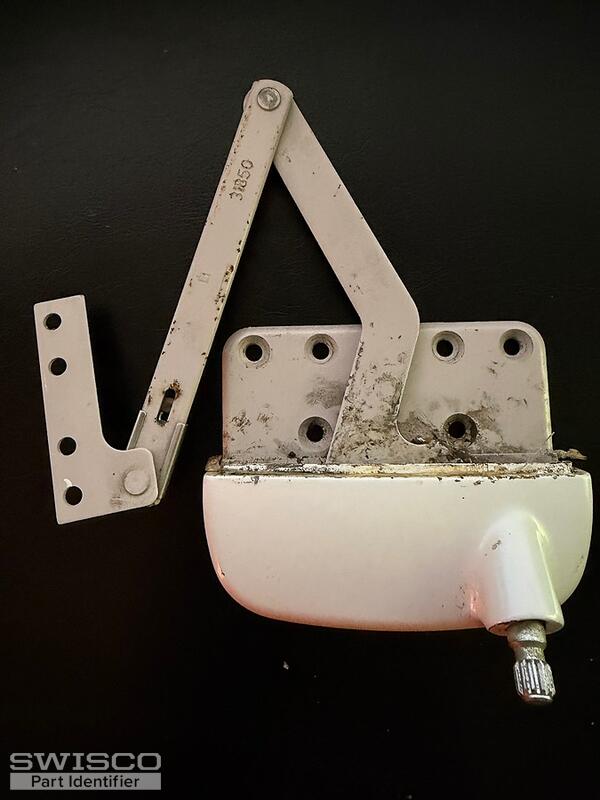

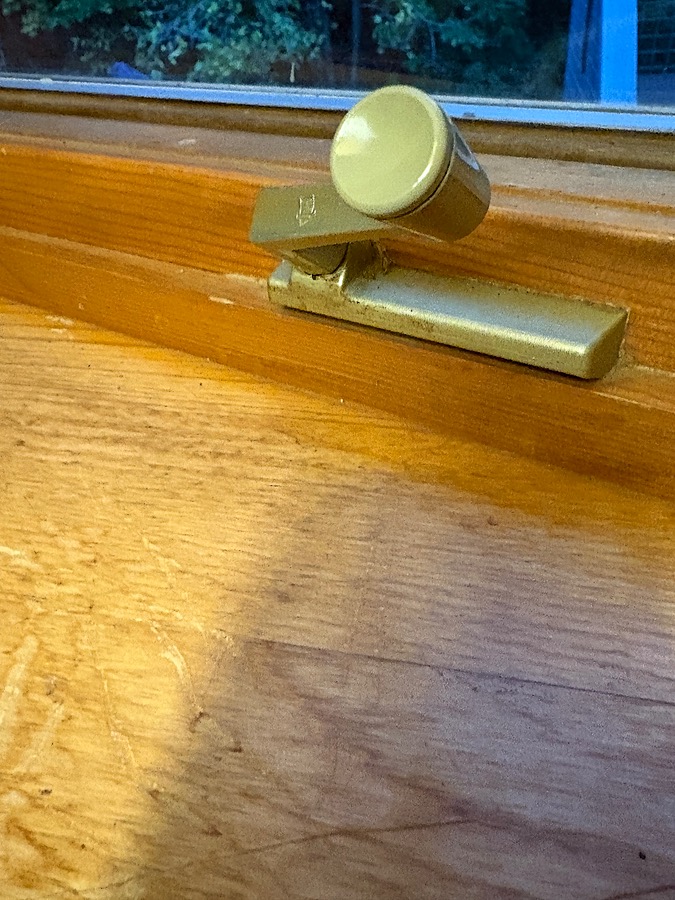

Part number 31850 and I need to find the same color and the crank handle and Shash lock
