Truth Dyad Operator

Product Code: 39-315

Truth Dyad Operator

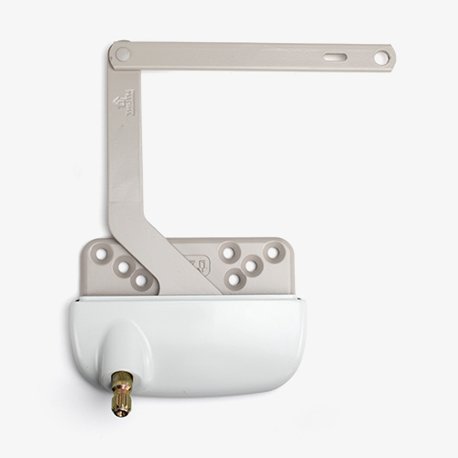

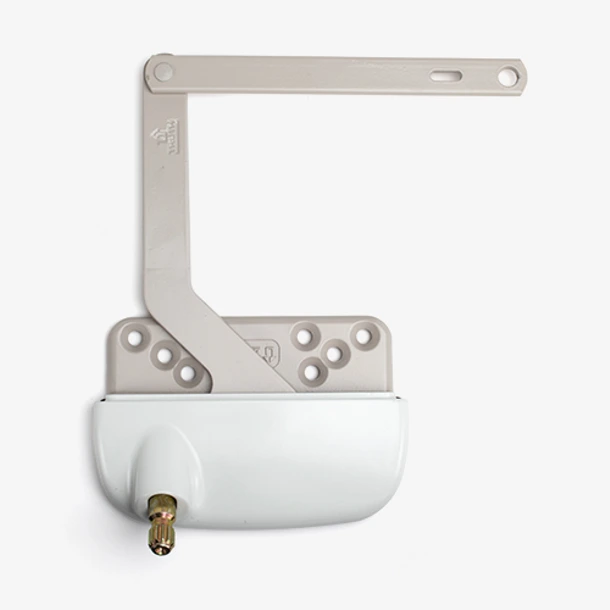

Main product image of the 39-315 Truth Dyad Operator

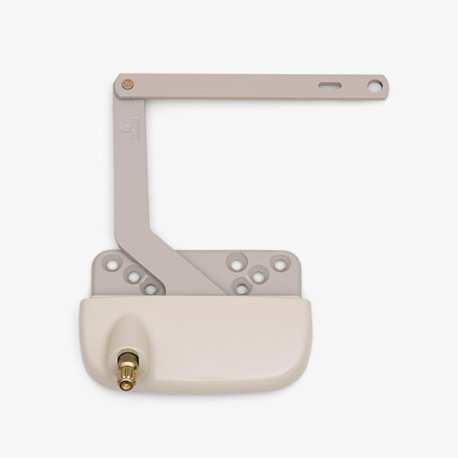

39-315 in the Beige color option

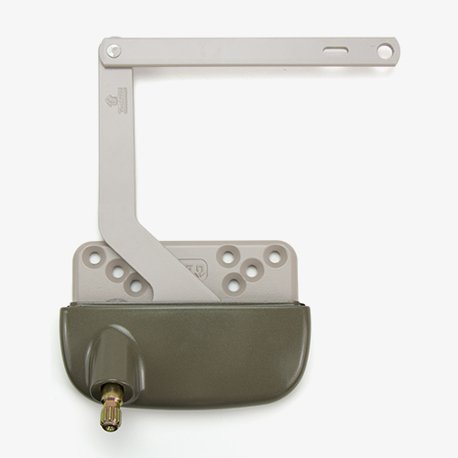

View of 39-315 in the Clay color option
How to Replace a Discontinued GU Operator
Anatomy of a casement window
$24.61/each
Quantity Price
1-4 $24.61
5-9 $22.38
10-24 $21.30
25-49 $20.29
50+ $19.28
Please Note: Bulk pricing applies only to purchases of the same option
Option:
beige beige
clay clay
white white
Product Description
This is a sill mount Truth Hardware split arm crank operator used to open and close casement windows.
  • See SWISCO product 39-316 for the opposite handed version.

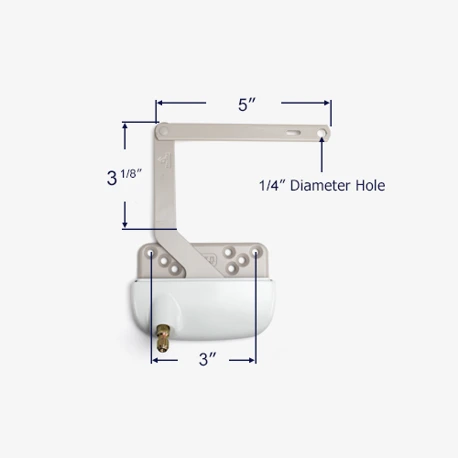

  • 5" link arm.
  • 11/32" spline; handle sold separately.
  • Will provide a full 90 degree window opening.
  • Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
  • Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

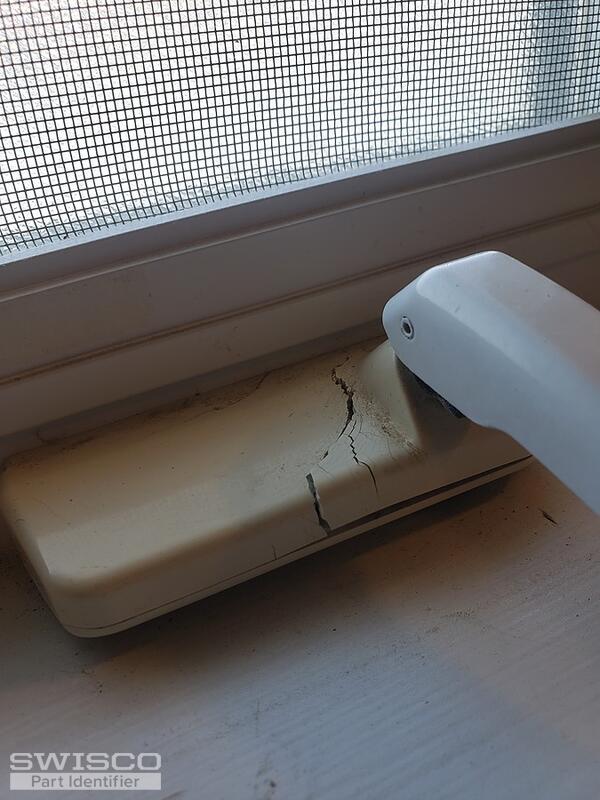

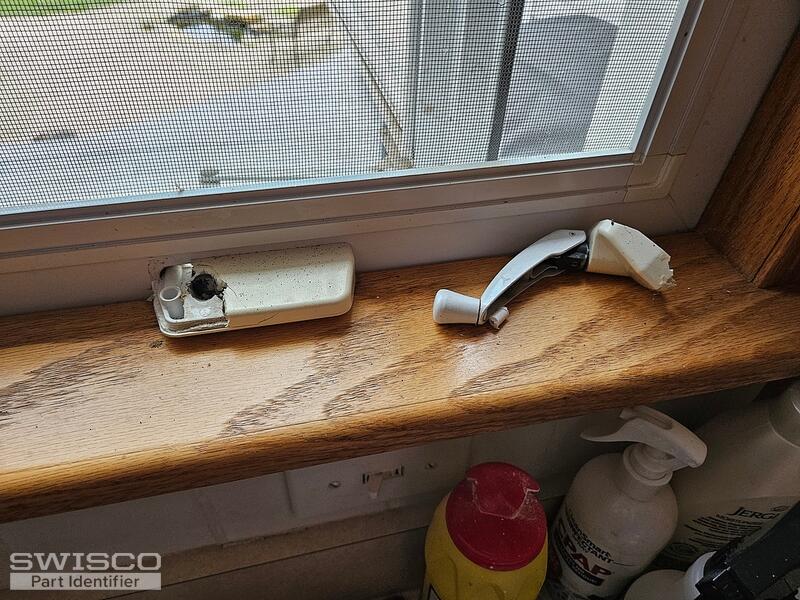

Broken plastic part that holds crank handle in placeThis discussion includes image(s).This discussion includes video(s). 2 Oct 8, 2021

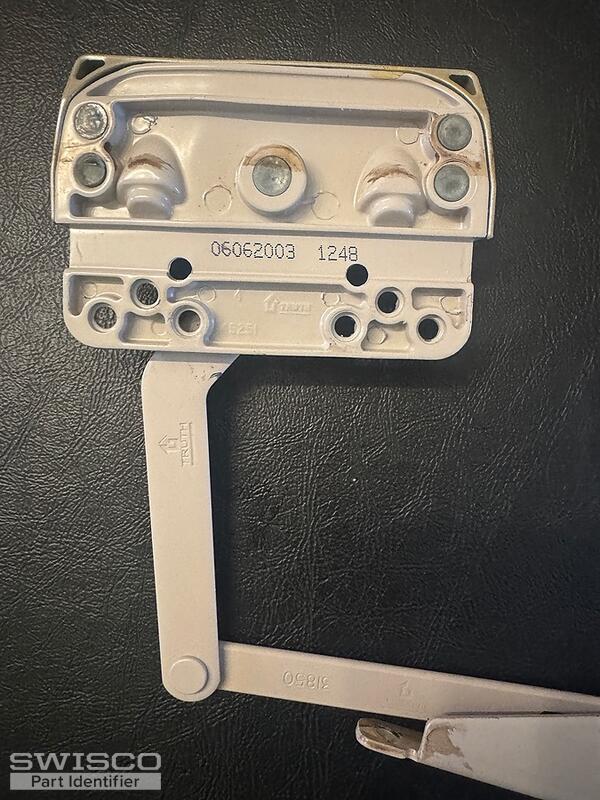

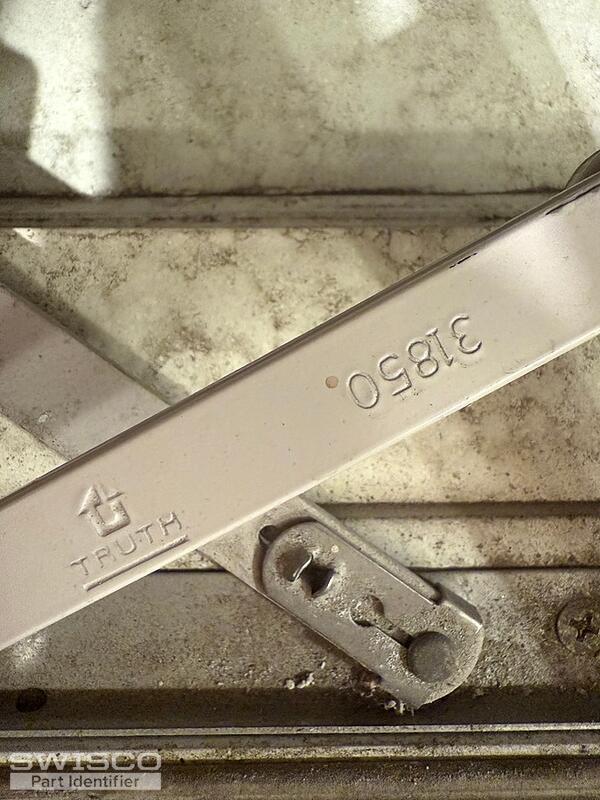

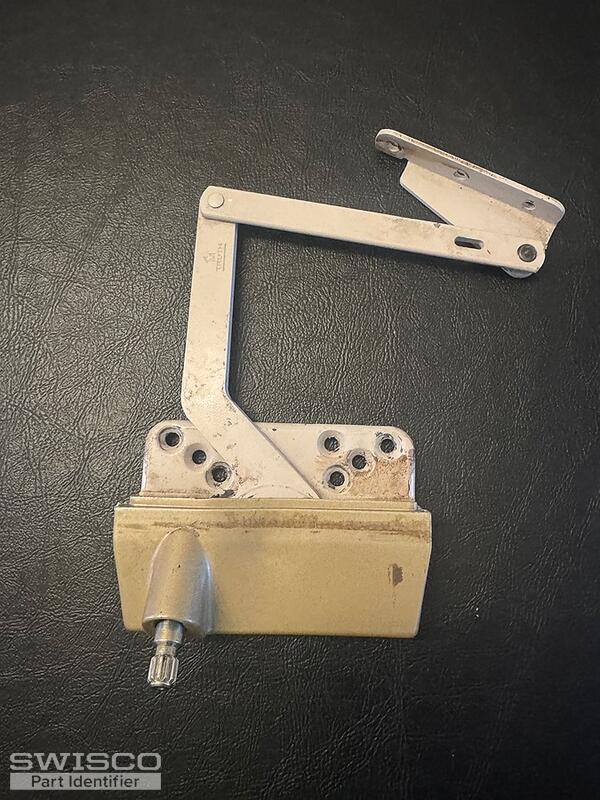

Truth operator This discussion includes image(s). 2 Oct 8, 2021

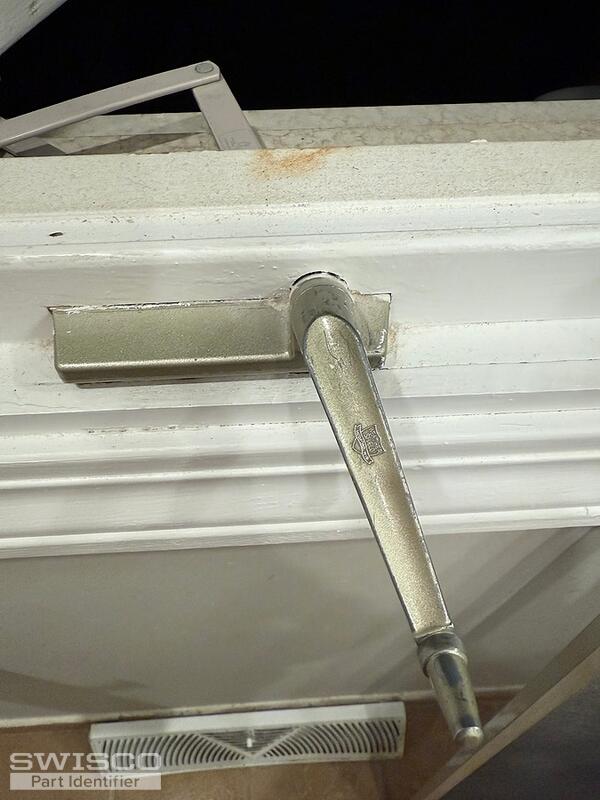

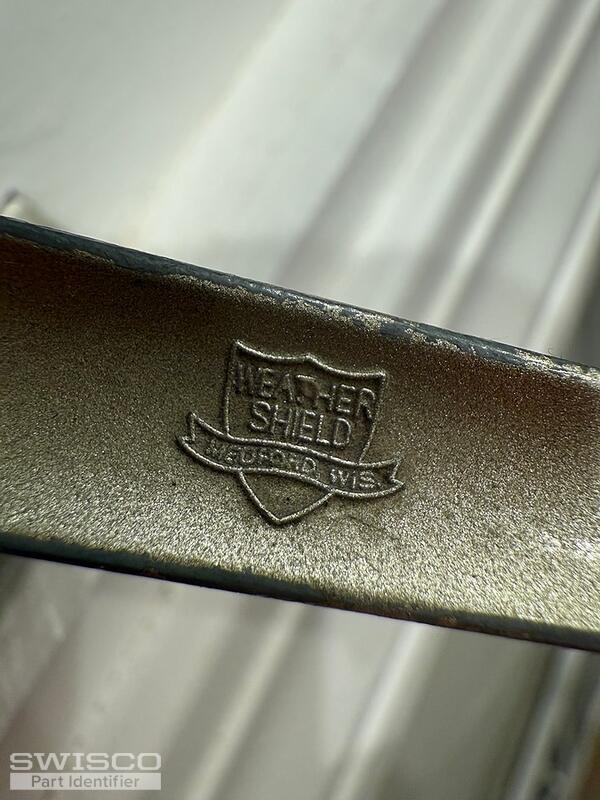

Window hardware This discussion includes image(s). 2 Sep 29, 2021

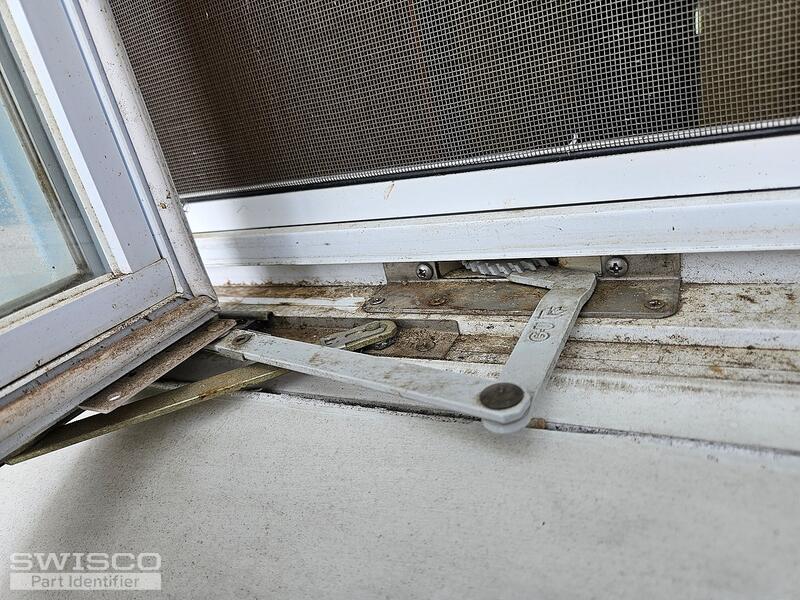

Casement Window OperatorsThis discussion includes image(s).This discussion includes video(s). 2 Sep 28, 2021

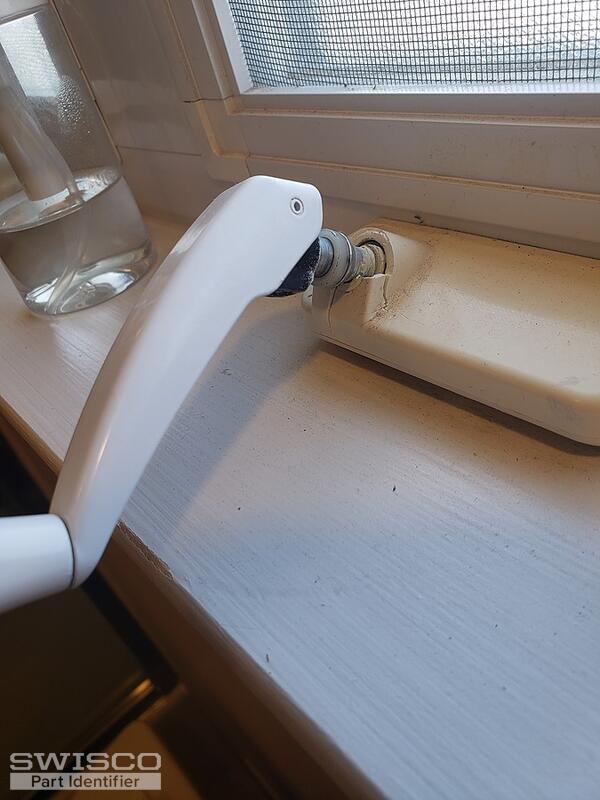

new casement operatorThis discussion includes image(s).This discussion includes video(s). 2 Sep 22, 2021

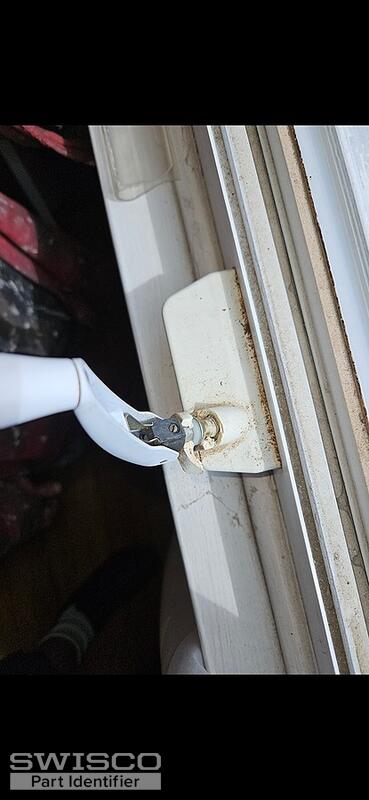

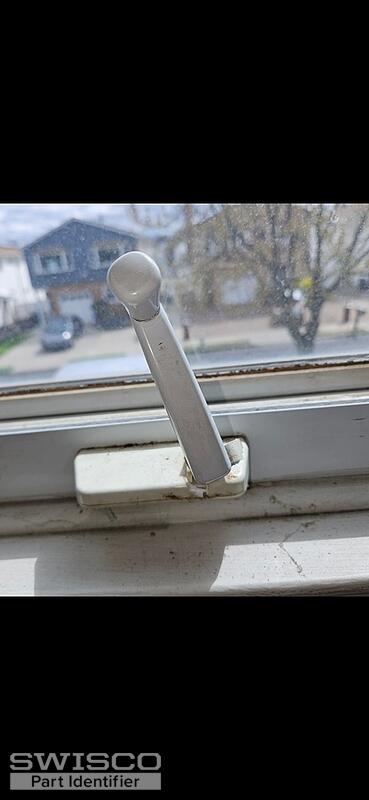

Window Crank ReplacementThis discussion includes image(s). 2 Sep 20, 2021

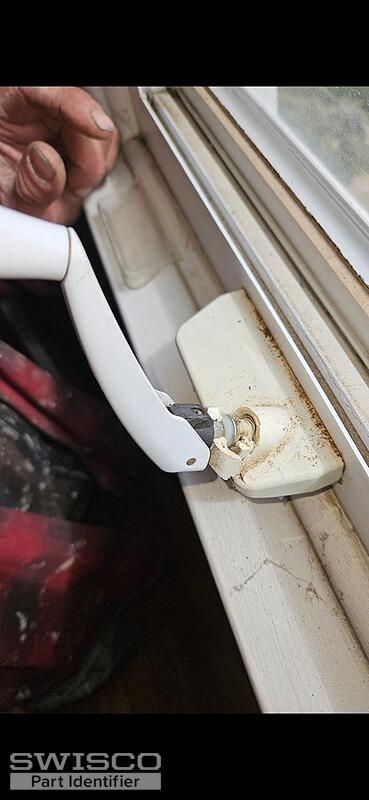

Window crank operatorThis discussion includes image(s).This discussion includes video(s). 4 Sep 18, 2021
Awing window operator This discussion includes image(s).This discussion includes video(s). 2 Sep 17, 2021
