weatherstripping and sash removal : SWISCO.com

Handy Person from New mexico

Jan 24, 2024 7:51 pm

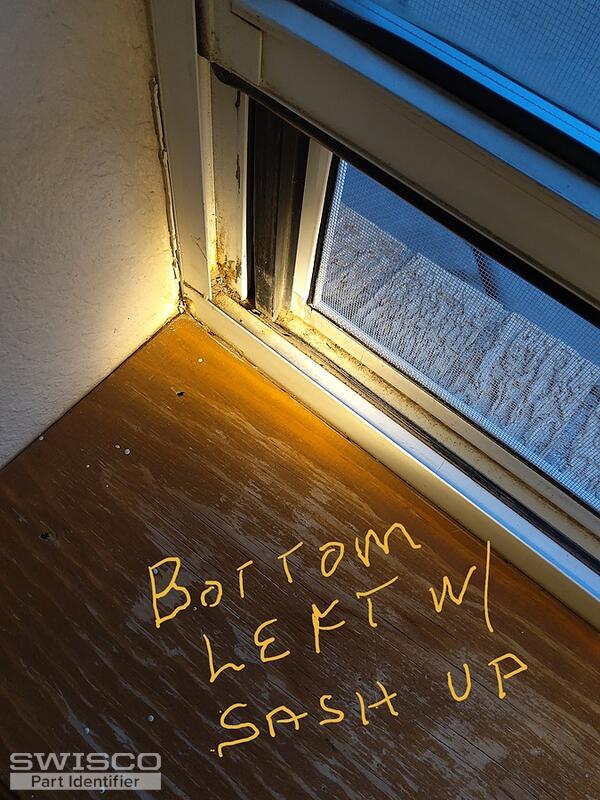

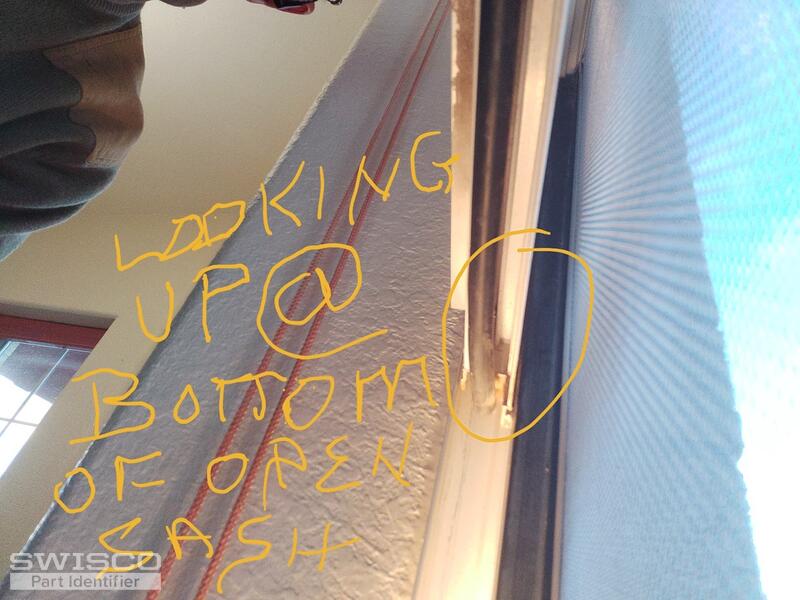

Windows are original construction pre 1995. I can not remove the weather stripping for identification WO removing the sash which does not appear to use tilt latches.I can not figure out how to get the sash to move either L or R. In order to remove it. Can u help? Thanks, g

5 user uploaded images

4 Replies

Casey from SWISCO

Jan 25, 2024 9:59 am

Hello,

I would recommend starting by looking over the video below, which shows the general process of removing a non-tilt window sash.

Once that is done, we would need to see an end profile photo of your weatherstripping uninstalled to compare to our inventory. In the meantime, you're welcome to look through our selection here.

Handy Person from New mexico

Jan 27, 2024 6:59 pm

Continuing conversation...

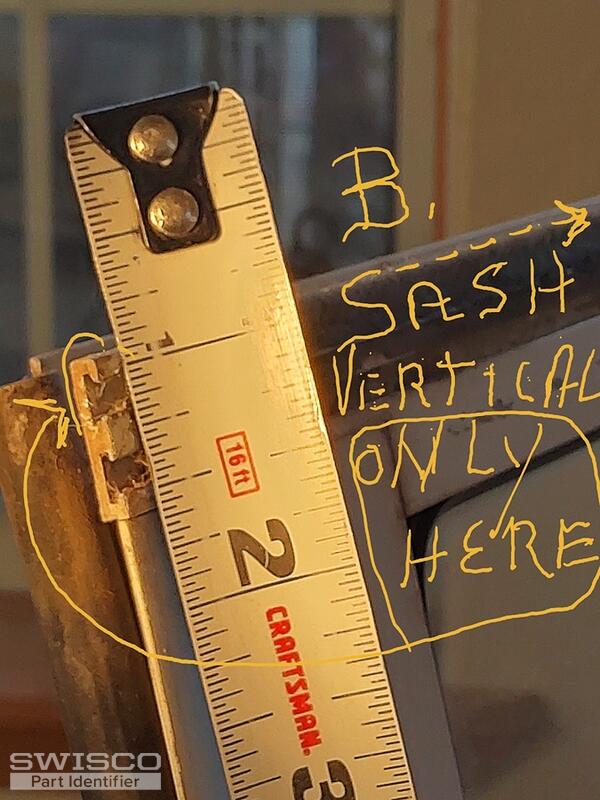

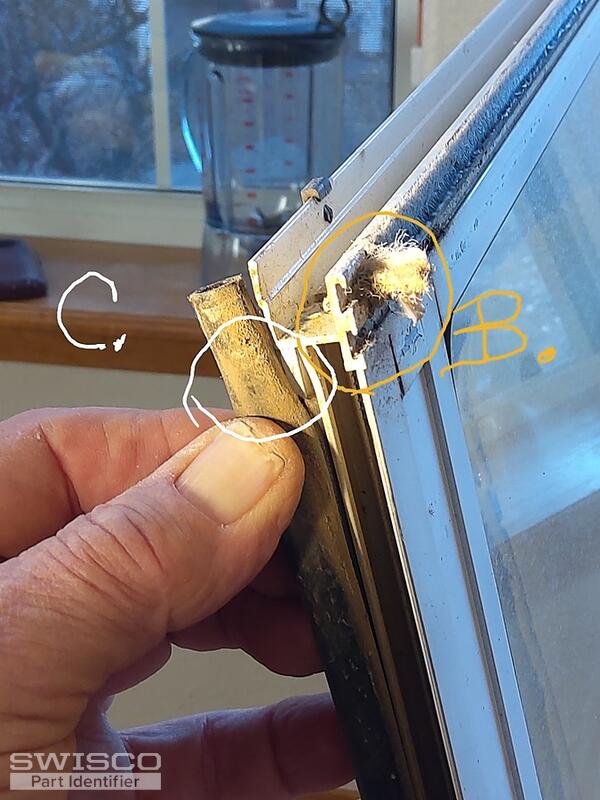

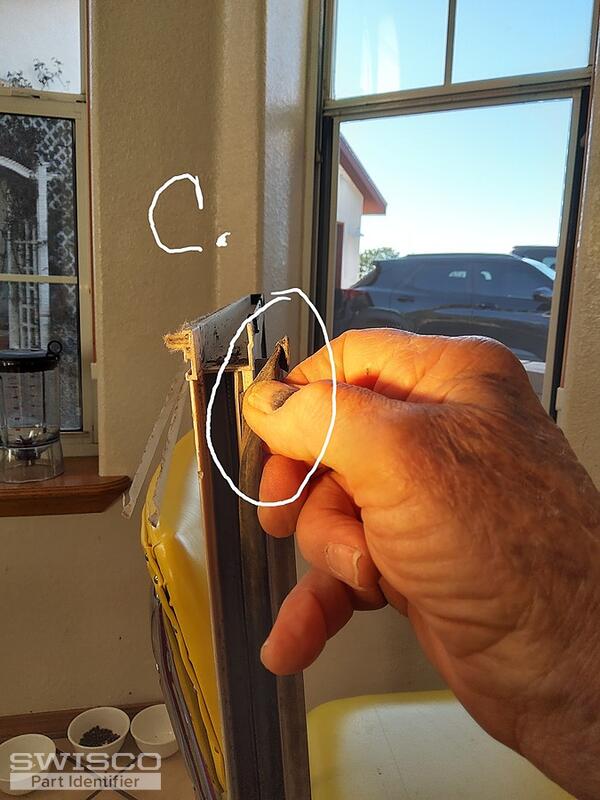

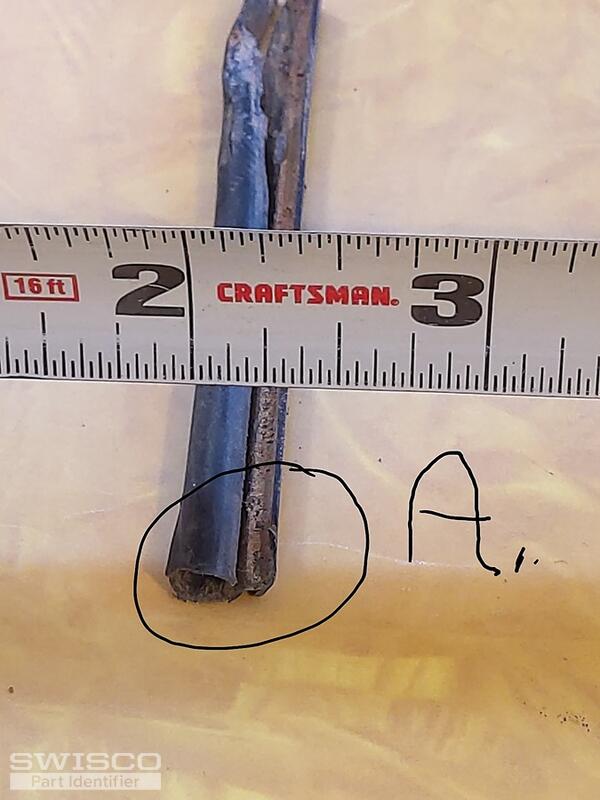

IDing my seals - imgs attached. Pls advise if attached imgs are not adequate. Thanks, g

5 user uploaded images

Casey from SWISCO

Jan 29, 2024 8:53 am

Thanks for getting back to us. I would recommend starting by comparing the specifications of the 58-053 and 58-114 bubble seals with a kerf base to determine if one of them matches yours.

Profile drawing of the 58-053 bubble seal.

Profile diagram of the 58-114

We also offer a selection of wool pile, which you can view here. The determining factor would be how the backing width and pile height compare to our replacement options. Thank you.
