1/2 Channel balance marked # 2330

A quick learner from Florida says:

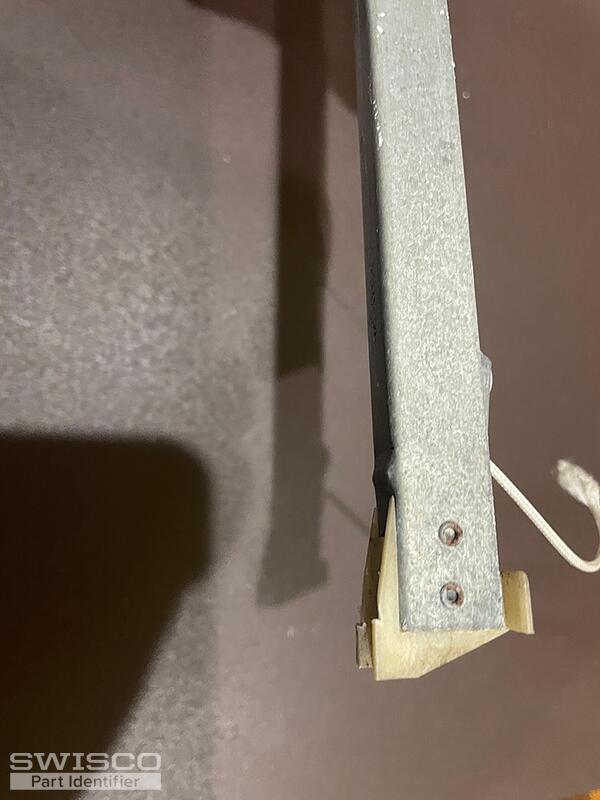

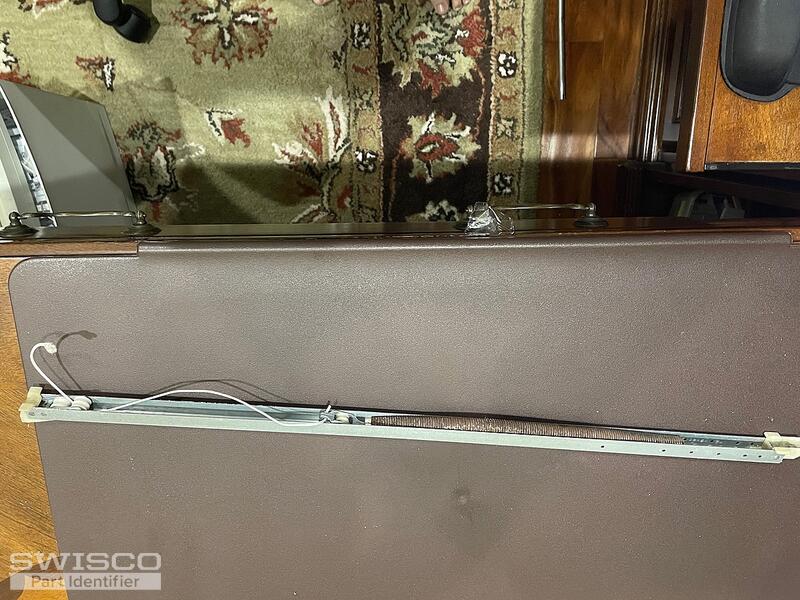

Need two of these. 24" long marked 2330
Thumbnail of the uploaded file named 0AE2364A-308B-4121-87CC-FD62AF3E77BB.jpeg
Thumbnail of the uploaded file named BDFB901C-17D7-46C3-A1C6-01D9EED87C02.jpeg
Thumbnail of the uploaded file named 2B5B53E8-1C63-4B0B-8FE5-611CDCCF9C1E.jpeg
Thumbnail of the uploaded file named DE080E84-58B1-4F03-B0F1-CF20E50FA63C.jpeg
Thumbnail of the uploaded file named 976298EC-ED46-474A-9B2C-77B653E05622.jpeg
Profile picture of Bob
Bob from SWISCO responded:

This appears to be a 24" channel balance, with a 19-005 Top attached. The bottom fitting depends on its depth, or 'heel-to-toe' measurement. See the picture below for reference. If the shoe is 1" deep, then you need an S380-24. But if the shoe is less than that, at 7/8", you need balances with a 15-029 shoe attached. This is not a stock issue item for us but we provide it for you via custom order. Just let me know if that's the case and I can prepare a quote for you ASAP.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Florida says:
Hi Bob,

I think the piece I have may be broken at that spot, but it measures slightly less than an inch.
I will need 2 of these balances.

You were helping me with 2 other cases.

I will also need the following added to the same order with standard shipping:

(2) 90-021
(3) 90-114
(2) S400-11
(6) S400-17
(6) S400-30

Thank you, Felix
Profile picture of Bob
Bob from SWISCO responded:

Hi Felix. I just sent you an email with a purchase link enclosed to order a pair of these 24" balances, stamped 2330, and with the 19-005 Top and 15-029 Bottom attached. Let me know if you have any other questions prior to placing this order. All other items can be added to your cart separately before checkout.
