1984 windows

Quick Learner from denver co
Oct 22, 2023 4:55 pm

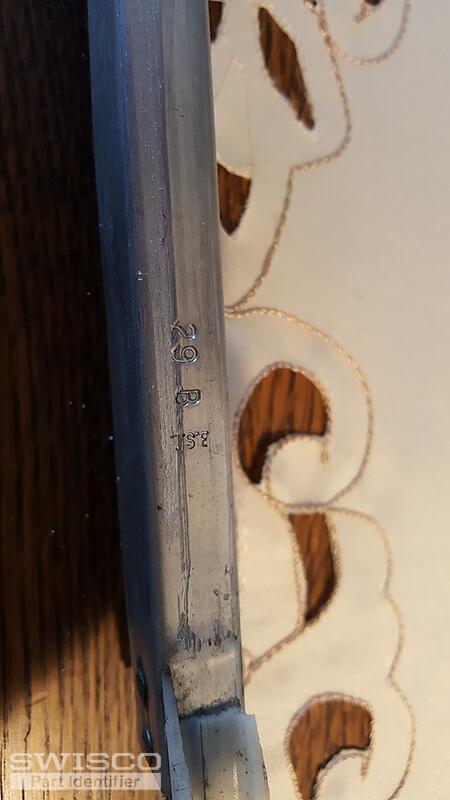

Length 29" B.S.I-B. looks like a piece broke off in the window top side (jam)

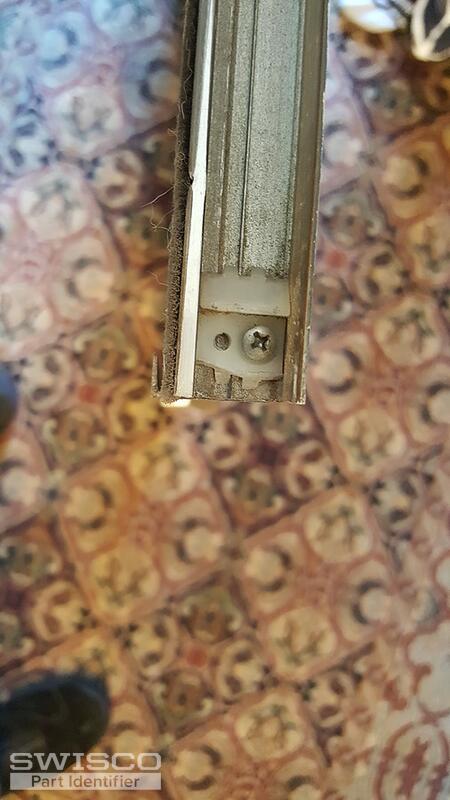

20231022_135924 20231022_140227 20231022_140237 20231022_140303 20231022_143453
5 user uploaded images
2 Replies
Quick Learner from denver co
Oct 22, 2023 5:17 pm
window weight is 15.6 lb.
20231022_135924
1 user uploaded images
Casey
Casey from SWISCO
Oct 24, 2023 10:18 am
SWISCO
EXPERT

Hello,

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

I would also recommend double-checking the length of your metal channel, not including the end fittings, since your stamp code would generally indicate that you would have a 30" long metal channel. You'll also need 2920 spring strength options for your replacement balances to support between 12-16 lbs.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

It also looks like you have a broken top sash guide. We may be able to supply a suitable replacement but we would need to see an undamaged version removed from the other side or from an identical window in the house to compare to our inventory. Thank you!
