2018 PGT windows

Quick Learner from Fort Myers Beach FL

Jul 6, 2023 3:39 pm

I have 3 PGT windows that were installed in 2018. They were underwater and have broke the balances. I want to be sure to order the correct parts.

One has 2 housings on each side with 8 on them. Pictured

One has 2 housings on each side with an 8 and an 12. Pictured

One has 1 housings on each side with 8 on them. Pictured

Thanks

Tim

PGT Window balances 1

PGT Window balances 2

PGT Window balances 3

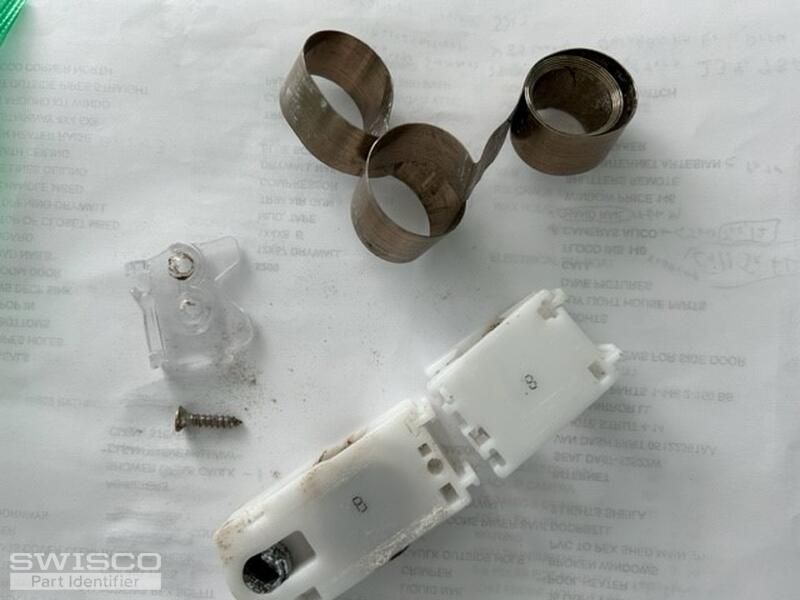

PGT Window balances 5

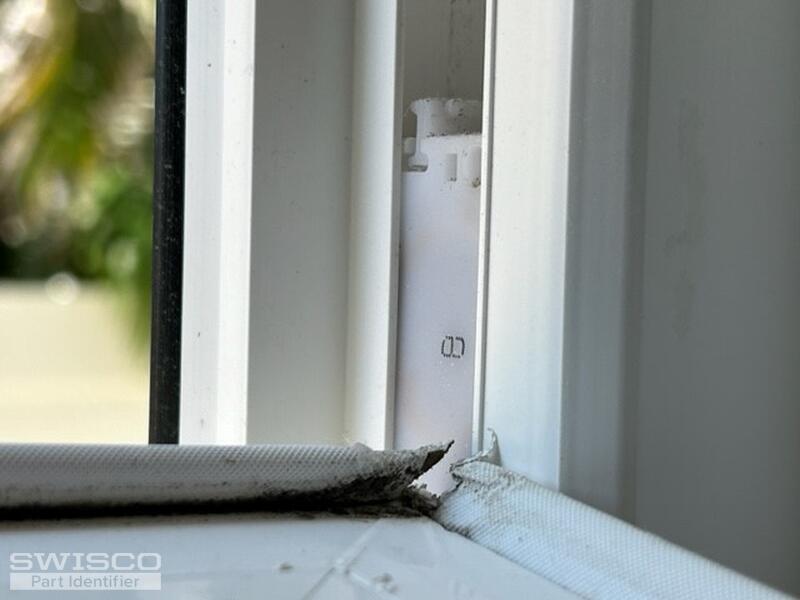

PGT Window balances 6

5 user uploaded images

1 Replies

+ Add a Comment

Bob

Bob from SWISCO

Jul 6, 2023 10:13 pm

SWISCO

EXPERT

Hey Tim. Is the housing 7/8" thick? Please confirm. If so, I believe you have our Series 210 Coil Balance systems. For the window that has two housings on each side with '8' stamped on them, use the S210-16 16 pound assembly on both sides. For the window that has two housings on each side with an '8' and '12' stamped on them, use the S210-20 20 pound system. Finally, for the window with single housing on each side with an '8' stamp, use the S210-08 8 pound assembly. Let me know if you have further questions.

+ Add a Comment

Products and resources found in this discussion

8 lbs Series 210 Roller-Tilt .880, Single

8 lbs Series 210 Roller-Tilt .880, Single

20 lbs Series 210 Roller-Tilt .880, Dual

20 lbs Series 210 Roller-Tilt .880, Dual

Clear Bracket

16 lbs Series 210 Roller-Tilt .880, Dual

16 lbs Series 210 Roller-Tilt .880, Dual
