24" Channel Balance Identification is this S371-2320?

Quick Learner from Florida
24" Channel Balance Identification is this S371-2320? The outside dimensions of the shoe and top seem right but the top part 19-031 does not have the middle divider that the tab in the track may require. Please identify. Thanks.

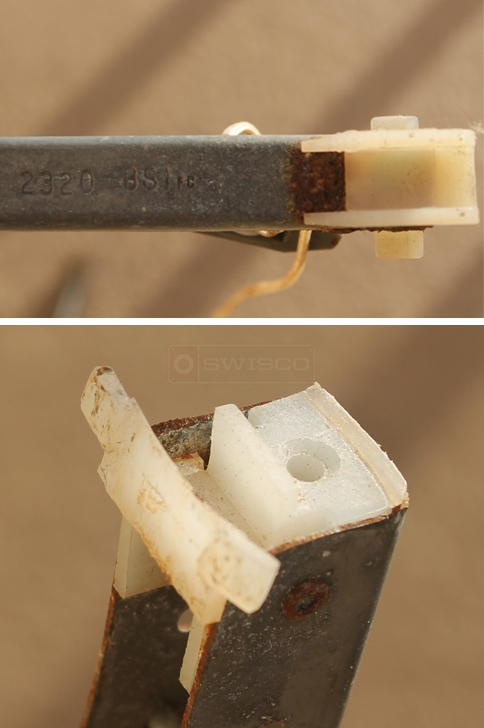

User submitted photo of their window hardware.
6 Replies
Paul
Paul from SWISCO
SWISCO
Expert
No, I don't believe this is the Series 371 channel balance. Instead, it looks like you have something that will need to be custom made. It looks like your fittings match our 19-041 and 15-005. Can you confirm? Can you also tell me how many you need?
Quick Learner from Florida
No, the 19-041 is too wide at 1", mine is 7/8". Also, mine is only 5/8" high, although the 15/16" may not really matter due to being on the side of the balance. The 377 series may be better, it has the same shoe and from what I can see the 19-018 is the correct width. You have my other pics and can see if it might be better. The rusty take out clip I've added a photo of, it's just a strip of metal and might work with almost any top that can hook behind it. In looking at your clips, not sure any would replace it.
Thanks.

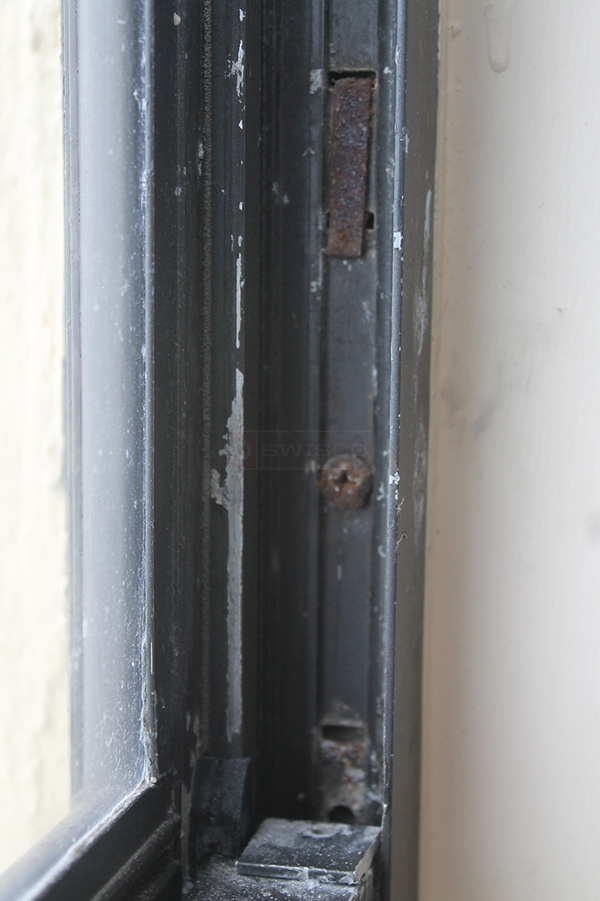

User submitted a photo of window hardware.
Paul
Paul from SWISCO
SWISCO
Expert
I'm sorry, that was a typo on my part! I did not meant the 19-041, but the 19-042 instead. This looks like the best match for your top guide. As for the metal clip you show in this new picture, it appears to be a match for our 16-002 take-out clip.

If you would like me to custom make a balance with our 19-042 and 15-005 shoe, let me know how many you'd like and we can get started.
Quick Learner from Florida
The 19-042 looks right. Also, the 16-002 looks like it may work. I'd be looking at two balances to start. Thanks
Paul
Paul from SWISCO
SWISCO
Expert
Great. We will email you a custom order form immediately.
