24" Milgard Channel Block and Tackle Window Balance

Home Owner from Ventura, CA
Nov 18, 2023 3:01 pm
Hi,

Can you please advise on the product we need to order?

The ones I have do not have any markings or numbers.

Thanks,
Beau

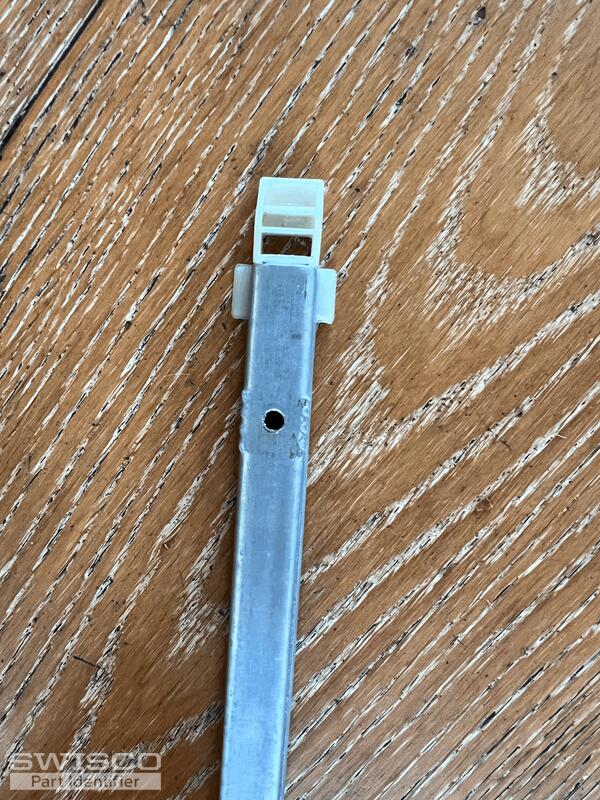

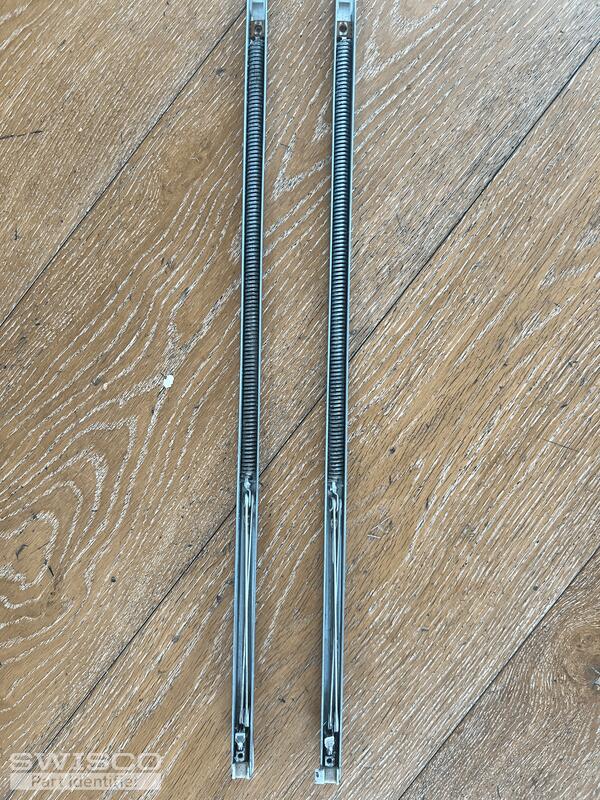

tempImage3vfWLL tempImagedq2Np9 tempImageQdG0qm tempImageCMDaJ9 tempImageziU2az
5 user uploaded images
1 Replies
Bob
Bob from SWISCO
Nov 18, 2023 3:46 pm
SWISCO
EXPERT

Hey Beau. Is the metal channel, not including the nylon attachments at both ends, 24" long? If so, based on the style of the attachments this looks like an S395-24. You'll have to pick a stamp option, which designates the strength of the balance. Since there's no stamp on your old balance, what you should do is weigh the window sash the balances support. You can then match that exact weight with one of the weight ranges listed alongside each stamp option under the product description on the S395-24 shop page. Let me know if you have further questions.
