2730

Home Owner from Amarillo, TX
Feb 15, 2023 9:55 am
Hello, at first I thought the S395 would be the replacement, but the bottom piece looks different, and 1/8" wider than my part.

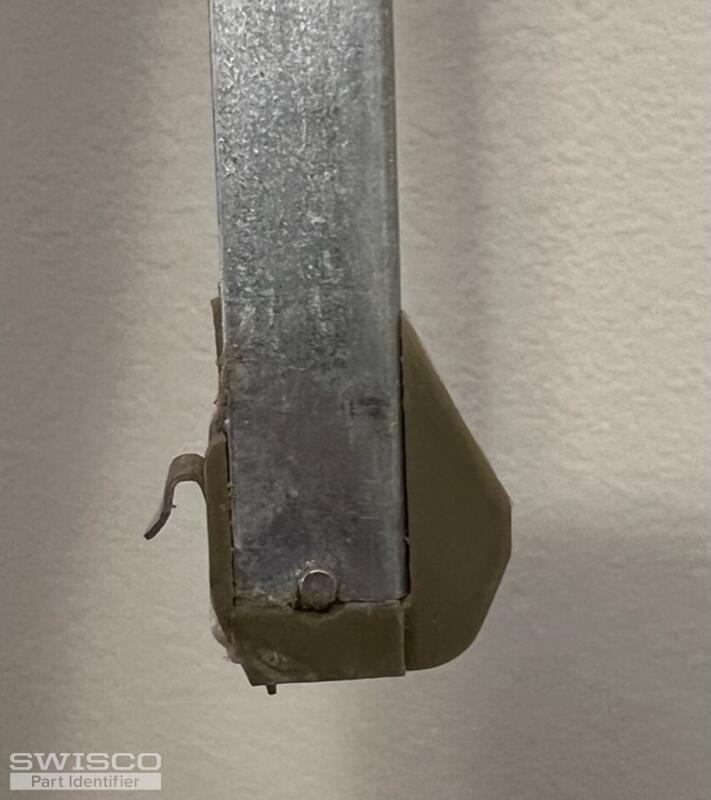

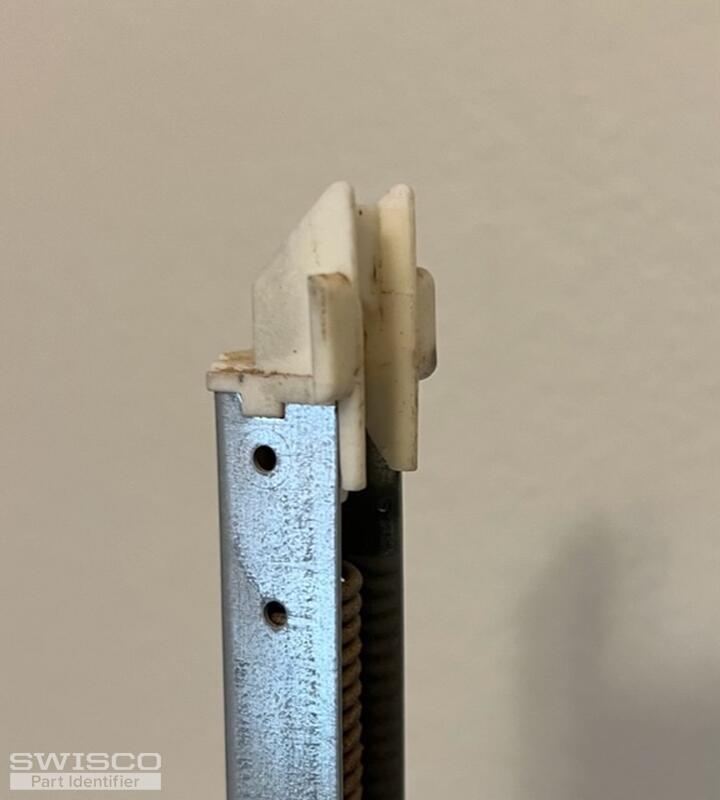

IMG_5648 IMG_5647 IMG_5645 IMG_5644 IMG_5638
5 user uploaded images
5 Replies
Casey
Casey from SWISCO
Feb 16, 2023 11:00 am
SWISCO
EXPERT

Hello,

We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments.

To confirm exactly what you need, we would like to see another photo of the metal pulley clip from a more direct angle. We'll also need to confirm the number of balances that you need, with the minimum being two. Thank you!

Home Owner from Amarillo, TX
Feb 24, 2023 11:41 am
Hello, I need qty 6 that measure 29" overall length (the metal portion measures 27 3/4") and they each have 2730 stamped on the metal. I also need qty 2 that measure 17" overall length (16" for the metal) and these have 1530 stamped on the metal.

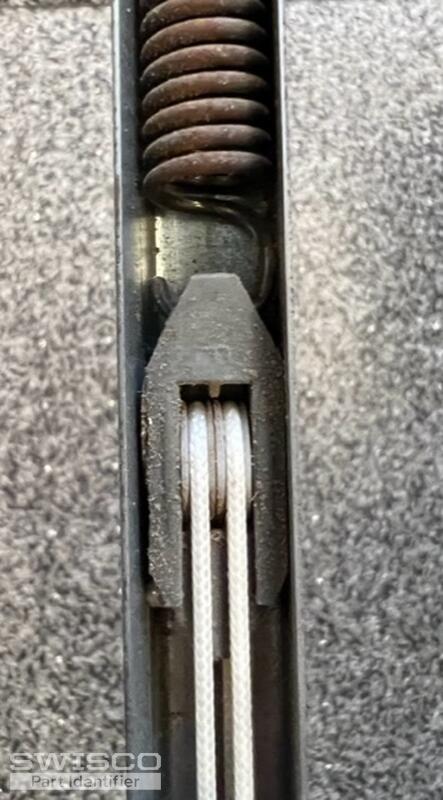

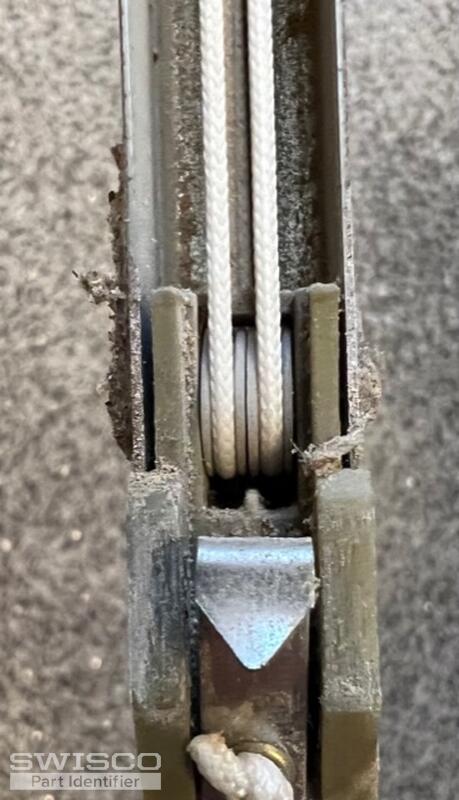

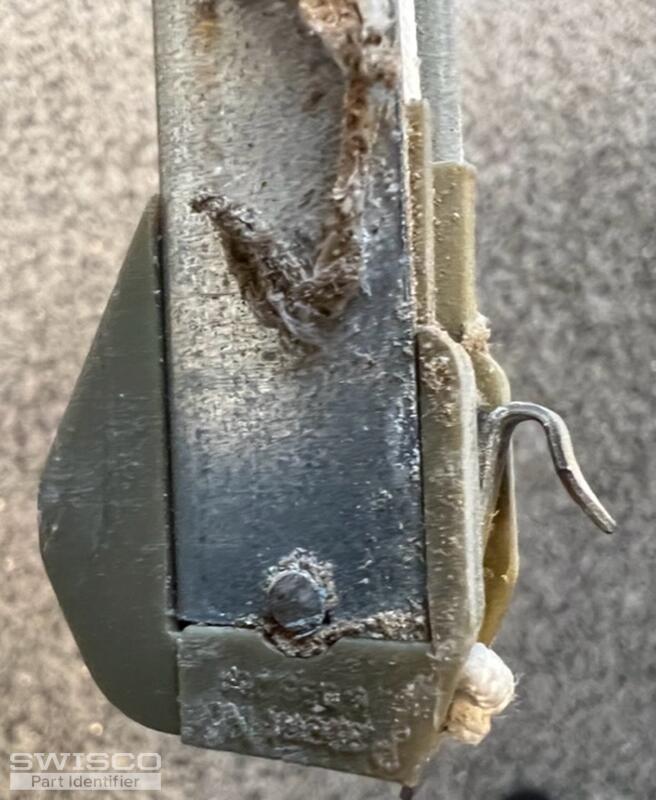

IMG_5776 IMG_5775 IMG_5774
3 user uploaded images
Casey
Casey from SWISCO
Feb 24, 2023 3:14 pm
SWISCO
EXPERT

Thanks for getting back to us. We're ready to send you an order link for your 2730 balances but the shorter 1530 balances should measure 15-7/8" long if they are the same type of balance. I would recommend double-checking your length measurement. Also, feel free to send us photos of the shorter balance removed from the window, including both end fittings, to confirm the correct replacement.

Home Owner from Amarillo, TX
Feb 24, 2023 5:18 pm

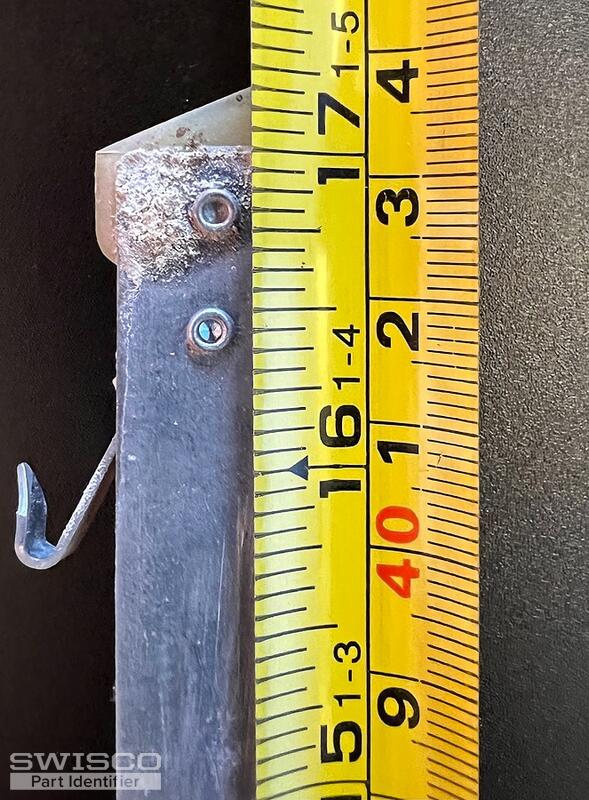

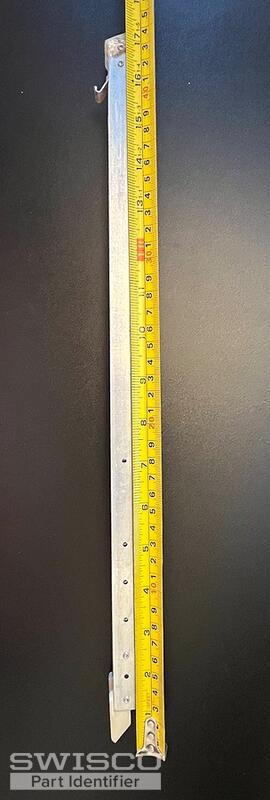

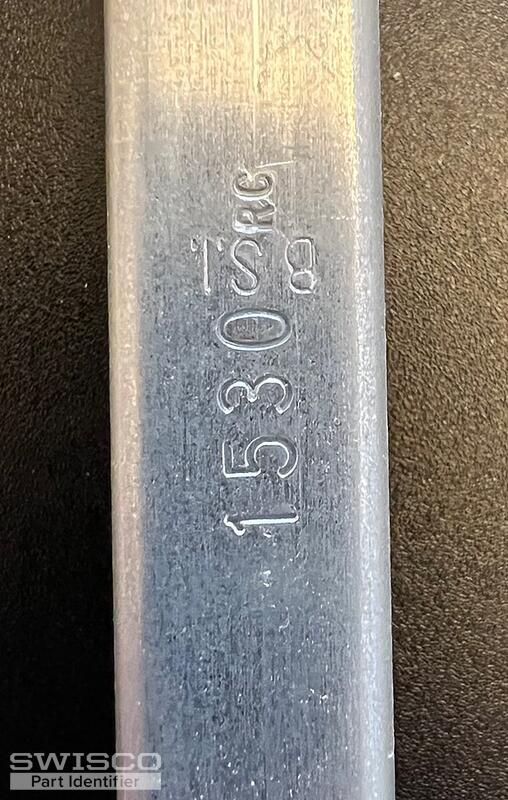

69BBA9A4-9076-47ED-8544-8F1F29DB157B AFFA85A4-21D8-4F2A-9180-F49EE4E37DA5 91E05DA4-9EEC-4A58-A019-45A84CF42146 30FF0D71-B52E-44F6-8D56-4FA638E43484
4 user uploaded images
Casey
Casey from SWISCO
Feb 27, 2023 10:50 am
SWISCO
EXPERT

We just sent over an order link and price quote for six of the 2730 balances you requested. As for your smaller 1530 balances, it doesn't look like they are the same custom extended-travel balances. It's tough to be sure since part of the shoe is covered by the tape measure but I would recommend comparing the S395-16 (1530) stock channel balance to yours. Take a look and feel free to get back to us if you notice any discrepancies. Thank you!
