2730 Window Balance

A quick learner from Payson, AZ 85541 says:
Hello, The window balance measures 28" long & 9/16" wide. I would like to order 2 replacements or, if possible, just the clip that connects the balance to the window frame.

Thanks,
Ray
Thumbnail of the uploaded file named IMG_1193.JPG
Thumbnail of the uploaded file named IMG_1194.JPG
Thumbnail of the uploaded file named IMG_1195.JPG

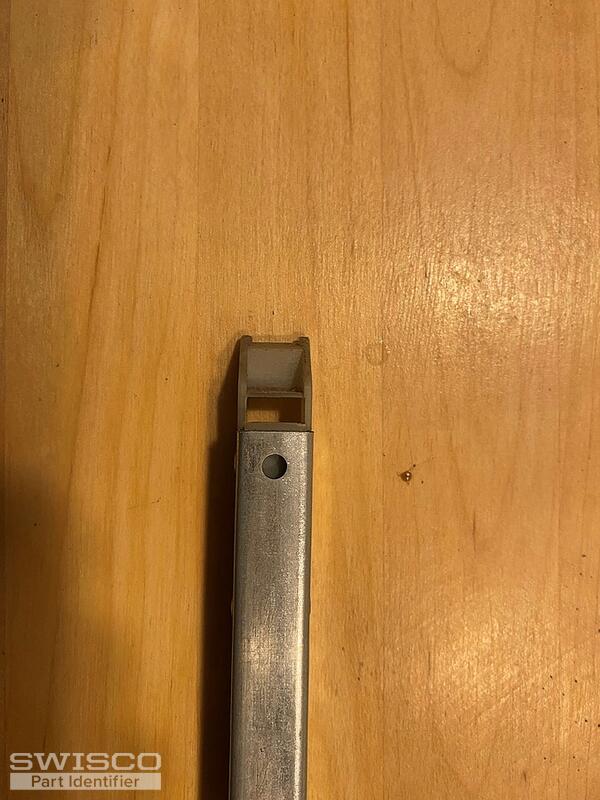

Thumbnail of the uploaded file named IMG_1196.JPG

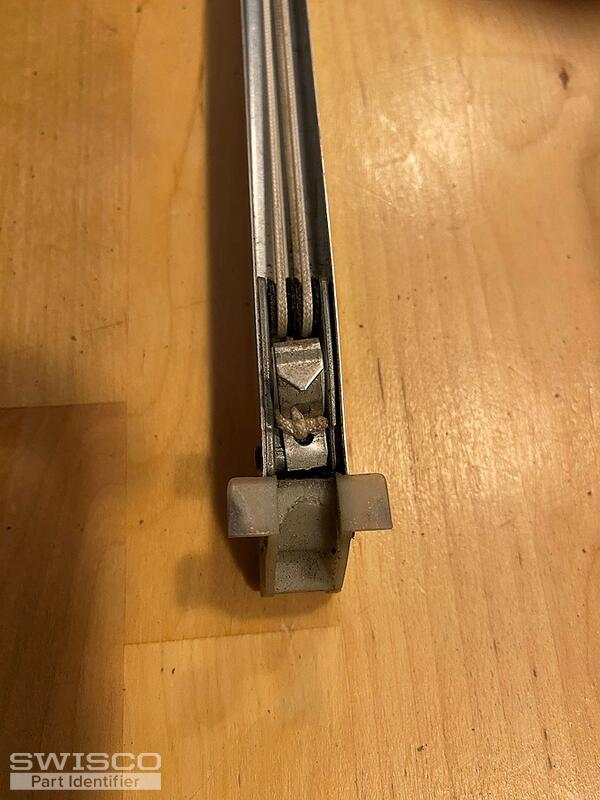

Thumbnail of the uploaded file named IMG_1197.JPG
Profile picture of Jasmine
Jasmine from SWISCO responded:

Hi Ray,

Thanks for reaching out! The hook on the bottom of the balance is not sold separately, unfortunately. So you wil need to replace the entire balance.

Your balances could be either the S380-28 with a 1" shoe or the S385-28 with a 1-3/32" shoe.

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Although, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

You'll need to select the 2730 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
