31-5 KF5 CMC 54

A home owner from Az says:
Can you identify this for me?
Thank you
Thumbnail of the uploaded file named 20231031_092822.jpg
Thumbnail of the uploaded file named 20231031_092811.jpg
Thumbnail of the uploaded file named 20231031_092807.jpg

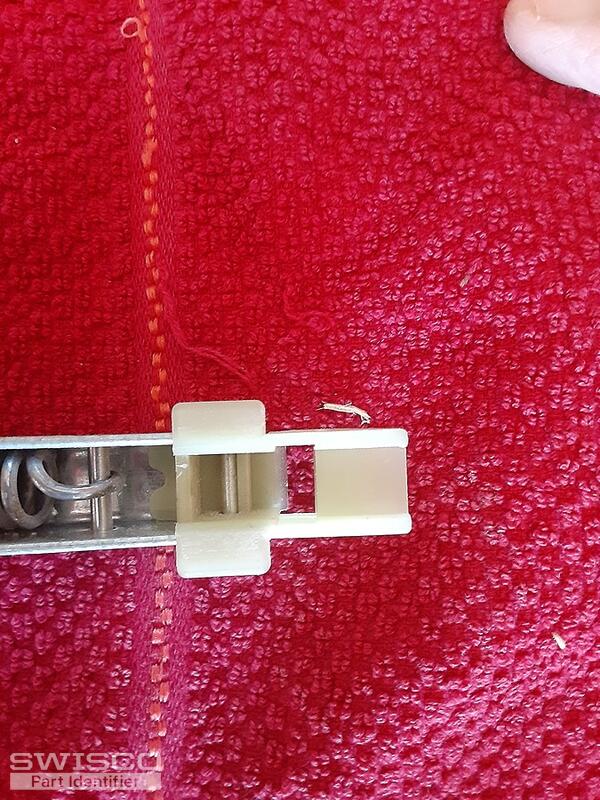

Thumbnail of the uploaded file named 20231031_092751.jpg

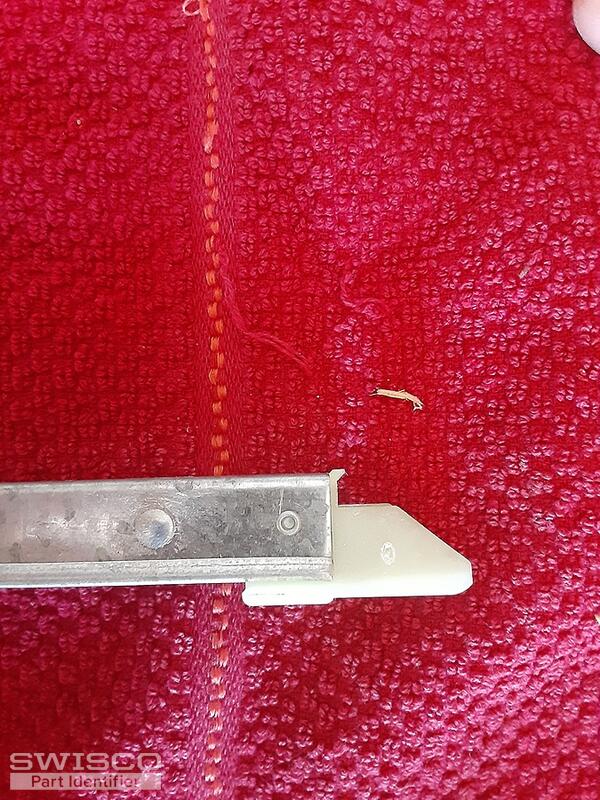

Thumbnail of the uploaded file named 20231031_092746.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Hey there,

Thanks for reaching out! Your balances are either the S380-32 with a 1" shoe or the S385-32 with a 1-3/32" shoe. Although, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

You'll need to select the 3150 Stamp option.

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
