#7 coil spring replacement

Home Owner from Glen Allen, Va
May 25, 2024 12:05 pm
Hello,

I'm searching for a pair of #7 coil springs. For a kitchen tilt window.

There are about 15 coils. It's marked #7. Looks to be bronze.

I've looked at your selection, only they don't state # coils.

Thoughts and feedback appreciated.

Thank you
Chuck
20240525_114103 20240525_114050
2 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
May 26, 2024 8:30 pm
SWISCO
EXPERT

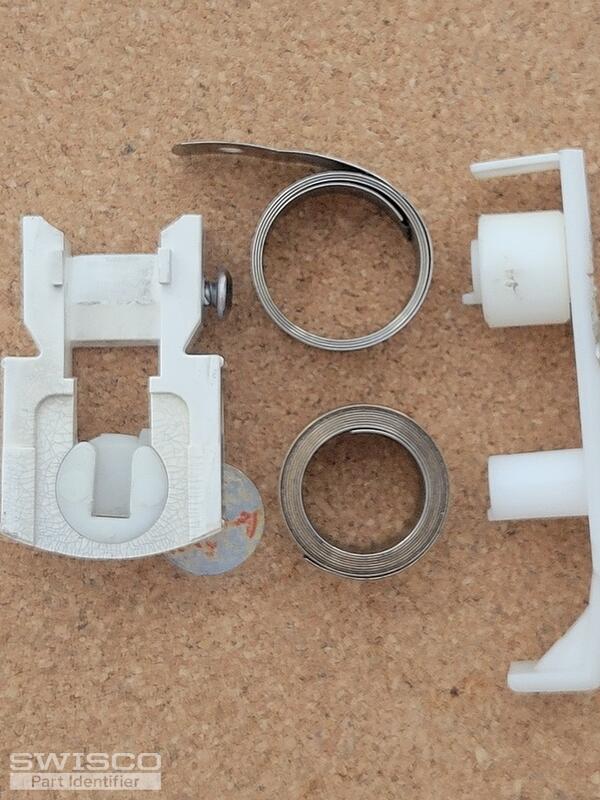

Hey Chuck. This looks like a 15-180 Pivot Shoe, which uses Series 190 Coil Balances. A coil stamped 7 suggests you need the S190-740 7 pound coil. If your old housing is undamaged you can reuse it; otherwise, see the 14-181 Double Clip and 15-182 Bushings. Let me know if you have further questions.

+ Add a Comment
