8-32 x 3/8 "shoulder screw" Flat Head Phillips with wide rounded bulge under head

Purchasing Agent from Greenboro NC
I need this screw for windows in one of our High Schools.

Thanks
Steve W.
User submitted a photo of window hardware.
3 Replies
Purchasing Agent from Greenboro NC
See attached pics. I need this special screw.

Thanks

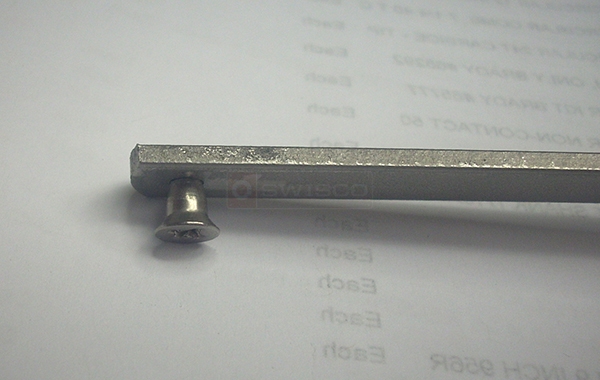

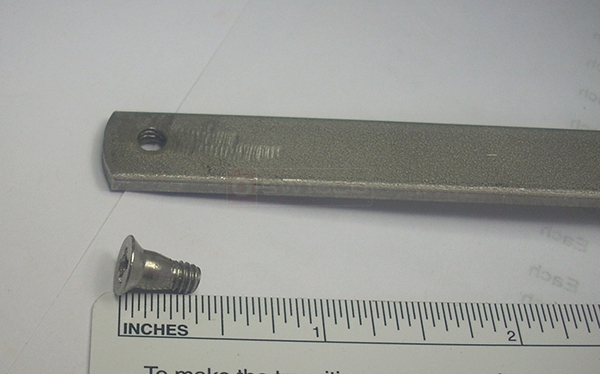

User submitted photos of window hardware.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert
A shoulder screw with an 8-32 thread count is very unusual. What you could do is to use our 33-105 flat head screw (which has a 8-32 thread and is 3/8" long) along with a nylon tube. Check hardware stores in your area for a nylon tube with the proper diameter and cut it to length to make up the shoulder you need.
